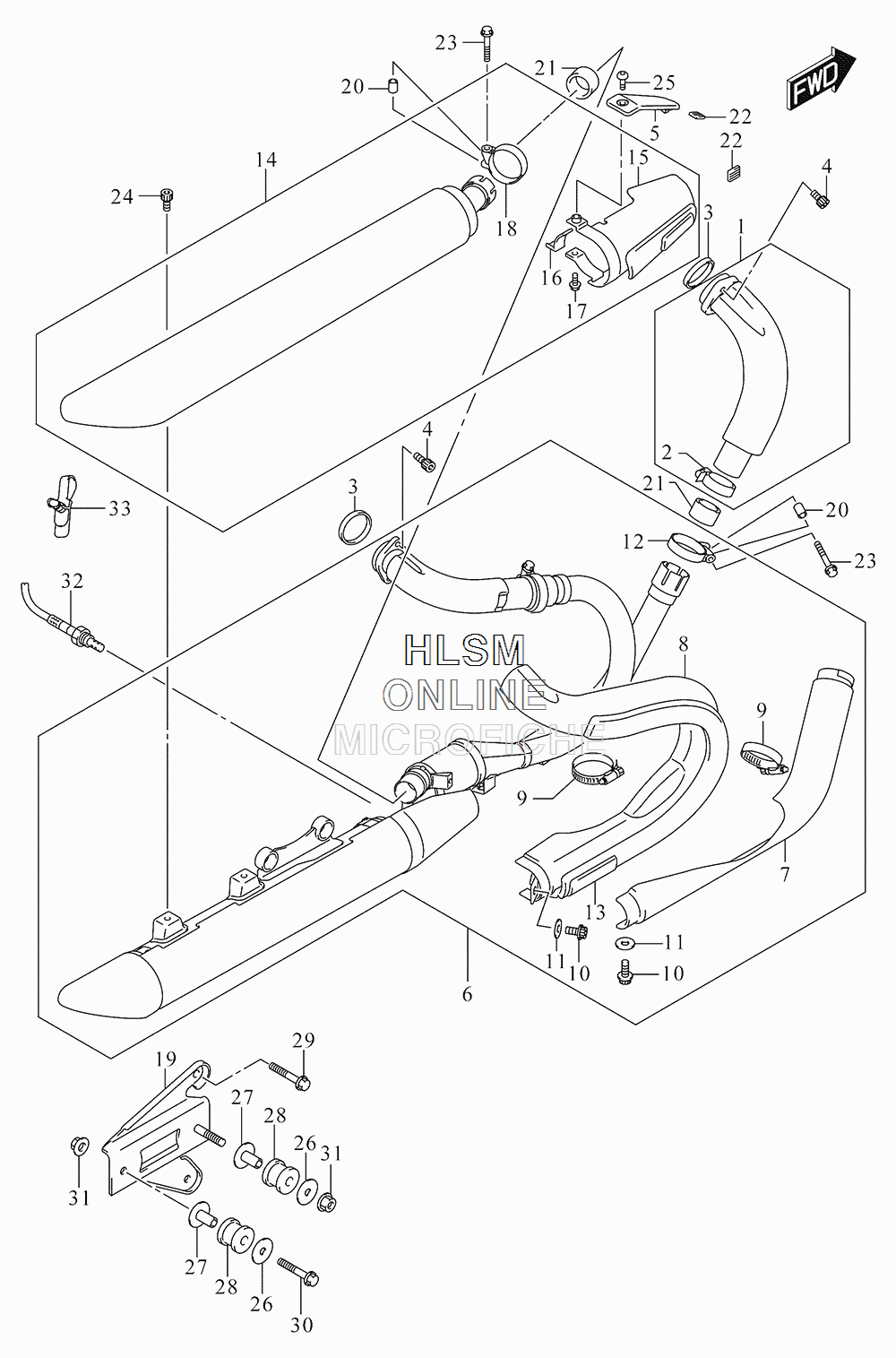

MUFFLER для Suzuki VZ1500 L5 BOULEVARD M90 - 2015 года выпуска
-
№АртикулНазвание
-
114150-40H00 PIPE, EXHAUST FRPIPE, EXHAUST FR
-
209402-45503 CLAMPCLAMP
-
314181-31D00 GASKET, EXHAUST PIPEGASKET, EXHAUST PIPE
-
409106-08165 BOLT (8X25)BOLT (8X25)
-
514260-40H00 COVER, MUF REAR UPPERCOVER, MUF REAR UPPER
-
614305-40H20-H01 MUFFLER, FRMUFFLER, FR
-
714170-40H00 ...COVER, EXHAUST FR...COVER, EXHAUST FR
-
814180-40H00 ...COVER, EXHAUST RR...COVER, EXHAUST RR
-
909402-45504 ...CLAMP...CLAMP
-
1014451-40H00 ...BOLT...BOLT
-
1114176-40H00 ...SPACER...SPACER
-
1214459-40H00 ...CLAMP, CONNECTOR...CLAMP, CONNECTOR
-
1314780-48G01 ...PROTECTOR, FRONT...PROTECTOR, FRONT
-
1414340-40H20-H01 BODY, MUFFLER RRBODY, MUFFLER RR
-
1514398-40H00 ...COVER, MUFFLER...COVER, MUFFLER
-
1614399-40H00 ...CLAMP...CLAMP
-
1714451-40H00 ...BOLT...BOLT
-
1814459-40H00 ...CLAMP, CONNECTOR...CLAMP, CONNECTOR
-
1914410-40H00 BRACKETBRACKET
-
2014458-45G10 SPACERSPACER
-
2114771-40H00 CONNECTORCONNECTOR
-
2214795-10FA0 GROMMETGROMMET
-
2309103-08365 BOLT (8X35)BOLT (8X35)
-
2409106-08107 BOLT (8X20)BOLT (8X20)
-
2509139-06172 SCREW (6X10)SCREW (6X10)
-
2609160-08146 WASHER (8.5X33X1.5)WASHER (8.5X33X1.5)
-
2709180-08156 SPACER (8.6X12X27.1)SPACER (8.6X12X27.1)
-
2809320-12049 CUSHIONCUSHION
-
2901550-0816A BOLTBOLT
-
3001550-0845A BOLTBOLT
-
3108361-2508A NUTNUT
-
3218213-48G00 SENSOR, OXYGENSENSOR, OXYGEN
-
3309407-05403 CLAMP (L:88)CLAMP (L:88)
