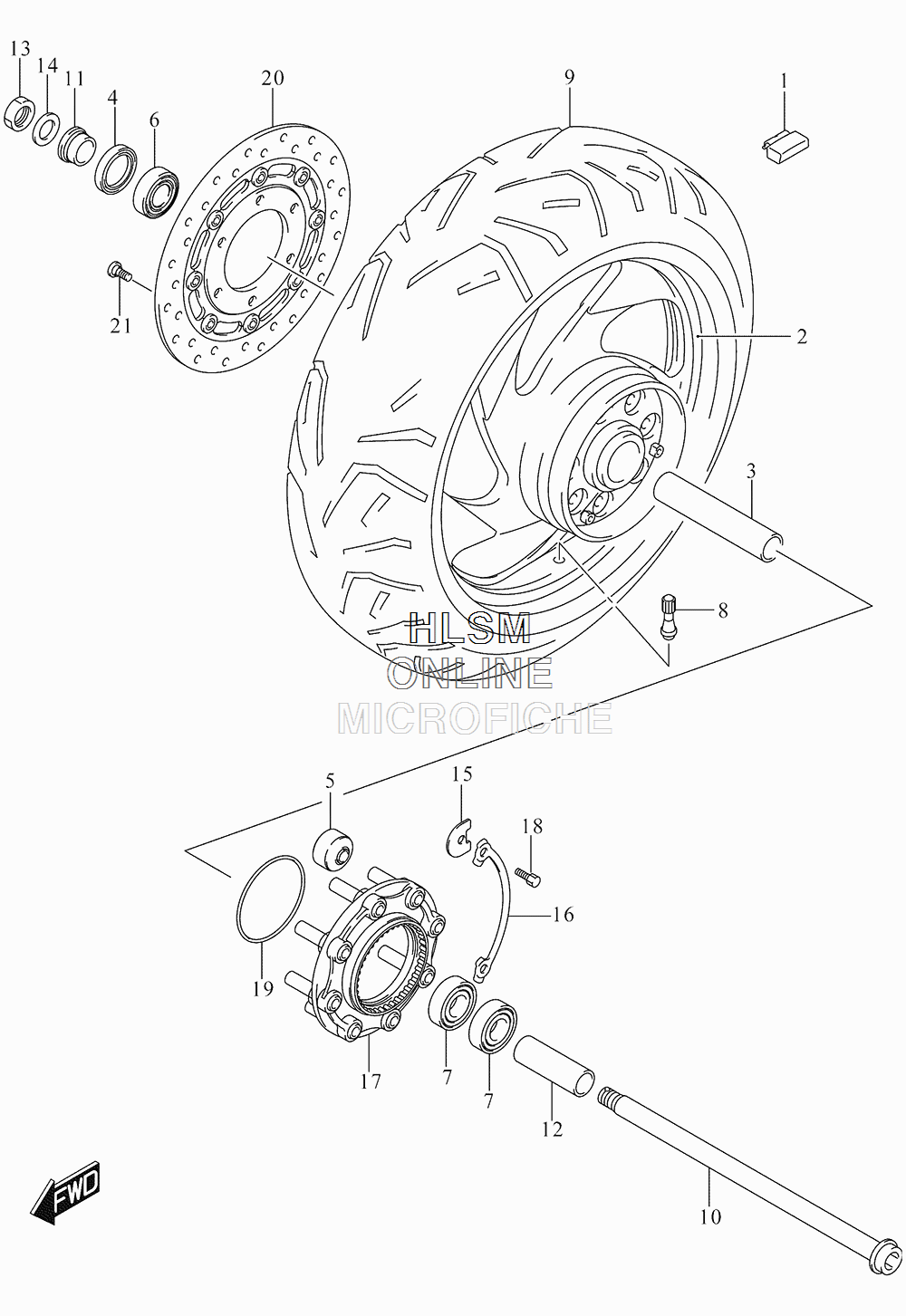

WHEEL - REAR для Suzuki VZ1500 L5 BOULEVARD M90 - 2015 года выпуска
-
№АртикулНазвание
-
155411-22H00 BALANCER, WHEEL NO.1 (10G)BALANCER, WHEEL NO.1 (10G)
-
155412-22H00 BALANCER, WHEEL NO.2 (20G)BALANCER, WHEEL NO.2 (20G)
-
155413-22H00 BALANCER, WHEEL NO.3 (30G)BALANCER, WHEEL NO.3 (30G)
-
264111-40H00-019 WHEEL, REAR (17M/CXMT6.00) (BLACK)WHEEL, REAR (17M/CXMT6.00) (BLACK)
-
364731-40H00 SPACER, REAR WHEEL BEARINGSPACER, REAR WHEEL BEARING
-
409285-32004 OIL SEAL (32X52X7)OIL SEAL (32X52X7)
-
509319-12019 BUSHBUSH
-
609262-25072 BEARING (25X52X15) (RIGHT HAND)BEARING (25X52X15) (RIGHT HAND)
-
708143-62057 BEARING (LEFT HAND)BEARING (LEFT HAND)
-
843130-24A00 VALVE ASSY, WHEEL RIM (TR412)VALVE ASSY, WHEEL RIM (TR412)
-
965110-40H00 TIRE, REAR (200/50ZR17M/C)TIRE, REAR (200/50ZR17M/C)
-
1064711-48G00 AXLE, REARAXLE, REAR
-
1164741-48G00 SPACER, REAR AXLE RIGHT HANDSPACER, REAR AXLE RIGHT HAND
-
1264772-48G00 SPACER, REAR AXLE LEFT HANDSPACER, REAR AXLE LEFT HAND
-
1309159-22007 NUTNUT
-
1409160-22081 WASHER (22X35X2)WASHER (22X35X2)
-
1564677-48G10 WASHER, THRUSTWASHER, THRUST
-
1664679-48G00 WASHER, REAR HUB DRIVENWASHER, REAR HUB DRIVEN
-
1764680-48G00 JOINT ASSY, REAR HUB DRJOINT ASSY, REAR HUB DR
-
1809119-06049 BOLT (6X16)BOLT (6X16)
-
1909280-80001 O RING (D:2.4,ID:79.8)O RING (D:2.4,ID:79.8)
-
2069210-10F60 DISC, REAR BRAKEDISC, REAR BRAKE
-
2109106-08160 BOLT (8X21)BOLT (8X21)
