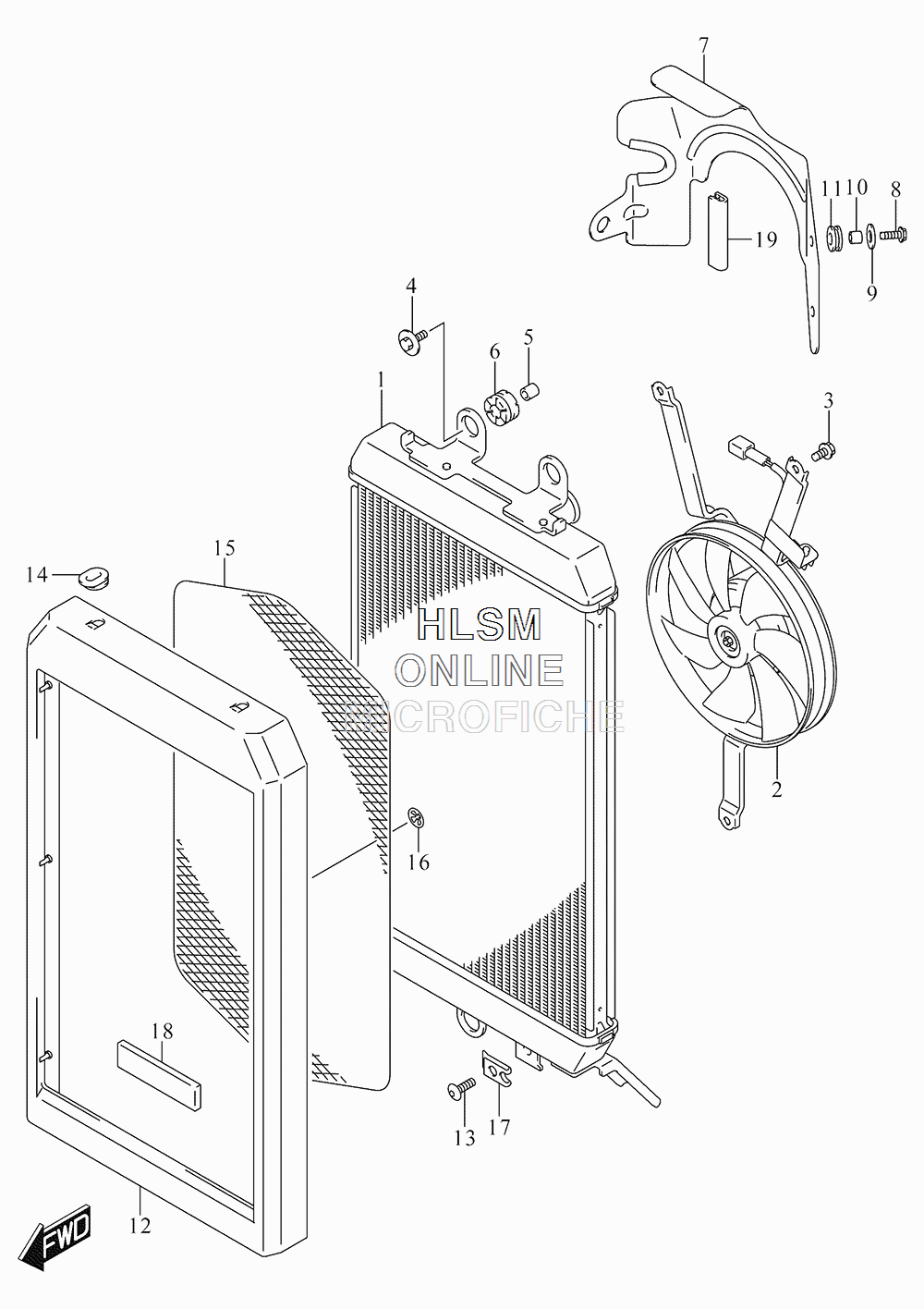

RADIATOR для Suzuki VZ1500 L5 BOULEVARD M90 - 2015 года выпуска
-
№АртикулНазвание
-
117710-40H10 RADIATOR ASSY, WATERRADIATOR ASSY, WATER
-
217800-40H00 FAN ASSY, RADIATORFAN ASSY, RADIATOR
-
317711-40H00 BOLTBOLT
-
409118-06097 BOLT (6X25)BOLT (6X25)
-
509180-06290 SPACER (6.5X10X12)SPACER (6.5X10X12)
-
609320-10051 CUSHIONCUSHION
-
717771-40H10 SHIELD, RADIATOR HEATSHIELD, RADIATOR HEAT
-
801547-0616B BOLTBOLT
-
909160-06152 WASHER (6.5X20X1.2)WASHER (6.5X20X1.2)
-
1009180-06001 SPACER (6.2X8.3X5.7)SPACER (6.2X8.3X5.7)
-
1109320-08066 CUSHIONCUSHION
-
1217760-40H00 COVER, RADIATOR NO.1COVER, RADIATOR NO.1
-
1309139-06039 SCREW (6X16)SCREW (6X16)
-
1409320-03004 CUSHIONCUSHION
-
1517765-40H00 NET, RADIATOR COVERNET, RADIATOR COVER
-
1609148-03010 NUTNUT
-
1709148-06021 NUTNUT
-
1892141-43EU0 CUSHIONCUSHION
-
1917762-18H00 MOLDINGMOLDING
