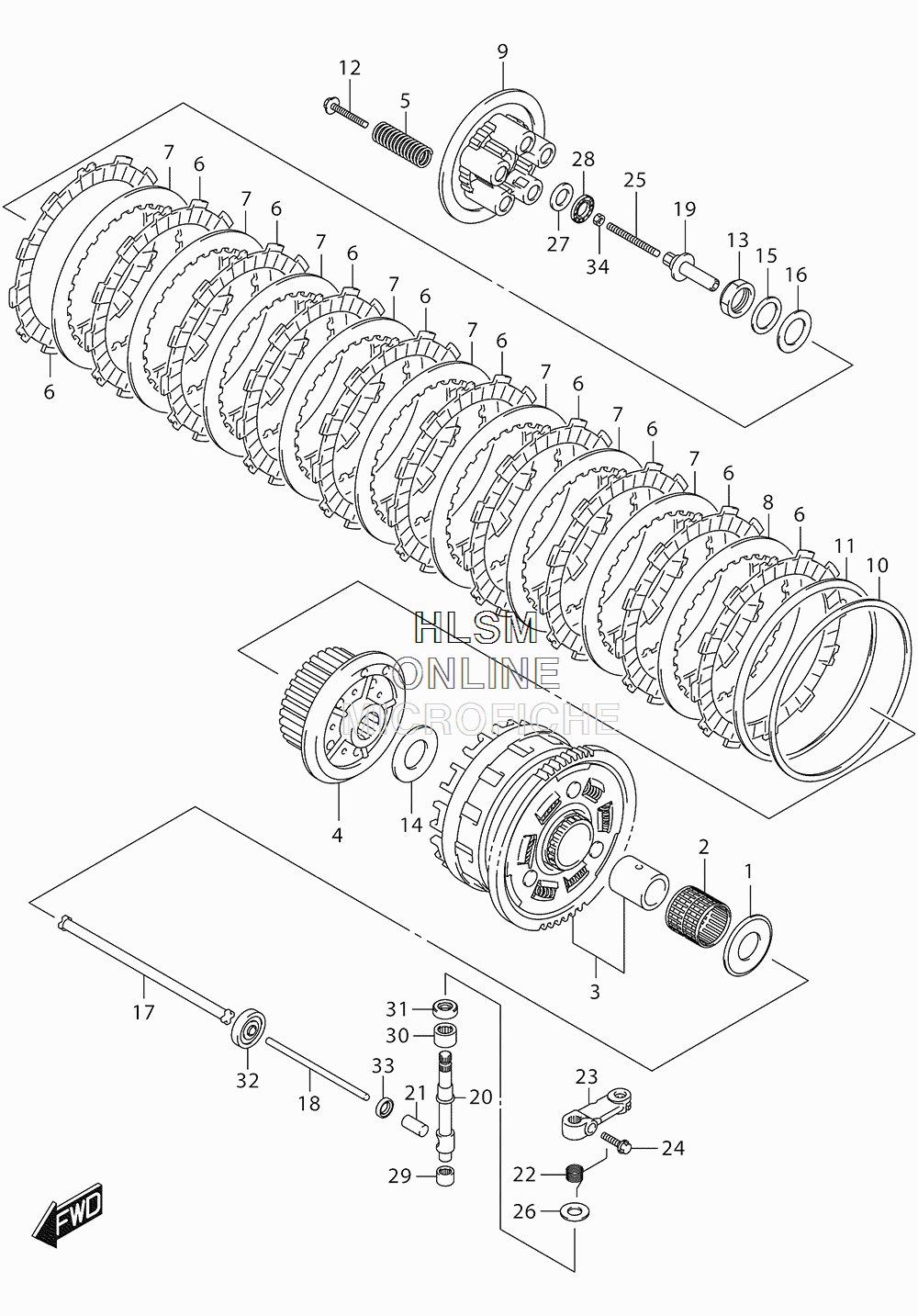

CLUTCH для Suzuki GSX-S1000 L6 ABS - 2016 года выпуска
-
№АртикулНазвание
-
109160-25073 WASHER (25X54X2.4)WASHER (25X54X2.4)
-
209263-35017 BEARING (35X40X35.8)BEARING (35X40X35.8)
-
321200-40880 GEAR ASSY, PRIMARY DRIVEN (NT:73)GEAR ASSY, PRIMARY DRIVEN (NT:73)
-
421410-40F01 HUB, CLUTCH SLEEVEHUB, CLUTCH SLEEVE
-
521413-04K00 SPRING, CLUTCHSPRING, CLUTCH
-
621441-40F20 PLATE, CLUTCH DRIVE (T:2.8)PLATE, CLUTCH DRIVE (T:2.8)
-
721451-40F00 PLATE, CLUTCH DRIVEN NO.1 (T:2.3)PLATE, CLUTCH DRIVEN NO.1 (T:2.3)
-
821451-40F30 PLATE, CLUTCH DRIVEN NO.4 (T:2.3)PLATE, CLUTCH DRIVEN NO.4 (T:2.3)
-
921462-40F00 DISC, CLUTCH PRESSUREDISC, CLUTCH PRESSURE
-
1021471-40F00 SEAT, WAVE WASHERSEAT, WAVE WASHER
-
1121472-40F00 WASHER, CLUTCH PLATE WAVEWASHER, CLUTCH PLATE WAVE
-
1221412-04K00 BOLT, CLUTCH SPRINGBOLT, CLUTCH SPRING
-
1309159-24010 NUTNUT
-
1409160-25056 WASHER (25X50X2.5)WASHER (25X50X2.5)
-
1509164-24008 WASHERWASHER
-
1609181-25223 SHIM (25X38X1)SHIM (25X38X1)
-
1723110-38B00 ROD, CLUTCH PUSH RHROD, CLUTCH PUSH RH
-
1823111-05A01 ROD, CLUTCH PUSH LHROD, CLUTCH PUSH LH
-
1923121-41G00 PIECE, CLUTCH PUSHPIECE, CLUTCH PUSH
-
2023122-41G00 CAMSHAFT, CLUTCH RELEASECAMSHAFT, CLUTCH RELEASE
-
2123123-41G00 CAP, CLUTCH PUSH RODCAP, CLUTCH PUSH ROD
-
2223125-41G00 SPRING, CLUTCH RELEASE RETURNSPRING, CLUTCH RELEASE RETURN
-
2323271-41G00 ARM, CLUTCH RELEASEARM, CLUTCH RELEASE
-
2409103-06223 BOLT (6X20)BOLT (6X20)
-
2509134-06015 SCREW (6X73)SCREW (6X73)
-
2609160-10020 WASHER (10.5X24X1)WASHER (10.5X24X1)
-
2709160-15045 WASHER (15.5X28X1)WASHER (15.5X28X1)
-
2809263-15003 BEARING (15X28X2)BEARING (15X28X2)
-
2909263-10014 BEARING (10X14X10)BEARING (10X14X10)
-
3009263-12027 BEARING (12X18X12)BEARING (12X18X12)
-
3109282-10012 OIL SEAL (10X20X6)OIL SEAL (10X20X6)
-
3209283-06010 OIL SEAL (6X34X10.5)OIL SEAL (6X34X10.5)
-
3309285-10004 OIL SEAL (10X17X5)OIL SEAL (10X17X5)
-
3408310-0006A NUTNUT
