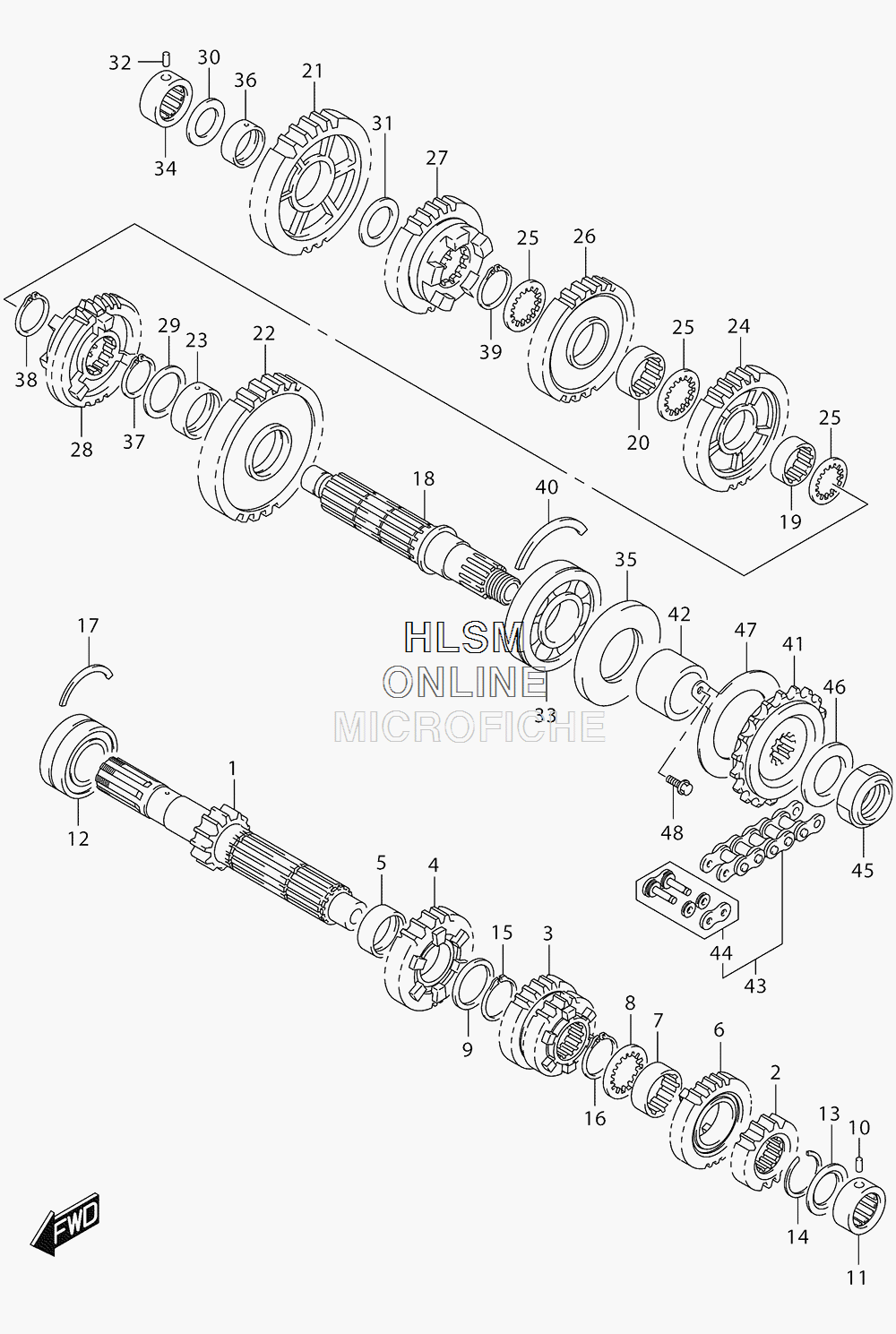

TRANSMISSION для Suzuki GSX-S1000 L6 ABS - 2016 года выпуска
-
№АртикулНазвание
-
124120-40F30 SHAFT, CNTR (NT:16)SHAFT, CNTR (NT:16)
-
224221-40F30 GEAR, 2ND DRIVE (NT:19)GEAR, 2ND DRIVE (NT:19)
-
324231-40F40 GEAR, 3RD AND 4TH DRIVE (NT:21/24)GEAR, 3RD AND 4TH DRIVE (NT:21/24)
-
424251-40F40 GEAR, 5TH DRIVE (NT:25)GEAR, 5TH DRIVE (NT:25)
-
524252-35F00 BUSH, 5TH DRIVE GEARBUSH, 5TH DRIVE GEAR
-
624261-40F30 GEAR, 6TH DRIVE (NT:26)GEAR, 6TH DRIVE (NT:26)
-
724262-35F10 BUSH, 6TH DRIVE GEARBUSH, 6TH DRIVE GEAR
-
809167-27003 LOCK WASHERLOCK WASHER
-
909181-27014 SHIM (27X36X2.5)SHIM (27X36X2.5)
-
1009261-06003 PIN (6X10)PIN (6X10)
-
1109263-20087 BEARING (20X34X13.5)BEARING (20X34X13.5)
-
1209267-25013 BEARING (25X52X20.6) (RH)BEARING (25X52X20.6) (RH)
-
1309285-20006 OIL SEAL (20X31.2X2.7)OIL SEAL (20X31.2X2.7)
-
1409380-27004 CIRCLIPCIRCLIP
-
1509380-27006 CIRCLIPCIRCLIP
-
1609380-27006 CIRCLIPCIRCLIP
-
1709390-58001 C RINGC RING
-
1824131-40F10 SHAFT, DRIVESHAFT, DRIVE
-
1924332-46H00 BUSH, 3RD DRIVEN GEARBUSH, 3RD DRIVEN GEAR
-
2024332-46H00 BUSH, 4TH DRIVEN GEARBUSH, 4TH DRIVEN GEAR
-
2124311-40F30 GEAR, 1ST DRIVEN (NT:41)GEAR, 1ST DRIVEN (NT:41)
-
2224321-40F40 GEAR, 2ND DRIVEN (NT:39)GEAR, 2ND DRIVEN (NT:39)
-
2324322-02F01 BUSH, 2ND DRIVEN GEARBUSH, 2ND DRIVEN GEAR
-
2424331-40F30 GEAR, 3RD DRIVEN (NT:36)GEAR, 3RD DRIVEN (NT:36)
-
2524333-02F00 WASHER, 3RD AND 4TH DRIVEN GEARWASHER, 3RD AND 4TH DRIVEN GEAR
-
2624341-40F20 GEAR, 4TH DRIVEN (NT:36)GEAR, 4TH DRIVEN (NT:36)
-
2724351-40F40 GEAR, 5TH DRIVEN (NT:34)GEAR, 5TH DRIVEN (NT:34)
-
2824361-40F30 GEAR, 6TH DRIVEN (NT:33)GEAR, 6TH DRIVEN (NT:33)
-
2909160-27008 WASHER (27X36X1)WASHER (27X36X1)
-
3009181-20251 SHIM (20X34X1)SHIM (20X34X1)
-
3109181-22223 SHIM (22X34X1)SHIM (22X34X1)
-
3209261-06003 PIN (6X10)PIN (6X10)
-
3309262-28025 BEARING (28X70X18) (LH)BEARING (28X70X18) (LH)
-
3409263-20087 BEARING (20X34X13.5) (RH)BEARING (20X34X13.5) (RH)
-
3509283-36008 OIL SEAL (34.8X70X6)OIL SEAL (34.8X70X6)
-
3609263-22068 BEARING (22X26X11)BEARING (22X26X11)
-
3709380-27006 CIRCLIPCIRCLIP
-
3809380-27006 CIRCLIPCIRCLIP
-
3909380-27006 CIRCLIPCIRCLIP
-
4009390-70001 C RINGC RING
-
4127510-20A40 SPROCKET, ENGINE (NT:17)SPROCKET, ENGINE (NT:17)
-
4227531-04K00 SPACER, ENGINE SPROCKETSPACER, ENGINE SPROCKET
-
4327600-33E50-116 CHAIN ASSY, DRIVE (RK525GSH)CHAIN ASSY, DRIVE (RK525GSH)
-
4427620-33E50 ...JOINT SET, DRIVE CHAIN...JOINT SET, DRIVE CHAIN
-
4509159-20004 NUTNUT
-
4609160-25066 WASHER (25X38X2.5)WASHER (25X38X2.5)
-
4724751-04K00 RETAINER, DRIVE SHAFT OIL SEALRETAINER, DRIVE SHAFT OIL SEAL
-
4809103-06236 BOLT (6X12)BOLT (6X12)
