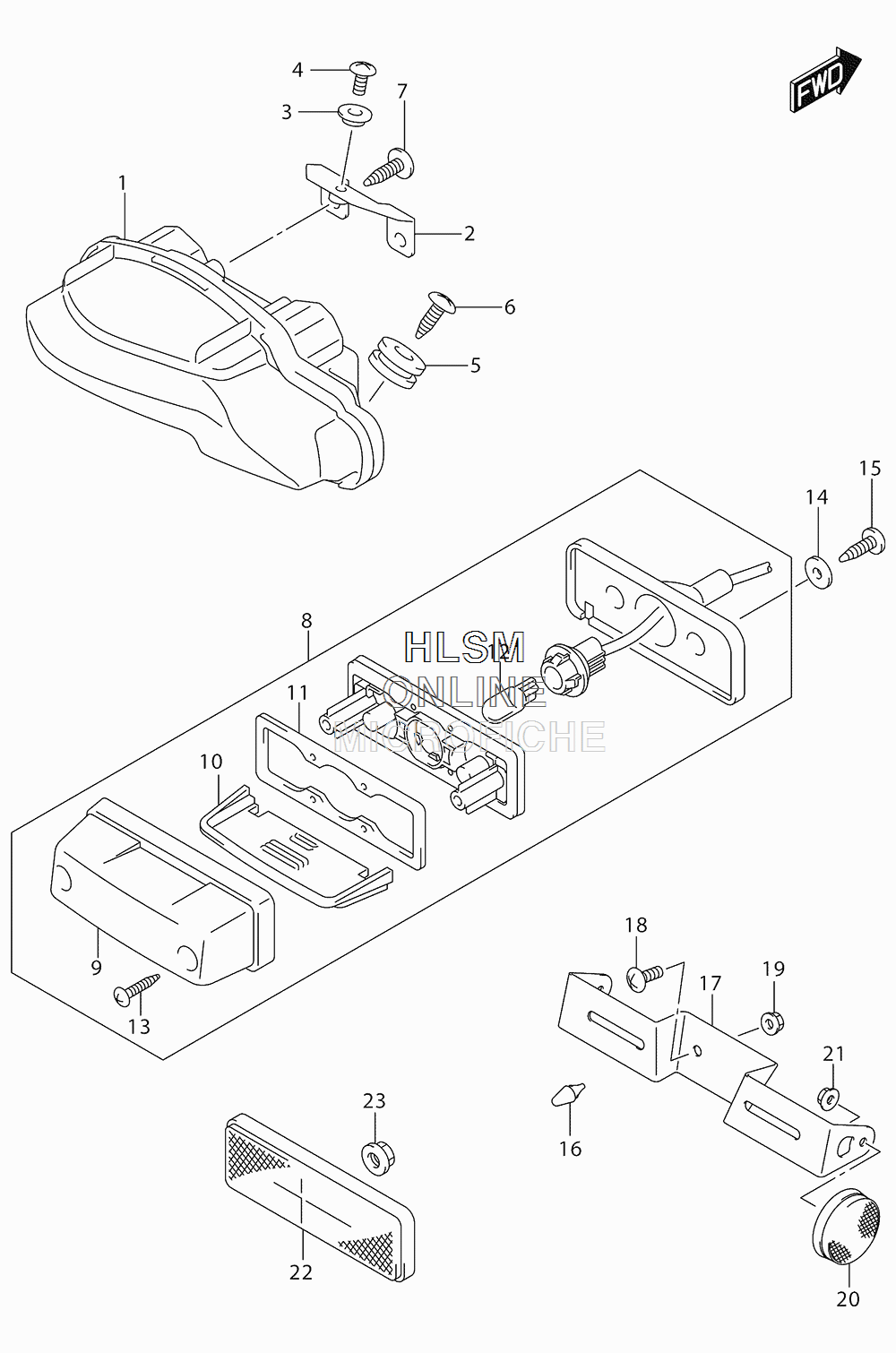

TAILLIGHT/TURN SIGNAL ASSY. для Suzuki GSX-S1000 L6 ABS - 2016 года выпуска
-
№АртикулНазвание
-
135710-04K01 LAMP ASSY, REAR COMBINATIONLAMP ASSY, REAR COMBINATION
-
235726-04K00 BRACKET, REAR COMBINATION LAMPBRACKET, REAR COMBINATION LAMP
-
309169-06071 WASHERWASHER
-
402142-0612A SCREWSCREW
-
509320-10054 CUSHIONCUSHION
-
603541-0616B SCREWSCREW
-
703541-0516A SCREWSCREW
-
835910-16G90 LAMP ASSY, LICENSELAMP ASSY, LICENSE
-
935917-16G00 ...COVER...COVER
-
1035912-16G01 ...LENS...LENS
-
1135913-16G00 ...GASKET...GASKET
-
1209471-12216 ...BULB (12V5W)...BULB (12V5W)
-
1303211-0416A ...SCREW...SCREW
-
1409160-05501 WASHER (5.5X20X1.2)WASHER (5.5X20X1.2)
-
1503541-0540A SCREWSCREW
-
1609321-06028 CUSHIONCUSHION
-
1735927-44H30 BRACKET, LICENSE PLATEBRACKET, LICENSE PLATE
-
1802142-0616A SCREWSCREW
-
1909159-06096 NUTNUT
-
2035970-14A20 REFLECTOR ASSY, REAR SIDEREFLECTOR ASSY, REAR SIDE
-
2108316-1005A NUTNUT
-
2235970-07F01 REFLECTOR ASSY, REARREFLECTOR ASSY, REAR
-
2308316-1005A NUTNUT
