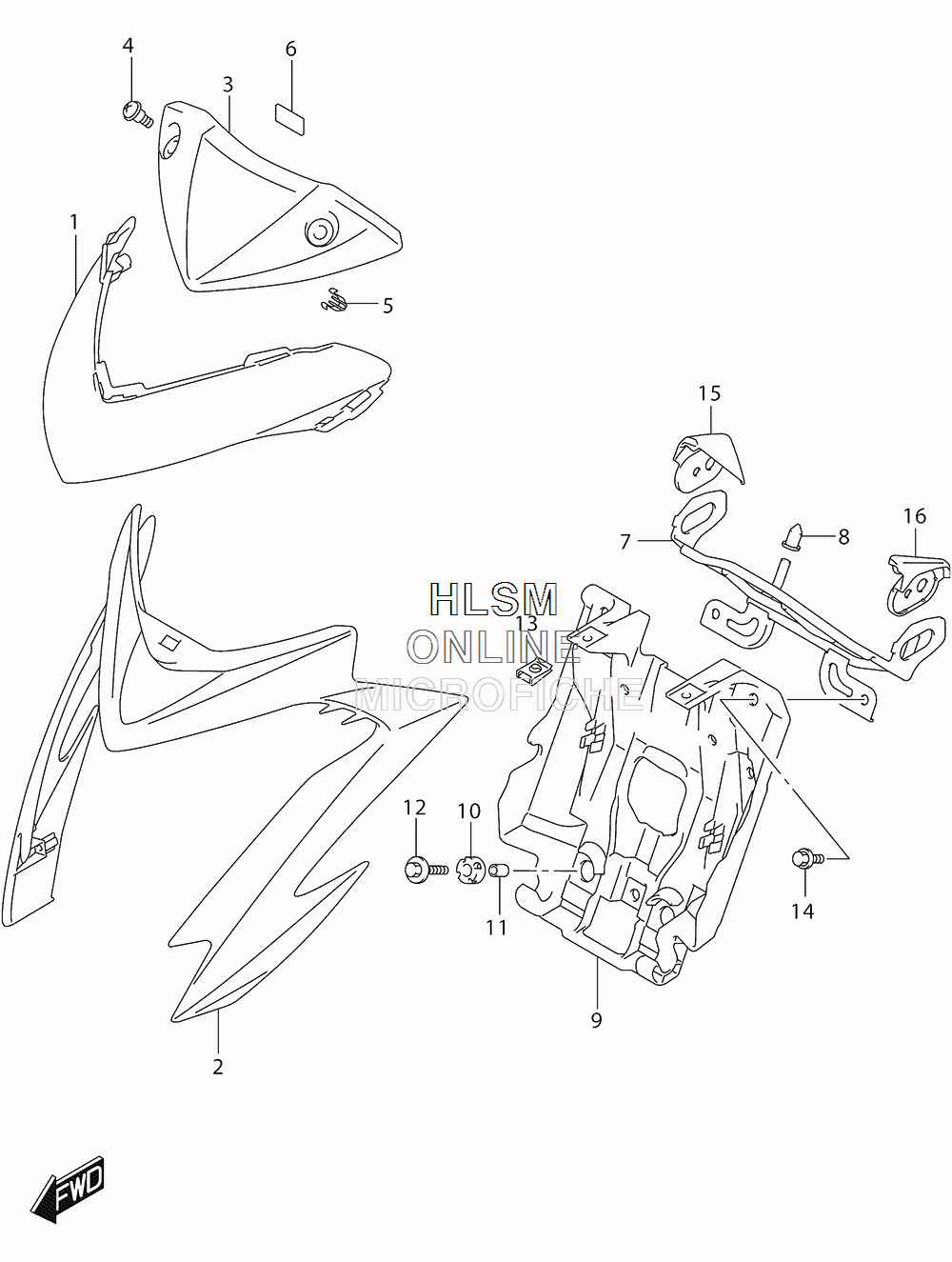

HEADLAMP HOUSING для Suzuki GSX-S1000 L6 ABS - 2016 года выпуска
-
№АртикулНазвание
-
151831-04K00-YKV COVER, HEADLAMP LOWER (BLACK)COVER, HEADLAMP LOWER (BLACK)
-
251821-04K00-PGZ COVER, HEADLAMP UPPER (GRAY) (FOR PGZ)COVER, HEADLAMP UPPER (GRAY) (FOR PGZ)
-
251821-04K00-YSF COVER, HEADLAMP UPPER (BLUE) (FOR YSF)COVER, HEADLAMP UPPER (BLUE) (FOR YSF)
-
251821-04K00-YYG COVER, HEADLAMP UPPER (RED) (FOR AV4)COVER, HEADLAMP UPPER (RED) (FOR AV4)
-
351811-04K00 COVER, METERCOVER, METER
-
409139-05503 SCREW (5X13)SCREW (5X13)
-
509409-08326 CLIPCLIP
-
633652-47F00 CUSHION, LICENSE PLATECUSHION, LICENSE PLATE
-
751850-04K00 BRACE, METERBRACE, METER
-
851831-30H00 CUSHION, BRACECUSHION, BRACE
-
951841-04K00 COVER, HEADLAMP REARCOVER, HEADLAMP REAR
-
1009320-09010 CUSHIONCUSHION
-
1109180-06307 SPACER (6.5X9X10)SPACER (6.5X9X10)
-
1209116-06131 BOLT (6X25)BOLT (6X25)
-
1309148-06020 NUTNUT
-
1409111-06107 BOLT (6X12)BOLT (6X12)
-
1551842-04K00 COVER, HEADLAMP REAR RHCOVER, HEADLAMP REAR RH
-
1651843-04K00 COVER, HEADLAMP REAR LHCOVER, HEADLAMP REAR LH
