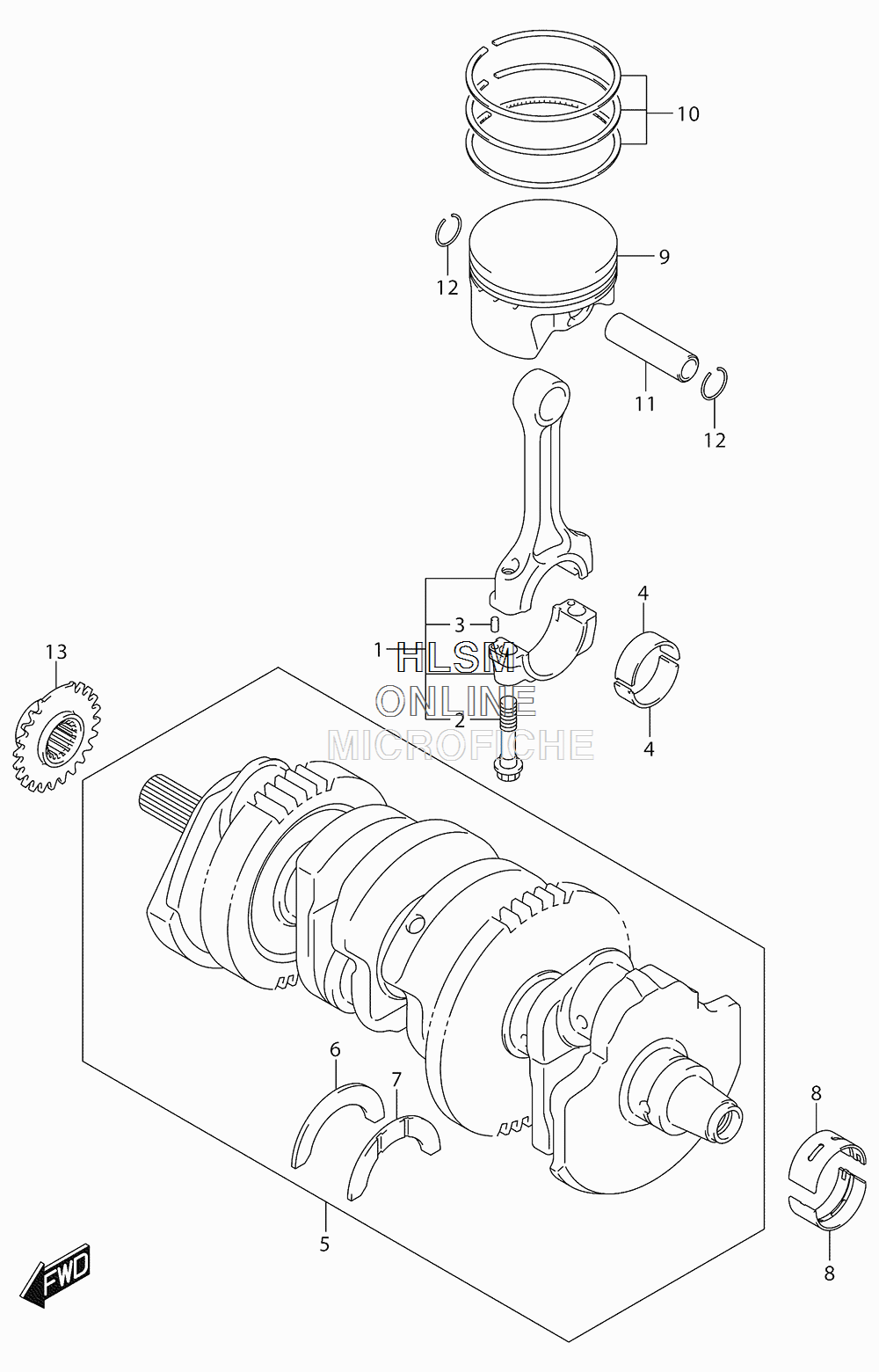

CRANKSHAFT W/ PISTON для Suzuki GSX-S1000 L6 ABS - 2016 года выпуска
-
№АртикулНазвание
-
112160-04K00 ROD ASSY, CONNECTINGROD ASSY, CONNECTING
-
212163-24F10 ...BOLT...BOLT
-
304221-04089 ...PIN...PIN
-
412164-47H10-0A0 BEARING, CRANK PIN (GREEN)BEARING, CRANK PIN (GREEN)
-
412164-47H10-0B0 BEARING, CRANK PIN (BLACK)BEARING, CRANK PIN (BLACK)
-
412164-47H10-0C0 BEARING, CRANK PIN (BROWN)BEARING, CRANK PIN (BROWN)
-
412164-47H10-0D0 BEARING, CRANK PIN (YELLOW)BEARING, CRANK PIN (YELLOW)
-
512000-48850 CRANKSHAFT SETCRANKSHAFT SET
-
612228-48B00-0E0 ...BEARING, THRUST RIGHT HAND (GREEN)...BEARING, THRUST RIGHT HAND (GREEN)
-
712228-48B00-0B0 ...BEARING, THRUST LEFT HAND (BROWN)...BEARING, THRUST LEFT HAND (BROWN)
-
712228-48B00-0C0 ...BEARING, THRUST LEFT HAND (RED)...BEARING, THRUST LEFT HAND (RED)
-
712228-48B00-0D0 ...BEARING, THRUST LEFT HAND (YELLOW)...BEARING, THRUST LEFT HAND (YELLOW)
-
712228-48B00-0E0 ...BEARING, THRUST LEFT HAND (GREEN)...BEARING, THRUST LEFT HAND (GREEN)
-
712228-48B00-0F0 ...BEARING, THRUST LEFT HAND (BLUE)...BEARING, THRUST LEFT HAND (BLUE)
-
712228-48B00-0G0 ...BEARING, THRUST LEFT HAND (ORANGE)...BEARING, THRUST LEFT HAND (ORANGE)
-
712228-48B00-0H0 ...BEARING, THRUST LEFT HAND (BLACK)...BEARING, THRUST LEFT HAND (BLACK)
-
812229-04K00-0A0 BEARING, CRANKSHAFT (GREEN)BEARING, CRANKSHAFT (GREEN)
-
812229-04K00-0B0 BEARING, CRANKSHAFT (BLACK)BEARING, CRANKSHAFT (BLACK)
-
812229-04K00-0C0 BEARING, CRANKSHAFT (BROWN)BEARING, CRANKSHAFT (BROWN)
-
812229-04K00-0D0 BEARING, CRANKSHAFT (YELLOW)BEARING, CRANKSHAFT (YELLOW)
-
812229-04K00-0E0 BEARING, CRANKSHAFT (BLUE)BEARING, CRANKSHAFT (BLUE)
-
912111-04K00-0F0 PISTONPISTON
-
1012140-04K00 RING SET, PISTONRING SET, PISTON
-
1112151-04K00 PIN, PISTONPIN, PISTON
-
1209381-16001 SNAP RINGSNAP RING
-
1312731-29G00 SPROCKET, CAM CHAIN (NT:17)SPROCKET, CAM CHAIN (NT:17)
