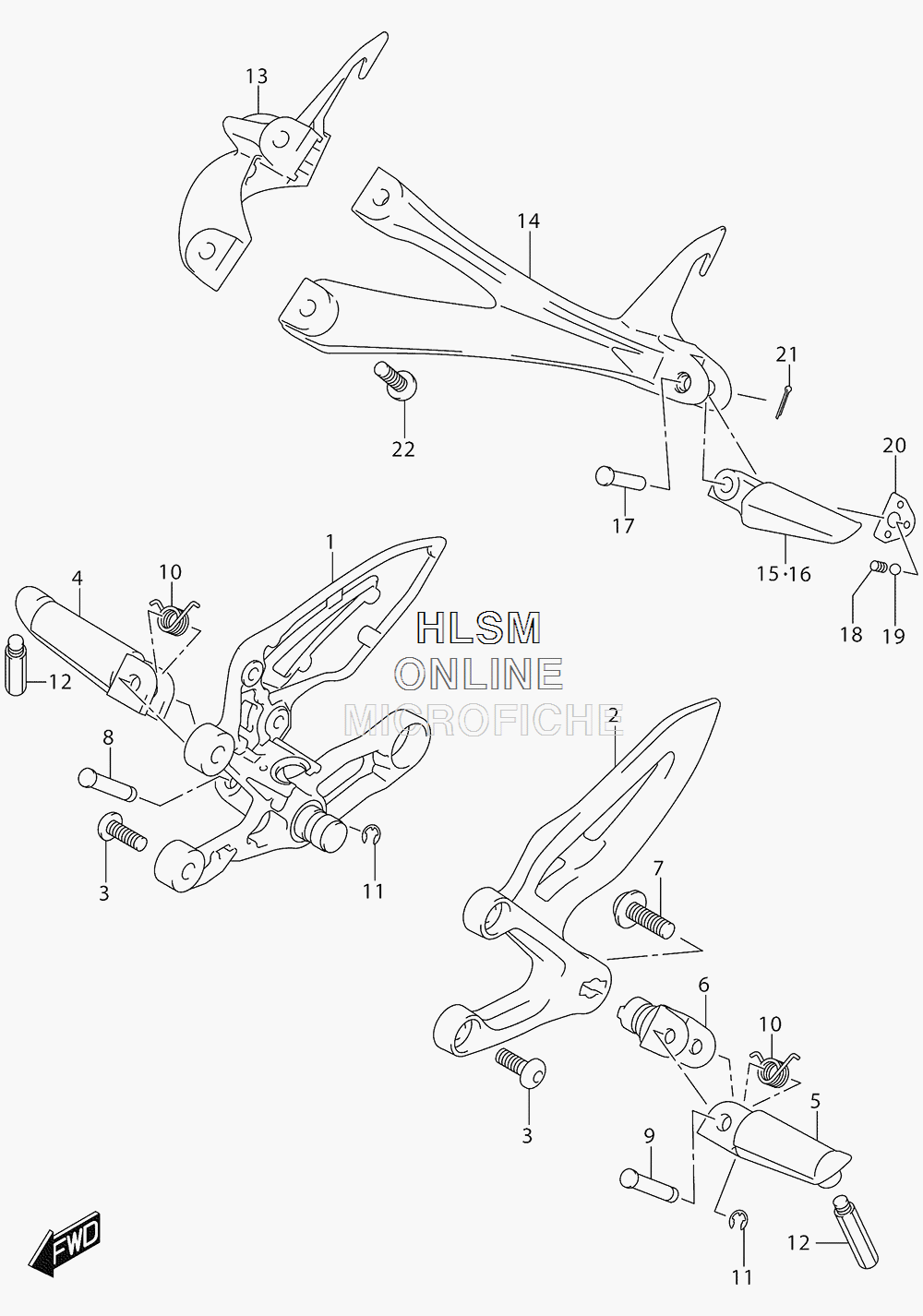

FOOTREST для Suzuki GSX-S1000 L6 ABS - 2016 года выпуска
-
№АртикулНазвание
-
143510-04K00 BRACKET, FRONT FOOTREST RHBRACKET, FRONT FOOTREST RH
-
243521-04K00 BRACKET, FRONT FOOTREST LHBRACKET, FRONT FOOTREST LH
-
309106-08181 BOLT (8X23)BOLT (8X23)
-
443516-35F10 BAR, FOOTREST RHBAR, FOOTREST RH
-
543526-35F10 BAR, FOOTREST LHBAR, FOOTREST LH
-
643530-16G00 HOLDER, FOOTREST LHHOLDER, FOOTREST LH
-
709106-10064 BOLT (10X28) (LH)BOLT (10X28) (LH)
-
809208-08019 PIN (RH)PIN (RH)
-
909208-08018 PIN (LH)PIN (LH)
-
1009448-14037 SPRINGSPRING
-
1108332-1106A E RINGE RING
-
1243576-48B30 BOLT, BANK SENSORBOLT, BANK SENSOR
-
1343811-04K00 BRACKET, PILLION FOOTREST RHBRACKET, PILLION FOOTREST RH
-
1443821-04K00 BRACKET, PILLION FOOTREST LHBRACKET, PILLION FOOTREST LH
-
1543611-37H00 BAR, PILLION FOOTREST RHBAR, PILLION FOOTREST RH
-
1643621-37H00 BAR, PILLION FOOTREST LHBAR, PILLION FOOTREST LH
-
1709200-08002 PINPIN
-
1809440-05003 SPRINGSPRING
-
1906111-07004 BALLBALL
-
2043816-01H20 PLATEPLATE
-
2104111-2015A PIN, COTTERPIN, COTTER
-
2209106-08186 BOLT (8X23)BOLT (8X23)
