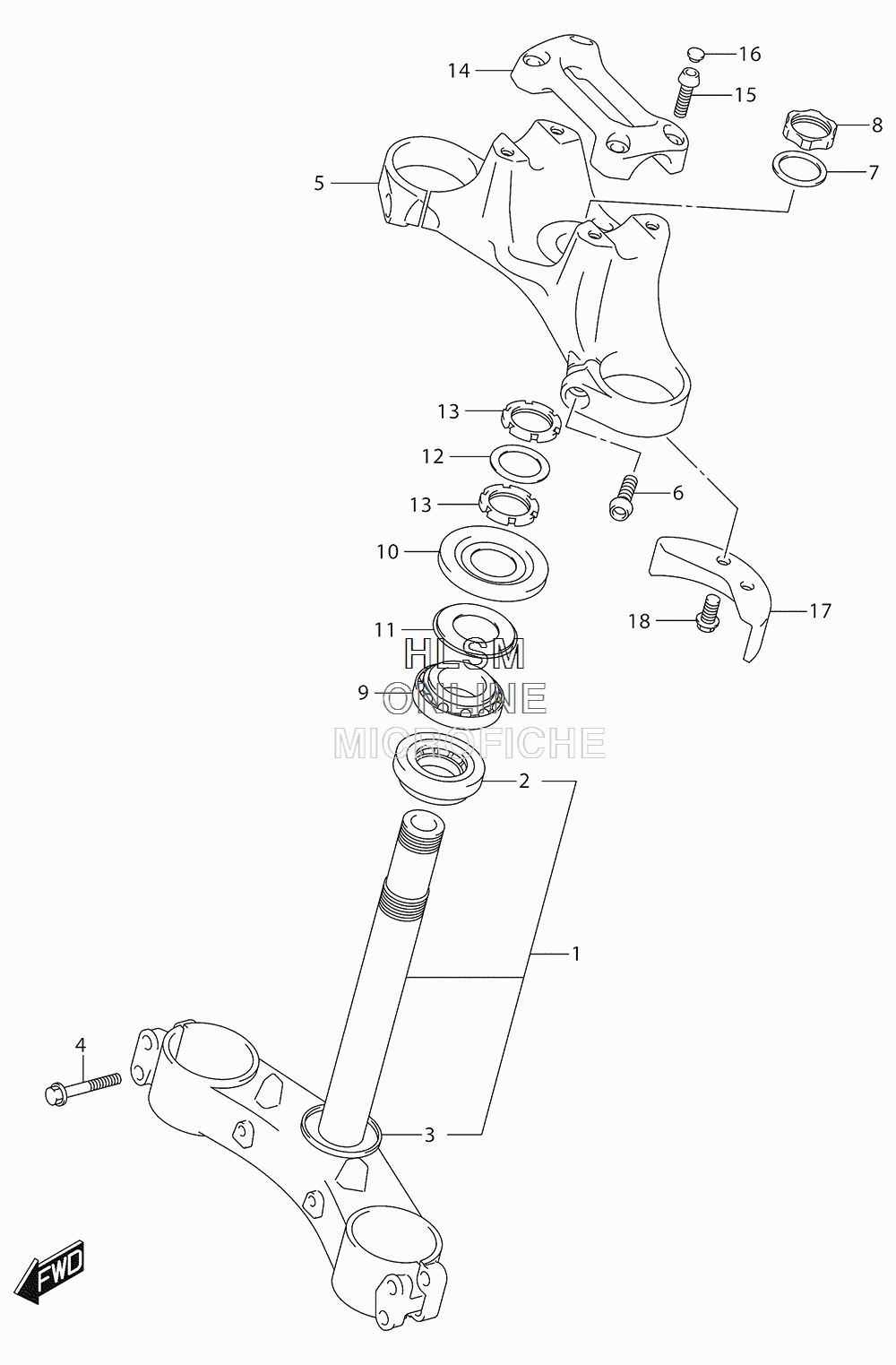

STEERING STEM для Suzuki GSX-S1000 L6 ABS - 2016 года выпуска
-
№АртикулНазвание
-
151410-04K00 BRACKET, UNDERBRACKET, UNDER
-
209267-30010 ...BEARING (30X55X17)...BEARING (30X55X17)
-
351644-12C00 ...SEAL, STEM LOWER...SEAL, STEM LOWER
-
451166-10G10 BOLTBOLT
-
551311-04K00 BRACKET, UPPERBRACKET, UPPER
-
651328-46H00 BOLTBOLT
-
751356-40F30 WASHERWASHER
-
851353-40F30 NUTNUT
-
909267-30010 BEARING (30X55X17)BEARING (30X55X17)
-
1051643-41G10 COVER, STEERING UPPERCOVER, STEERING UPPER
-
1151644-12C00 SEAL, UPPER DUSTSEAL, UPPER DUST
-
1251641-33E00 WASHER, STEMWASHER, STEM
-
1351631-33E00 NUT, STEMNUT, STEM
-
1456211-04K00 HOLDER, HANDLEHOLDER, HANDLE
-
1551328-46H00 BOLTBOLT
-
1609250-06008 CAP (OD:10)CAP (OD:10)
-
1751911-04K00 PLATE, STEERING LOCKPLATE, STEERING LOCK
-
1809103-08351 BOLT (8X16)BOLT (8X16)
