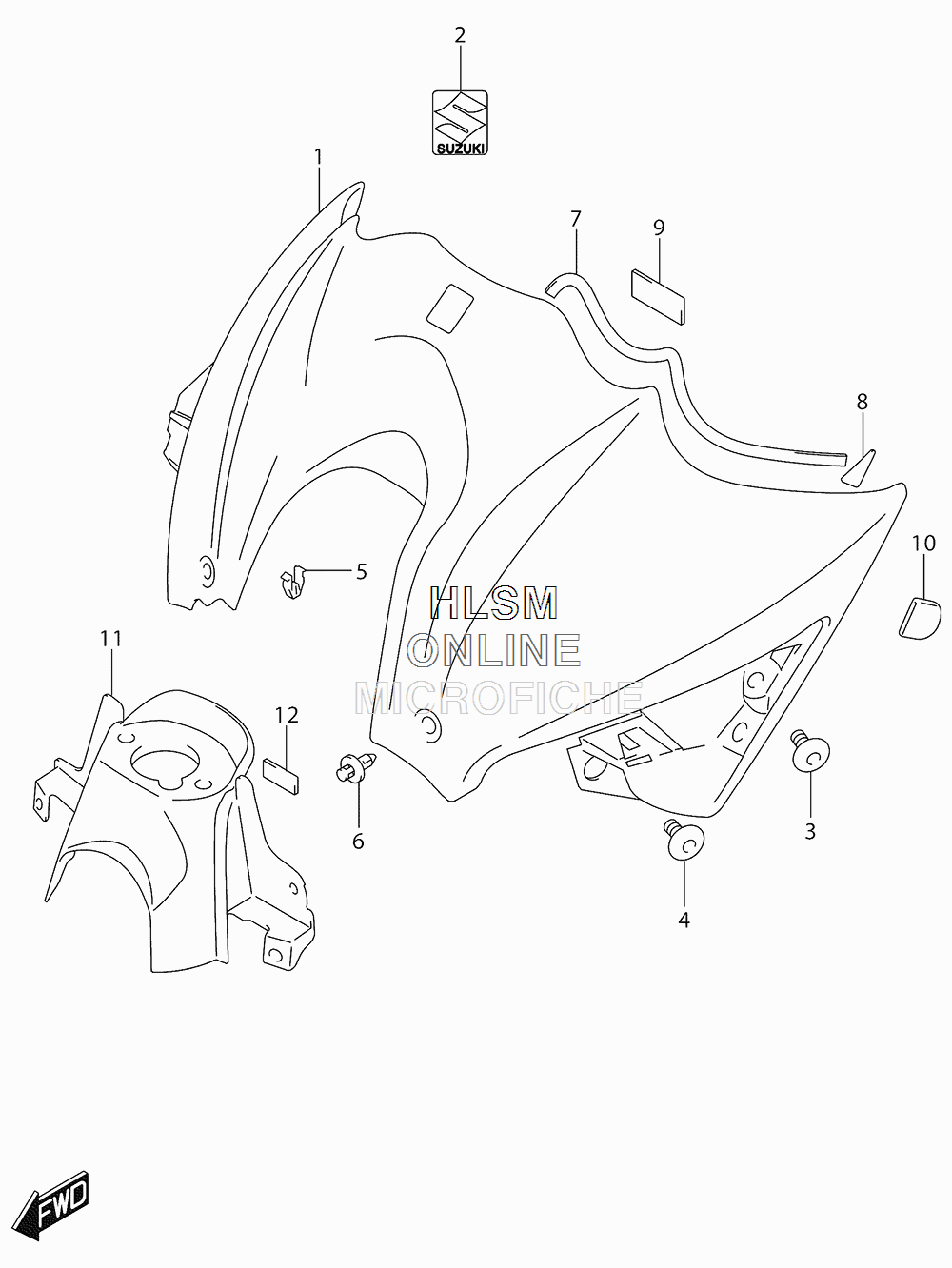

FUEL TANK - FRONT COVER для Suzuki GSX-S1000 L6 ABS - 2016 года выпуска
-
№АртикулНазвание
-
144291-04K00-PGZ COVER, TANK FRONT (GRAY) (FOR PGZ)COVER, TANK FRONT (GRAY) (FOR PGZ)
-
144291-04K00-YSF COVER, TANK FRONT (BLUE) (FOR YSF)COVER, TANK FRONT (BLUE) (FOR YSF)
-
144291-04K00-YYG COVER, TANK FRONT (RED) (FOR AV4)COVER, TANK FRONT (RED) (FOR AV4)
-
268281-47HA0 EMBLEM, ''S''EMBLEM, ''S''
-
309106-06117 BOLT (6X12)BOLT (6X12)
-
409139-06200 SCREW (6X12)SCREW (6X12)
-
509409-08326 CLIPCLIP
-
609409-06314-5PK CLIP (BLACK)CLIP (BLACK)
-
744292-04K00 CUSHION, TANK COVER UPPER NO.1CUSHION, TANK COVER UPPER NO.1
-
844293-04K00 CUSHION, TANK COVER UPPER NO.2CUSHION, TANK COVER UPPER NO.2
-
944294-04K00 CUSHION, TANK COVER UPPER NO.3CUSHION, TANK COVER UPPER NO.3
-
1044542-08J00 CUSHION, FUEL TANK COVER SIDECUSHION, FUEL TANK COVER SIDE
-
1144271-04K00 COVER, FUEL TANK LOWERCOVER, FUEL TANK LOWER
-
1244894-24A00 CUSHIONCUSHION
