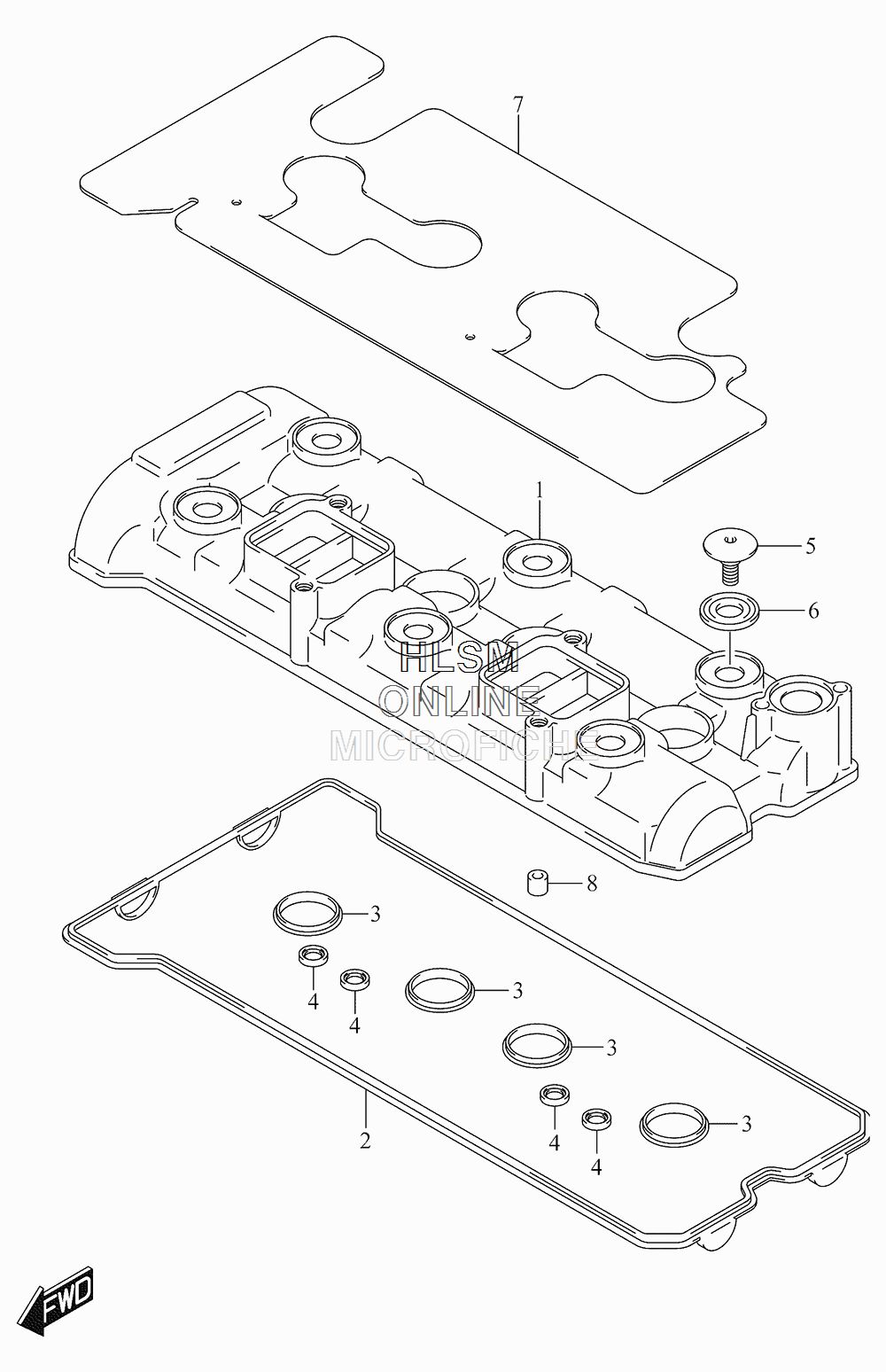

CYLINDER HEAD COVER для Suzuki GSX-S750A L6 - 2016 года выпуска
-
№АртикулНазвание
-
111171-35F10 COVER, CYLINDER HEADCOVER, CYLINDER HEAD
-
211173-35F00 GASKET, CYL HEAD COVER NO.1GASKET, CYL HEAD COVER NO.1
-
311178-33E00 GASKET, CYL HEAD COVER NO.2GASKET, CYL HEAD COVER NO.2
-
411182-35F10 GASKET, 2ND AIR PASSAGEGASKET, 2ND AIR PASSAGE
-
509106-07009 BOLT (7X17.5)BOLT (7X17.5)
-
611191-27E00 WASHERWASHER
-
711179-08J00 SHIELD, CYLINDER HEAD COVERSHIELD, CYLINDER HEAD COVER
-
809206-10016 PIN (8.2X10X13)PIN (8.2X10X13)
