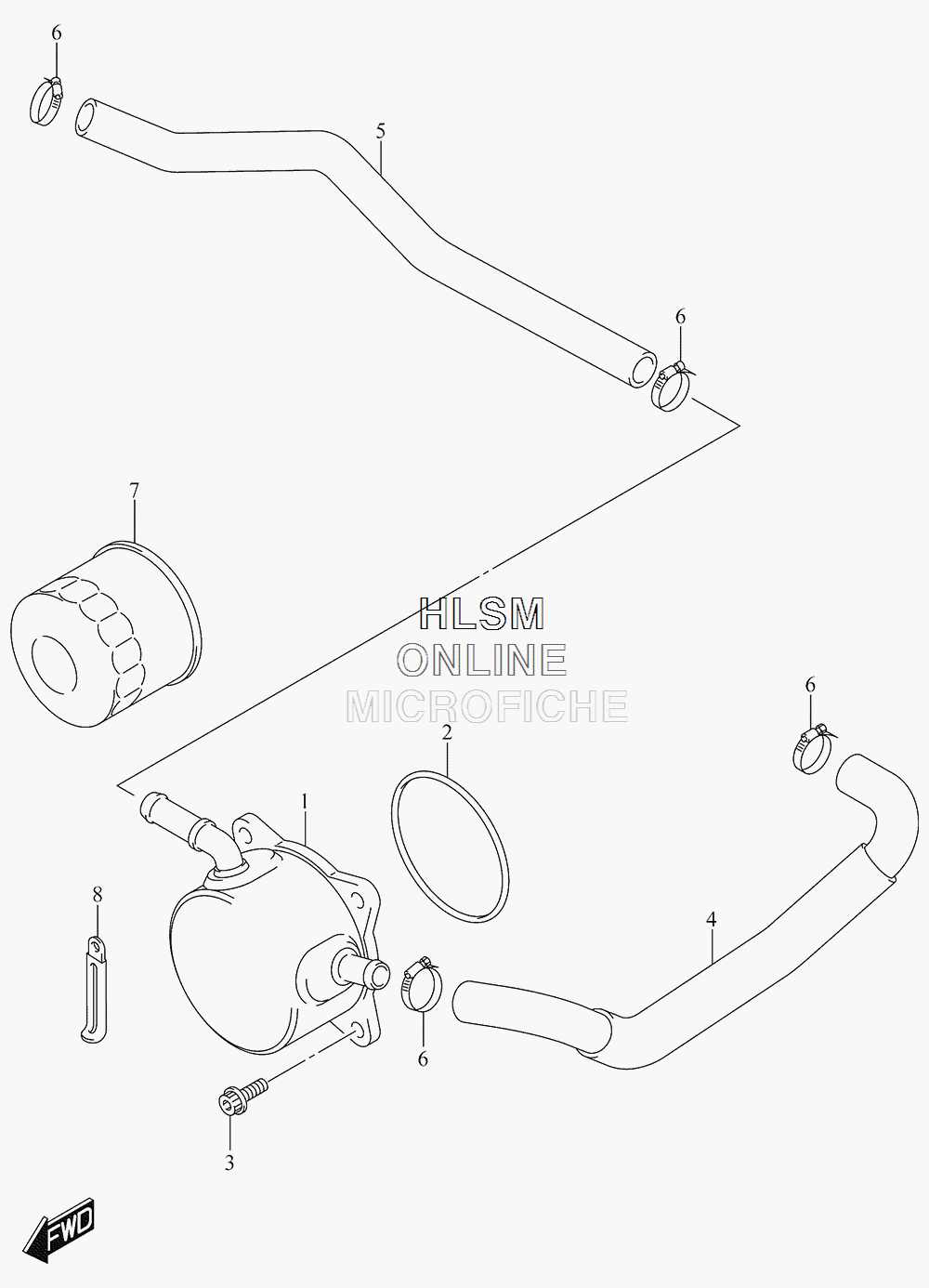

OIL COOLER для Suzuki GSX-S750A L6 - 2016 года выпуска
-
№АртикулНазвание
-
116600-29G00 COOLER ASSY, OILCOOLER ASSY, OIL
-
209280-64003 O RING (D:3.1,ID:63.9)O RING (D:3.1,ID:63.9)
-
309106-06099 BOLT (6X16)BOLT (6X16)
-
416461-08J00 HOSE, OIL COOLER WATER INLETHOSE, OIL COOLER WATER INLET
-
516471-08J00 HOSE, OIL COOLER WATER OUTLETHOSE, OIL COOLER WATER OUTLET
-
609402-22512 CLAMPCLAMP
-
716510-07J00 FILTER ASSY, ENGINE OILFILTER ASSY, ENGINE OIL
-
809404-06433 CLAMP (L:80)CLAMP (L:80)
