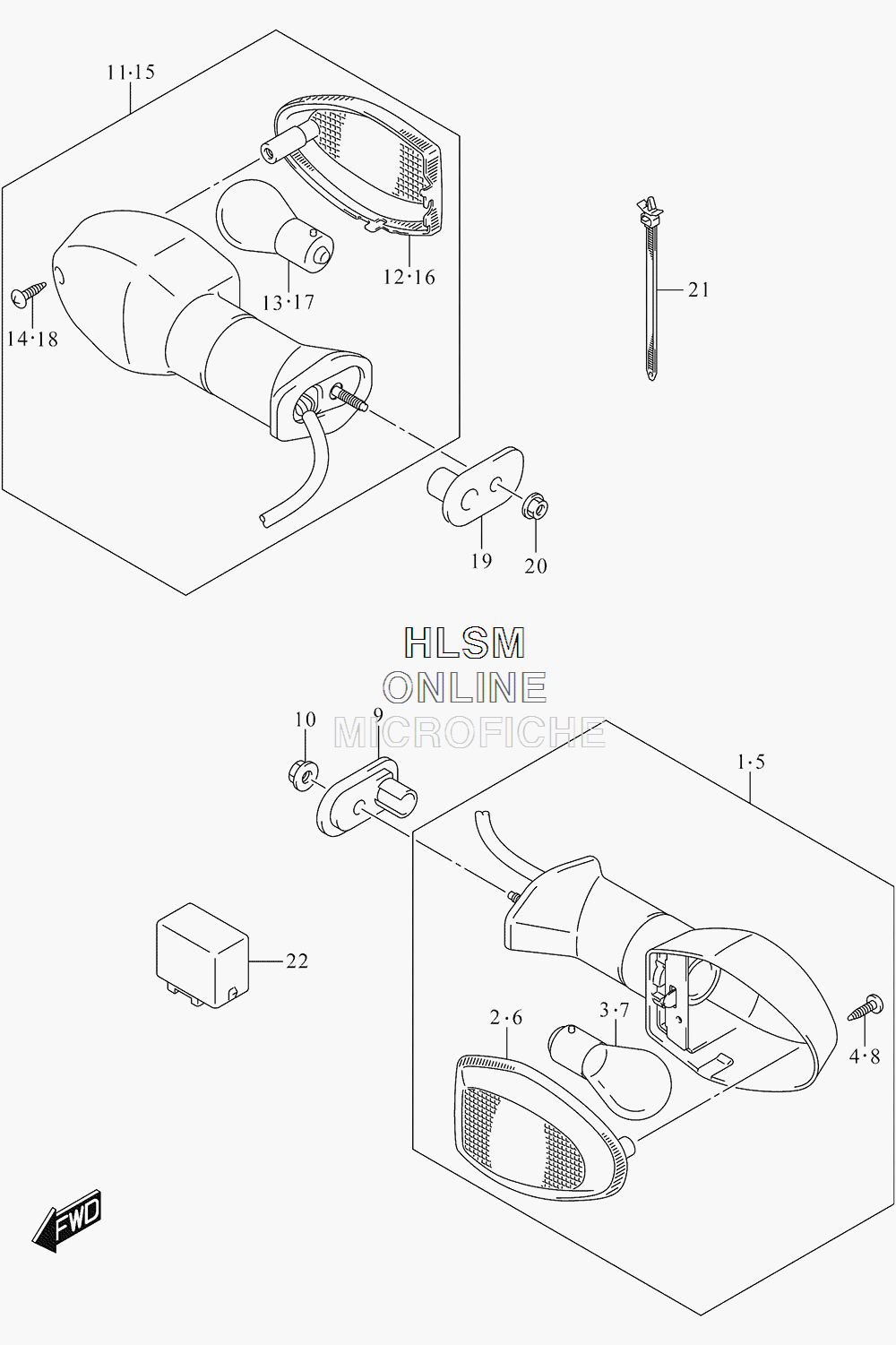

TURN SIGNAL ASSY. для Suzuki GSX-S750A L6 - 2016 года выпуска
-
№АртикулНазвание
-
135601-08J01 LAMP ASSY, FRONT TURNSIGNAL (RH)LAMP ASSY, FRONT TURNSIGNAL (RH)
-
235612-08J01 ...LENS...LENS
-
309471-12045 ...BULB (12V,21W)...BULB (12V,21W)
-
403211-0414B ...SCREW...SCREW
-
535602-08J01 LAMP ASSY, FRONT TURNSIGNAL (RH)LAMP ASSY, FRONT TURNSIGNAL (RH)
-
635632-08J01 ...LENS...LENS
-
709471-12045 ...BULB (12V,21W)...BULB (12V,21W)
-
803211-0414B ...SCREW...SCREW
-
935629-31F40 PLATE, FRONT TURNSIGNALPLATE, FRONT TURNSIGNAL
-
1008316-1005A NUTNUT
-
1135603-08J01 LAMP ASSY, REAR TURNSIGNAL (RH)LAMP ASSY, REAR TURNSIGNAL (RH)
-
1235632-08J01 ...LENS...LENS
-
1309471-12045 ...BULB (12V,21W)...BULB (12V,21W)
-
1403211-0414B ...SCREW...SCREW
-
1535604-08J01 LAMP ASSY, REAR TURNSIGNAL (RH)LAMP ASSY, REAR TURNSIGNAL (RH)
-
1635612-08J01 ...LENS...LENS
-
1709471-12045 ...BULB (12V,21W)...BULB (12V,21W)
-
1803211-0414B ...SCREW...SCREW
-
1935629-31F40 PLATE, REAR TURNSIGNALPLATE, REAR TURNSIGNAL
-
2008316-1005A NUTNUT
-
2109407-11402 CLAMP (L:90)CLAMP (L:90)
-
2238610-03F00 RELAY ASSY, TURNSIGNAL LAMPRELAY ASSY, TURNSIGNAL LAMP
