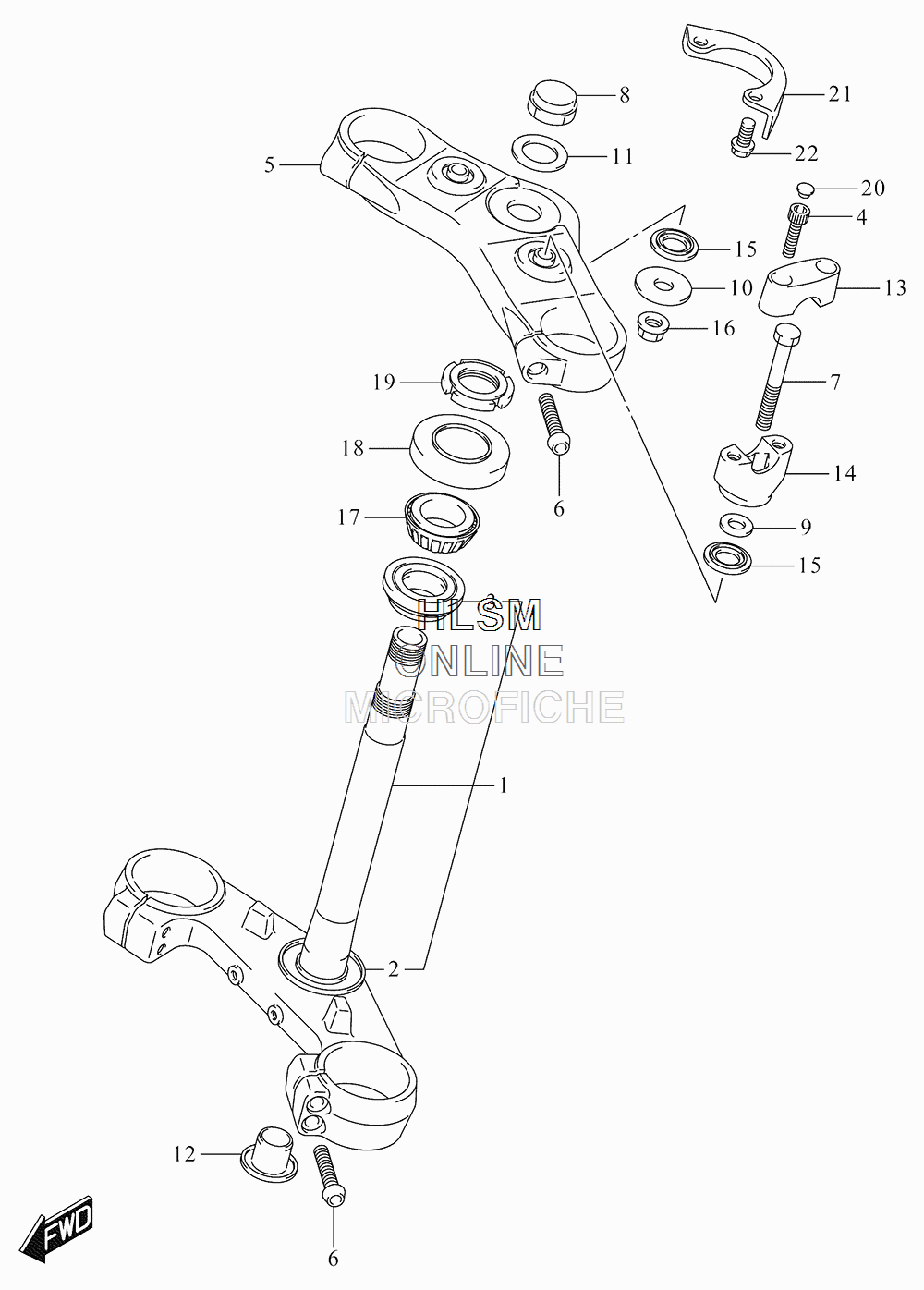

STEERING STEM для Suzuki GSX-S750A L6 - 2016 года выпуска
-
№АртикулНазвание
-
151410-08J00-291 BRACKET, UNDER (BLACK)BRACKET, UNDER (BLACK)
-
251644-12C00 ...SEAL, STEERING LOWER...SEAL, STEERING LOWER
-
309265-30020 ...BEARING (30X55X17)...BEARING (30X55X17)
-
451147-17H00 BOLTBOLT
-
551311-08J00-291 BRACKET, UPPER (BLACK)BRACKET, UPPER (BLACK)
-
651166-40H20 BOLT (8X40)BOLT (8X40)
-
751321-17H10 BOLTBOLT
-
851353-24B00 NUT, CAPNUT, CAP
-
951354-17H00 WASHERWASHER
-
1051355-16G00 WASHERWASHER
-
1151356-10D03 WASHERWASHER
-
1251482-26F00 CAPCAP
-
1356211-08J00-291 HOLDER, HANDLE (BLACK)HOLDER, HANDLE (BLACK)
-
1456221-08J00-291 HOLDER, HANDLE (BLACK)HOLDER, HANDLE (BLACK)
-
1556245-08J00 RUBBER, HANDLE HOLDERRUBBER, HANDLE HOLDER
-
1608319-3110A NUTNUT
-
1709265-25038 BEARING (25X47X15)BEARING (25X47X15)
-
1851643-40502 SEAL, STEERING UPPER DUSTSEAL, STEERING UPPER DUST
-
1951631-31F00 NUT, STEERING STEMNUT, STEERING STEM
-
2009250-06011 CAP (OD:11)CAP (OD:11)
-
2151911-08J01 PLATE, STEERING LOCKPLATE, STEERING LOCK
-
2209103-08351 BOLT (8X16)BOLT (8X16)
