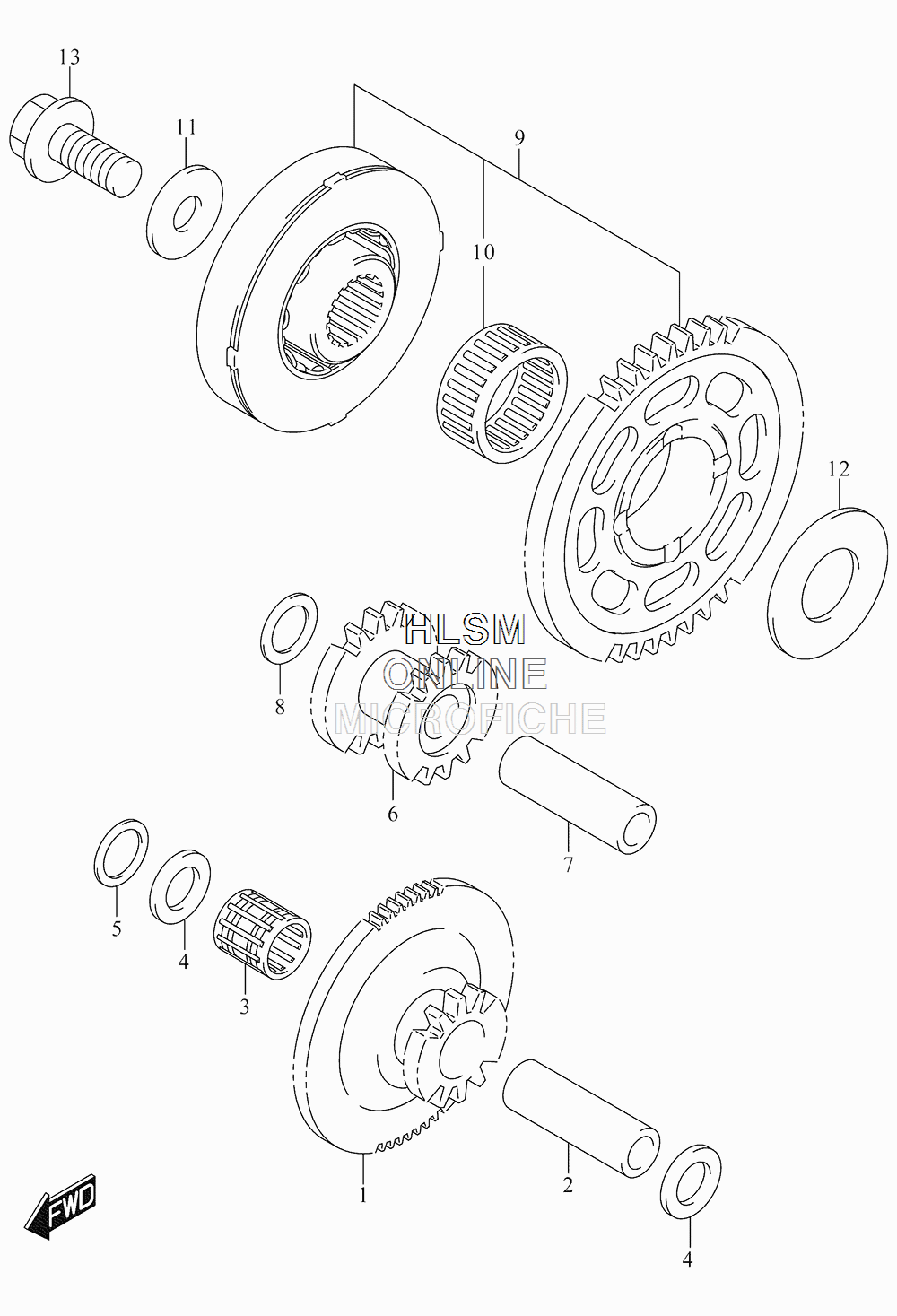

STARTER CLUTCH для Suzuki GSX-S750A L6 - 2016 года выпуска
-
№АртикулНазвание
-
112611-40F00 GEAR, STARTER IDLE NO.1 (NT:13/70)GEAR, STARTER IDLE NO.1 (NT:13/70)
-
212151-09204 PINPIN
-
309263-12023 BEARING (12X16X16)BEARING (12X16X16)
-
409181-12167 SHIM (12X20X1)SHIM (12X20X1)
-
509164-12021 WASHERWASHER
-
612612-40F00 GEAR, STARTER IDLE NO.2 (NT:15/17)GEAR, STARTER IDLE NO.2 (NT:15/17)
-
712151-09204 PINPIN
-
809164-12021 WASHERWASHER
-
912600-40831 CLUTCH SET, STARTER (NT:44)CLUTCH SET, STARTER (NT:44)
-
1009263-26035 ...BEARING (26X31X16)...BEARING (26X31X16)
-
1108211-10285 WASHERWASHER
-
1208211-20403 WASHERWASHER
-
1309103-10189 BOLT (10X23)BOLT (10X23)
