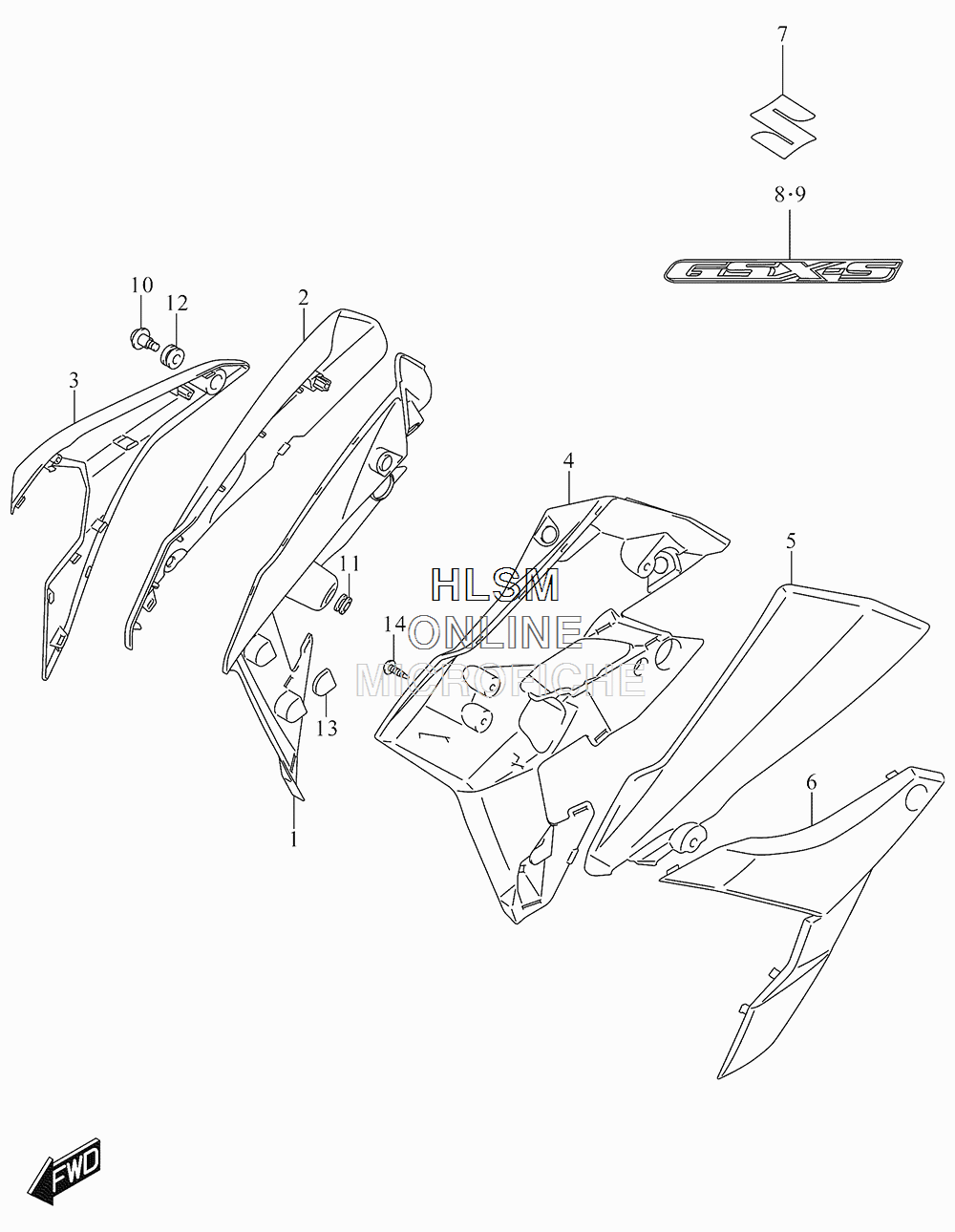

FRAME BODY COVER (FOR YKV-AJX) для Suzuki GSX-S750A L6 - 2016 года выпуска
-
№АртикулНазвание
-
147531-08J00 COVER, FRAME BODY INNER (RH)COVER, FRAME BODY INNER (RH)
-
247532-08J00-YKV COVER, FRAME BODY RIGHT HAND (BLACK) (FOR YKV)COVER, FRAME BODY RIGHT HAND (BLACK) (FOR YKV)
-
247532-08J00-YWW COVER, FRAME BODY RIGHT HAND (WHITE) (FOR AJX)COVER, FRAME BODY RIGHT HAND (WHITE) (FOR AJX)
-
347533-08J00-PGZ COVER, FRAME BODY LOWER RIGHT HAND (GRAY)COVER, FRAME BODY LOWER RIGHT HAND (GRAY)
-
447541-08J00 COVER, FRAME BODY INNER (RH)COVER, FRAME BODY INNER (RH)
-
547542-08J00-YKV COVER, FRAME BODY LEFT HAND (BLACK) (FOR YKV)COVER, FRAME BODY LEFT HAND (BLACK) (FOR YKV)
-
547542-08J00-YWW COVER, FRAME BODY LEFT HAND (WHITE) (FOR AJX)COVER, FRAME BODY LEFT HAND (WHITE) (FOR AJX)
-
647543-08J00-PGZ COVER, FRAME BODY LOWER LEFT HAND (GRAY)COVER, FRAME BODY LOWER LEFT HAND (GRAY)
-
768111-47HA0 EMBLEM, ''S''EMBLEM, ''S''
-
868661-08J20-A68 EMBLEM, ''GSX-S'' RIGHT HAND (RED/BLACK) (FOR YKV)EMBLEM, ''GSX-S'' RIGHT HAND (RED/BLACK) (FOR YKV)
-
868661-08J20-A69 EMBLEM, ''GSX-S'' RIGHT HAND (FOR AJX)EMBLEM, ''GSX-S'' RIGHT HAND (FOR AJX)
-
968671-08J20-A68 EMBLEM, ''GSX-S'' LEFT HAND (RED/BLACK) (FOR YKV)EMBLEM, ''GSX-S'' LEFT HAND (RED/BLACK) (FOR YKV)
-
968671-08J20-A69 EMBLEM, ''GSX-S'' LEFT HAND (FOR AJX)EMBLEM, ''GSX-S'' LEFT HAND (FOR AJX)
-
1009139-06190 BOLT (6X20)BOLT (6X20)
-
1109320-08028 CUSHIONCUSHION
-
1209320-09016 CUSHIONCUSHION
-
1309329-18001 CUSHIONCUSHION
-
1403541-0516A SCREWSCREW
