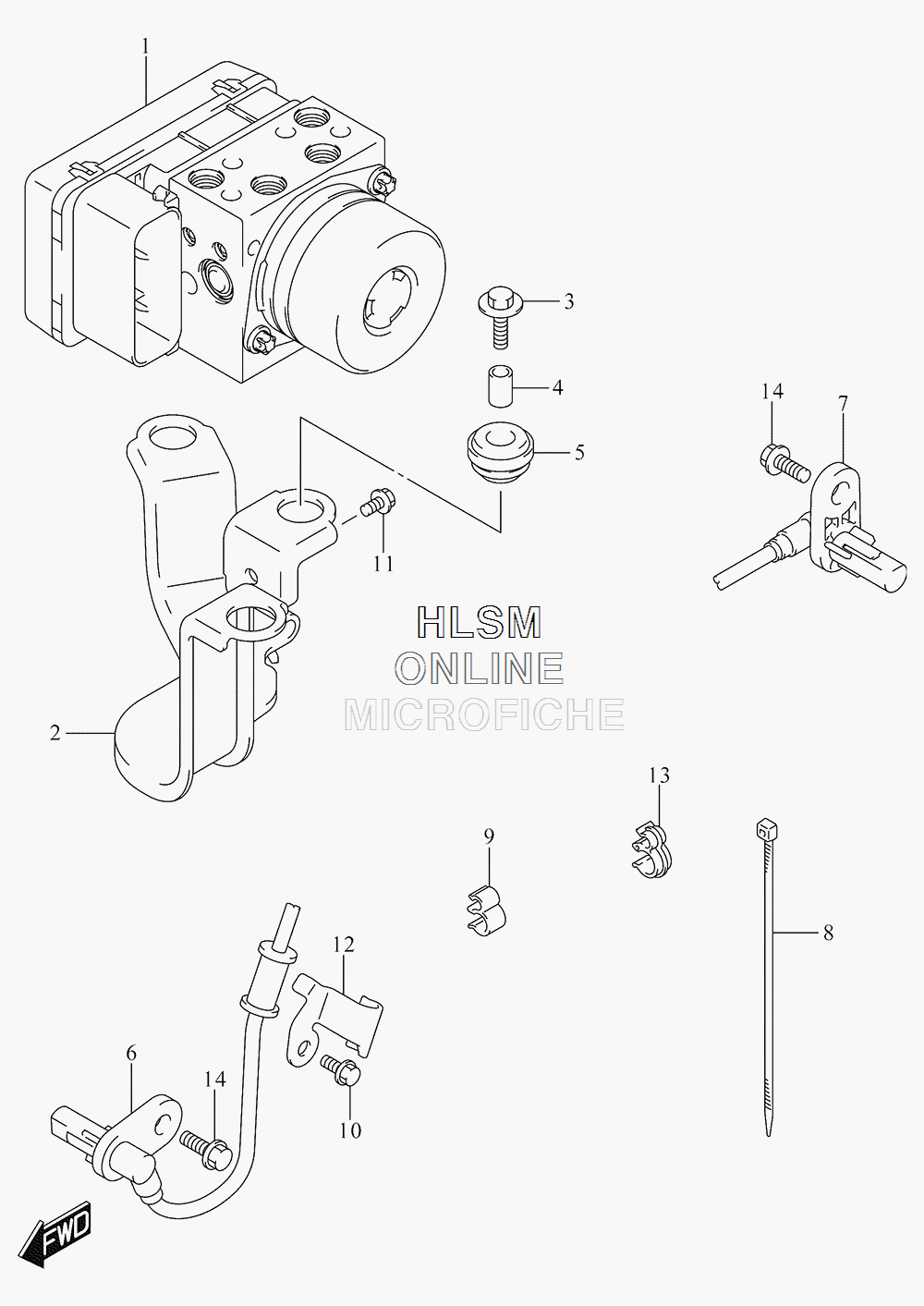

HYDRAULIC UNIT для Suzuki GSX-S750A L6 - 2016 года выпуска
-
№АртикулНазвание
-
155610-08J01 UNIT ASSY, HYDRAULIC ABSUNIT ASSY, HYDRAULIC ABS
-
255660-08J00 HOLDER, HYDRAULIC UNITHOLDER, HYDRAULIC UNIT
-
309116-06150 BOLT (6X25)BOLT (6X25)
-
455662-10G00 SPACER, HYDRAULIC UNITSPACER, HYDRAULIC UNIT
-
555663-10G10 RUBBER, HYDRAULIC UNITRUBBER, HYDRAULIC UNIT
-
655710-08J00 SENSOR, FRONT WHEEL ABSSENSOR, FRONT WHEEL ABS
-
765710-08J00 SENSOR, REAR WHEEL ABSSENSOR, REAR WHEEL ABS
-
809407-14407 CLAMP (L:145)CLAMP (L:145)
-
909408-00266 CLAMPCLAMP
-
1001547-0612A BOLTBOLT
-
1101547-0610A BOLTBOLT
