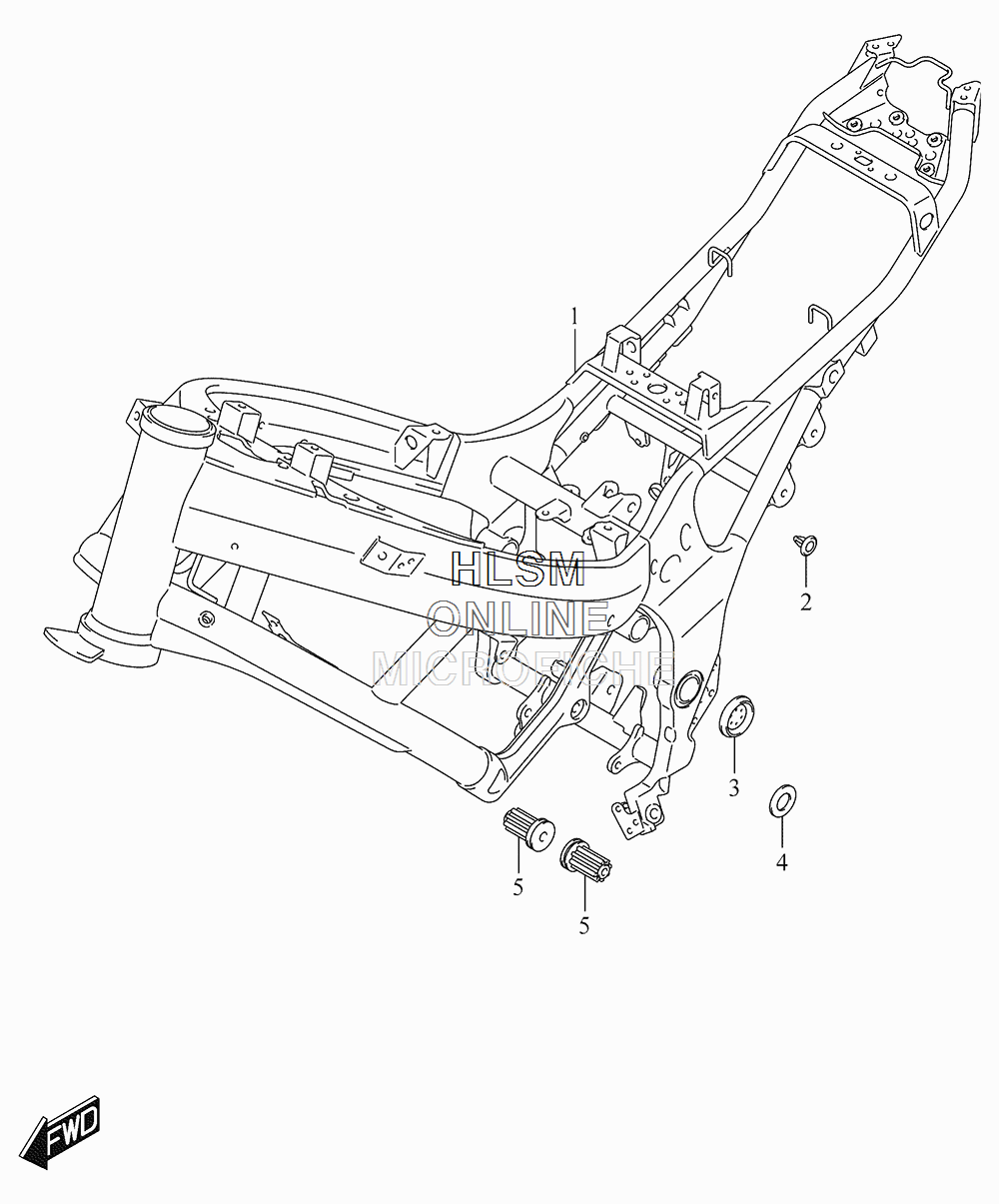

FRAME для Suzuki GSX-S750A L6 - 2016 года выпуска
-
№АртикулНазвание
-
141100-08J10-YAP FRAME (BLACK)FRAME (BLACK)
-
243585-01H01 PLUG, TANK RAILPLUG, TANK RAIL
-
343585-46H10 CAP, FRAME PIVOTCAP, FRAME PIVOT
-
409161-12010 WASHER (12.6X24X2.2)WASHER (12.6X24X2.2)
-
541184-08J01 BUSH, ENGINE MOUTING REARBUSH, ENGINE MOUTING REAR
