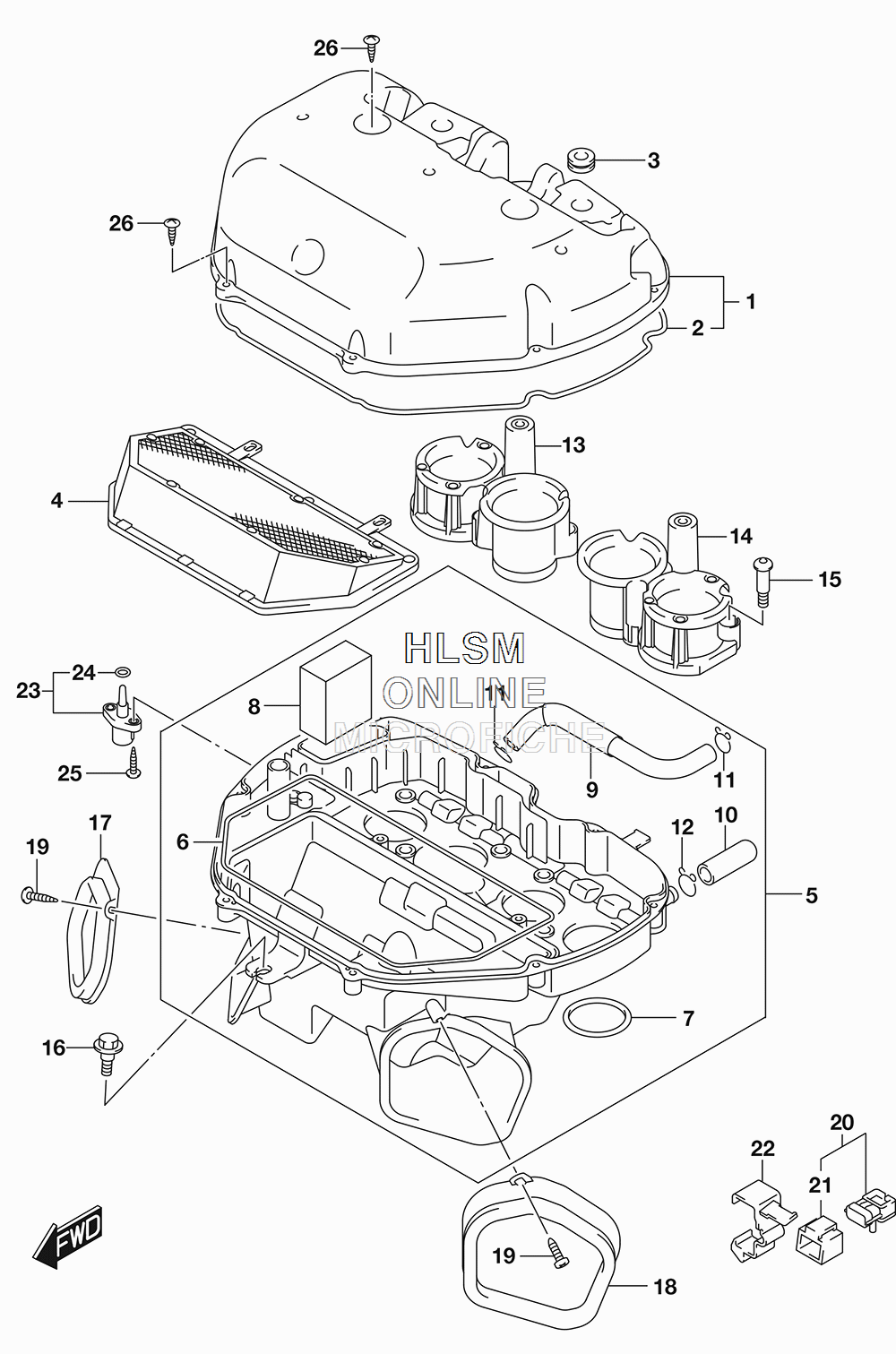

AIR CLEANER для Suzuki GSX-R1000R - 2017 года выпуска
-
№АртикулНазвание
-
113740-17K00 CAP, AIR CLEANERCAP, AIR CLEANER
-
213746-35F00 ...GASKET, CAP...GASKET, CAP
-
315911-17K00 INSULATOR, INJECTORINSULATOR, INJECTOR
-
413780-17K00 FILTER ASSYFILTER ASSY
-
513720-17K00 CASE, AIR CLEANERCASE, AIR CLEANER
-
613756-17K00 ...GASKET CASE A...GASKET CASE A
-
713757-17K00 ...GASKET CASE B...GASKET CASE B
-
813788-17K00 ...FILTER, BREATHER...FILTER, BREATHER
-
913853-17K00 ...TUBE, BREATHER...TUBE, BREATHER
-
1013878-09F00 ...PLUG, DRAIN...PLUG, DRAIN
-
1109401-14101 ...CLIP...CLIP
-
1209401-14101 ...CLIP...CLIP
-
1313880-17K00 FUNNEL, OUTLET (RH)FUNNEL, OUTLET (RH)
-
1413880-17K10 FUNNEL, OUTLET (LH)FUNNEL, OUTLET (LH)
-
1513831-47H00 BOLTBOLT
-
1609111-06089 BOLT (6X16)BOLT (6X16)
-
1713820-17K00 PLATE, CLEANER DUCT (RH)PLATE, CLEANER DUCT (RH)
-
1813820-17K10 PLATE, CLEANER DUCT (LH)PLATE, CLEANER DUCT (LH)
-
1903541-0412A SCREWSCREW
-
2015630-29G40 SENSOR, BOOSTSENSOR, BOOST
-
2115625-29G40 ...COVER...COVER
-
2215632-17K00 HOLDER, BOOST SENSORHOLDER, BOOST SENSOR
-
2313650-14G10 SENSOR, AIR TEMPERATURESENSOR, AIR TEMPERATURE
-
2413655-14G10 ...O RING...O RING
-
2503511-0516A SCREWSCREW
-
2603541-0525A SCREWSCREW
