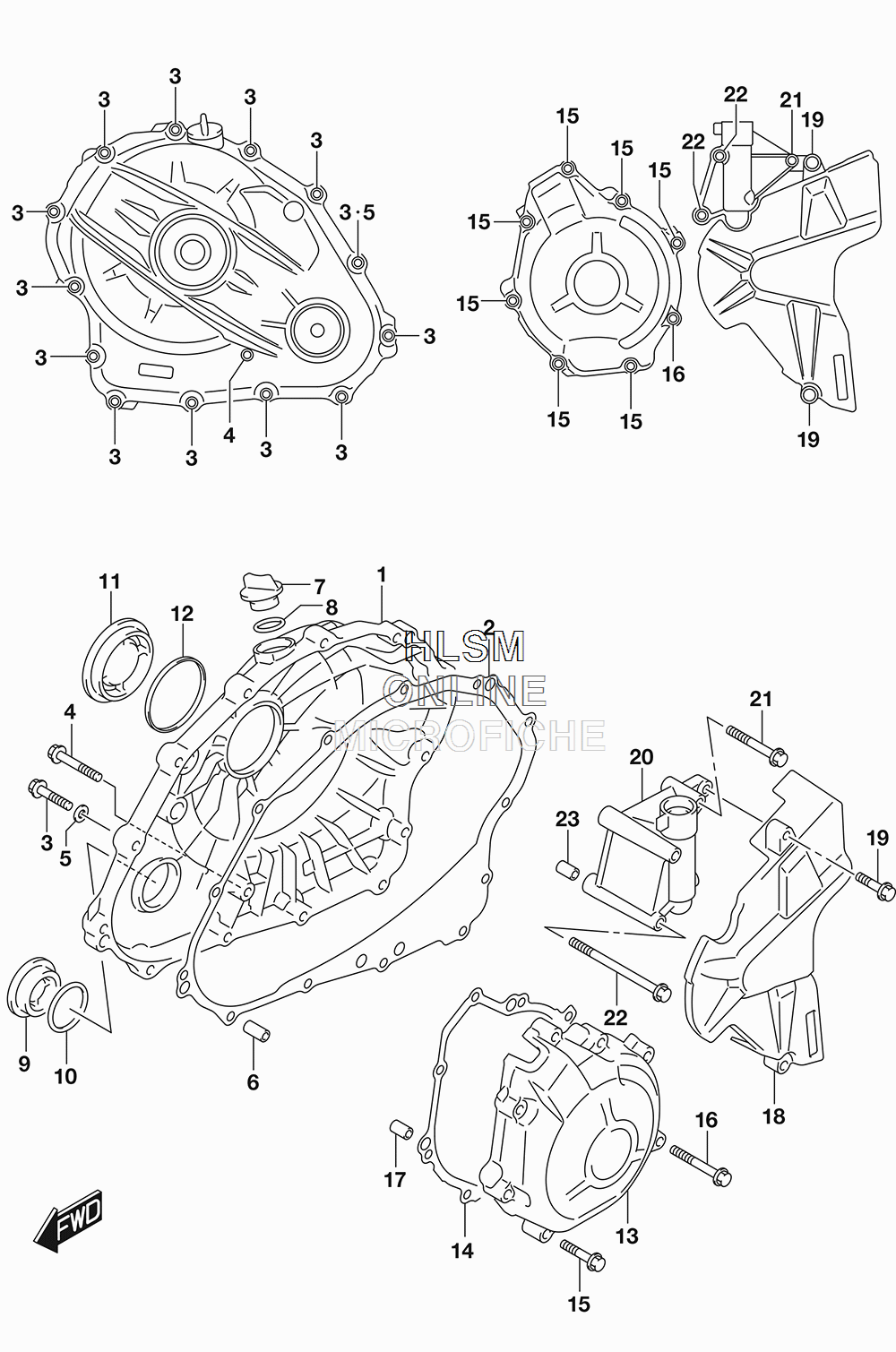

CRANKCASE COVER для Suzuki GSX-R1000R - 2017 года выпуска
-
№АртикулНазвание
-
111341-17K00 COVER, CLUTCHCOVER, CLUTCH
-
211482-17K00 GASKET, CLUTCH COVERGASKET, CLUTCH COVER
-
309103-06213 BOLT (6X30)BOLT (6X30)
-
409103-06215 BOLT (6X40)BOLT (6X40)
-
509168-06023 GASKET (5.8X13X1.2)GASKET (5.8X13X1.2)
-
604211-09189 PINPIN
-
711971-25D00 PLUG, ENGINE OIL FILLERPLUG, ENGINE OIL FILLER
-
809280-17003 O RING (D:3.1,ID:16.8)O RING (D:3.1,ID:16.8)
-
909259-36021 PLUGPLUG
-
1009280-33004 O RING (D:3.1,ID:32.7)O RING (D:3.1,ID:32.7)
-
1111342-41G10 CAP, CLUTCH RELEASE ADJUSTCAP, CLUTCH RELEASE ADJUST
-
1231156-17E00 O RINGO RING
-
1311351-17K01 COVER, MAGNETOCOVER, MAGNETO
-
1411483-17K00 GASKET, MAGNETOCOVERGASKET, MAGNETOCOVER
-
1509103-06213 BOLT (6X30)BOLT (6X30)
-
1609103-06224 BOLT (6X45)BOLT (6X45)
-
1704211-09149 PINPIN
-
1811360-17K00 COVER, ENGINE SPROCKETCOVER, ENGINE SPROCKET
-
1901550-0625B BOLTBOLT
-
2011371-17K00 HOLDER, CLUTCH RELEASEHOLDER, CLUTCH RELEASE
-
2101547-0645A BOLTBOLT
-
2201547-0690A BOLTBOLT
-
2304211-09149 PINPIN
