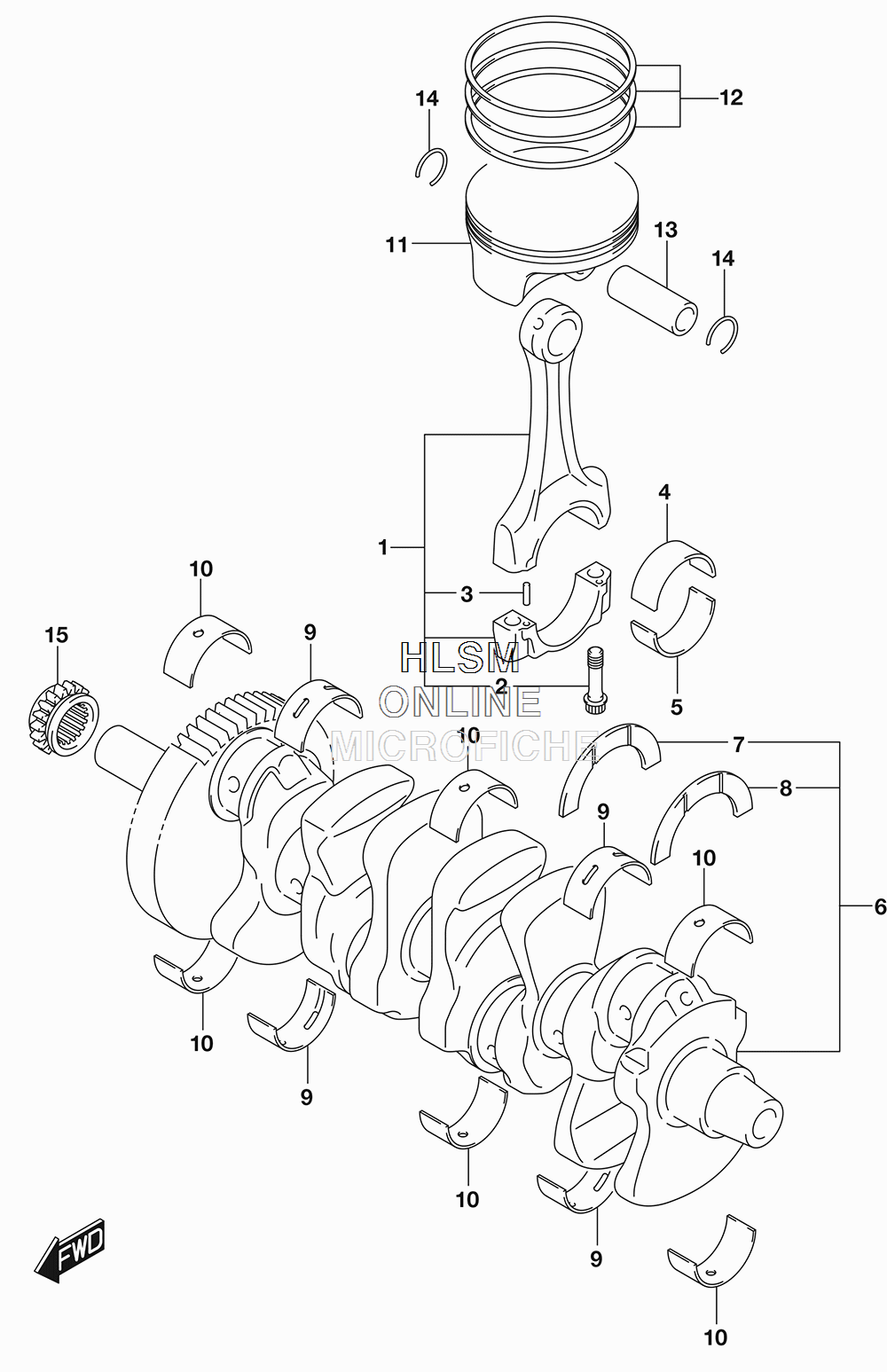

CRANKSHAFT W/ PISTON для Suzuki GSX-R1000R - 2017 года выпуска
-
№АртикулНазвание
-
112160-17K00 ROD ASSY, CONNECTINGROD ASSY, CONNECTING
-
212163-17K00 ...BOLT...BOLT
-
304221-03059 ...PIN...PIN
-
4-112164-17K00-0A0 BEARING, CRANK PIN UPPER (GREEN)BEARING, CRANK PIN UPPER (GREEN)
-
4-212164-17K00-0B0 BEARING, CRANK PIN UPPER (BLACK)BEARING, CRANK PIN UPPER (BLACK)
-
4-312164-17K00-0C0 BEARING, CRANK PIN UPPER (BROWN)BEARING, CRANK PIN UPPER (BROWN)
-
4-412164-17K00-0D0 BEARING, CRANK PIN UPPER (YELLOW)BEARING, CRANK PIN UPPER (YELLOW)
-
5-112164-17K10-0A0 BEARING, CRANK PIN LOWER (GREEN)BEARING, CRANK PIN LOWER (GREEN)
-
5-212164-17K10-0B0 BEARING, CRANK PIN LOWER (BLACK)BEARING, CRANK PIN LOWER (BLACK)
-
5-312164-17K10-0C0 BEARING, CRANK PIN LOWER (BROWN)BEARING, CRANK PIN LOWER (BROWN)
-
5-412164-17K10-0D0 BEARING, CRANK PIN LOWER (YELLOW)BEARING, CRANK PIN LOWER (YELLOW)
-
612000-17860 CRANKSHAFT SETCRANKSHAFT SET
-
712228-48B00-0E0 ...BEARING, THRUST (RH) (GREEN)...BEARING, THRUST (RH) (GREEN)
-
8-112228-48B00-0B0 ...BEARING, THRUST (LH) (BROWN)...BEARING, THRUST (LH) (BROWN)
-
8-212228-48B00-0C0 ...BEARING, THRUST (LH) (RED)...BEARING, THRUST (LH) (RED)
-
8-312228-48B00-0D0 ...BEARING, THRUST (LH) (YELLOW)...BEARING, THRUST (LH) (YELLOW)
-
8-412228-48B00-0E0 ...BEARING, THRUST (LH) (GREEN)...BEARING, THRUST (LH) (GREEN)
-
8-512228-48B00-0F0 ...BEARING, THRUST (LH) (BLUE)...BEARING, THRUST (LH) (BLUE)
-
8-612228-48B00-0G0 ...BEARING, THRUST (LH) (ORANGE)...BEARING, THRUST (LH) (ORANGE)
-
8-712228-48B00-0H0 ...BEARING, THRUST (LH) (BLACK)...BEARING, THRUST (LH) (BLACK)
-
9-112229-17K00-0A0 BEARING, CRANKSHAFT (GREEN)BEARING, CRANKSHAFT (GREEN)
-
9-212229-17K00-0B0 BEARING, CRANKSHAFT (BLACK)BEARING, CRANKSHAFT (BLACK)
-
9-312229-17K00-0C0 BEARING, CRANKSHAFT (BROWN)BEARING, CRANKSHAFT (BROWN)
-
9-412229-17K00-0D0 BEARING, CRANKSHAFT (YELLOW)BEARING, CRANKSHAFT (YELLOW)
-
9-512229-17K00-0E0 BEARING, CRANKSHAFT (BLUE)BEARING, CRANKSHAFT (BLUE)
-
10-112229-17K10-0A0 BEARING, CRANKSHAFT (GREEN)BEARING, CRANKSHAFT (GREEN)
-
10-212229-17K10-0B0 BEARING, CRANKSHAFT (BLACK)BEARING, CRANKSHAFT (BLACK)
-
10-312229-17K10-0C0 BEARING, CRANKSHAFT (BROWN)BEARING, CRANKSHAFT (BROWN)
-
10-412229-17K10-0D0 BEARING, CRANKSHAFT (YELLOW)BEARING, CRANKSHAFT (YELLOW)
-
10-512229-17K10-0E0 BEARING, CRANKSHAFT (BLUE)BEARING, CRANKSHAFT (BLUE)
-
1112111-17K00-0F0 PISTONPISTON
-
1212140-17K00 RING SET, PISTONRING SET, PISTON
-
1312151-17K00 PIN, PISTONPIN, PISTON
-
1412152-17K00 CIRCLIPCIRCLIP
-
1512731-47H00 SPROCKET, CAM CHAIN (NT:17)SPROCKET, CAM CHAIN (NT:17)
