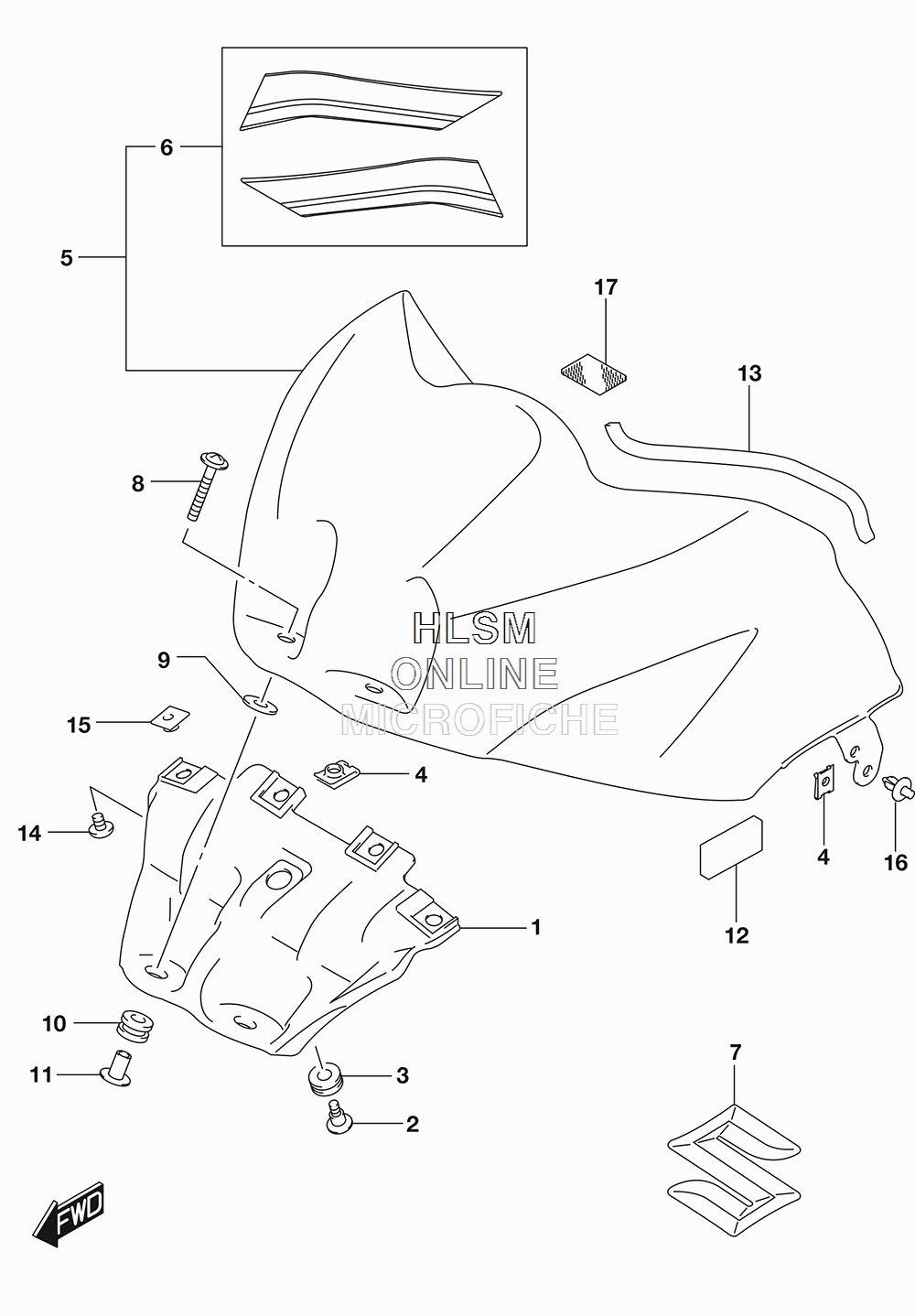

FUEL TANK FRONT COVER (EXCEPT CALIF.) для Suzuki GSX-R1000R - 2017 года выпуска
-
№АртикулНазвание
-
144521-17K00 BRACKET, FRONTBRACKET, FRONT
-
209139-05078 SCREW (5X16.4)SCREW (5X16.4)
-
309320-08021 CUSHIONCUSHION
-
409148-05052 NUTNUT
-
544290-17KA0-YSF COVER, FRONT (YSF - BLUE)COVER, FRONT (YSF - BLUE)
-
668120-17K00-BDH ...TAPE SET, FUEL TANK COVER (BDH - BLUE/WHITE/YELLOW/GRAY)...TAPE SET, FUEL TANK COVER (BDH - BLUE/WHITE/YELLOW/GRAY)
-
768111-47HA0 EMBLEM "S"EMBLEM "S"
-
809139-06210 SCREWSCREW
-
909160-06012 WASHER (6.5X22X1.6)WASHER (6.5X22X1.6)
-
1009320-10050 CUSHIONCUSHION
-
1144512-17K00 SPACERSPACER
-
1233652-20C00 PROTECTOR, FUEL TANK COVER (CUT AS REQUIRED)PROTECTOR, FUEL TANK COVER (CUT AS REQUIRED)
-
1344277-17K00 CUSHION, FUEL TANK COVERCUSHION, FUEL TANK COVER
-
1409139-06181 SCREW (6X10)SCREW (6X10)
-
1544523-47H00 NUTNUT
-
1609409-06314 CLIPCLIP
-
1744572-44G00 FASTENER, COVERFASTENER, COVER
