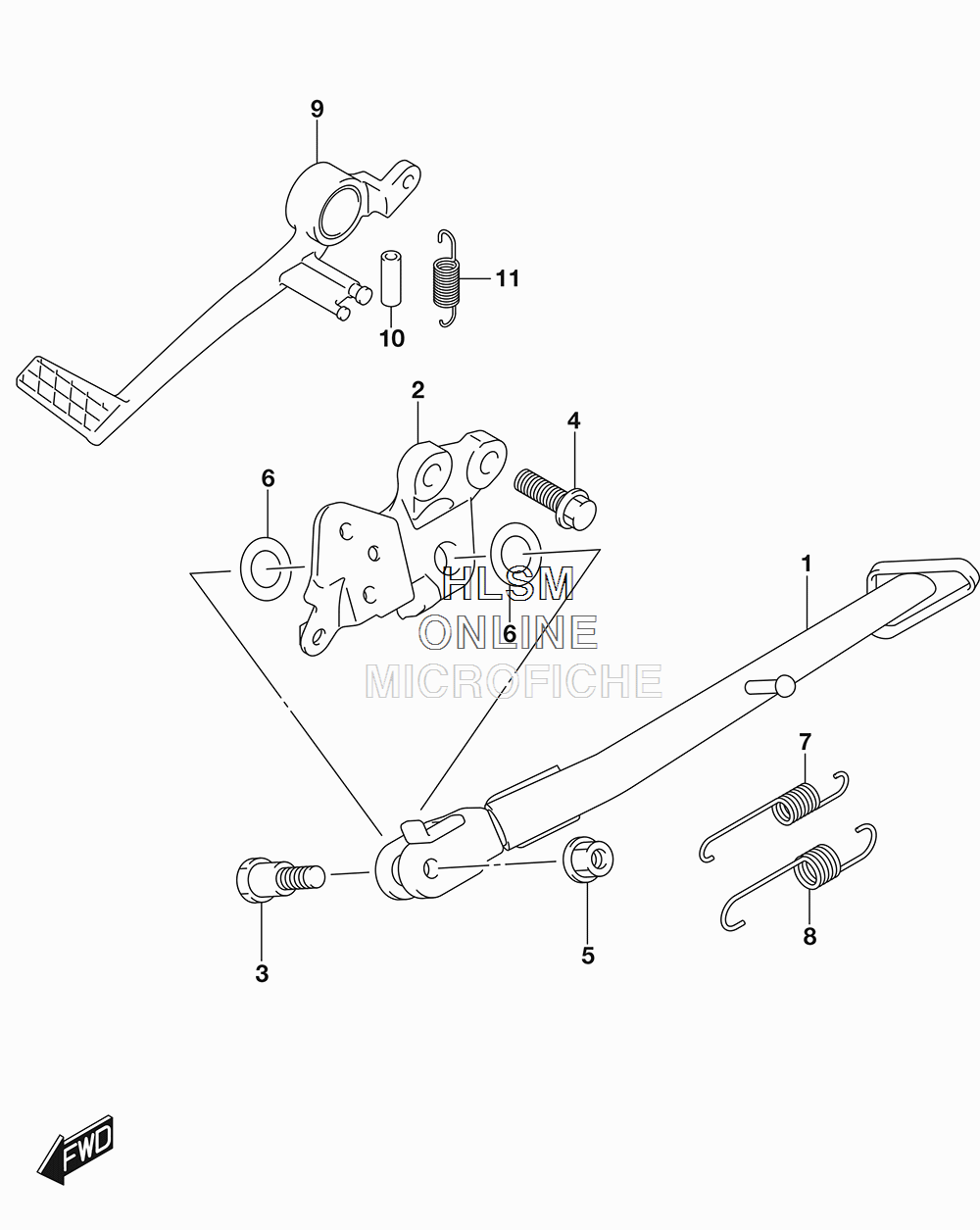

BRAKE PEDAL W/ STAND для Suzuki GSX-R1000R - 2017 года выпуска
-
№АртикулНазвание
-
142310-17K00 STAND, PROPSTAND, PROP
-
242330-17K10 BRACKET, PROP STANDBRACKET, PROP STAND
-
342411-47H00 BOLTBOLT
-
409103-10366 BOLT (10X30)BOLT (10X30)
-
509159-10103 NUTNUT
-
609181-16214 SHIM (16X28X0.5)SHIM (16X28X0.5)
-
709443-14070 SPRING (NO.1)SPRING (NO.1)
-
809443-19016 SPRING (NO.2)SPRING (NO.2)
-
943110-47H10 PEDAL, BRAKEPEDAL, BRAKE
-
1009352-11153-600 HOSE (11X15X600) (L:600->22)HOSE (11X15X600) (L:600->22)
-
1109443-11033 SPRINGSPRING
