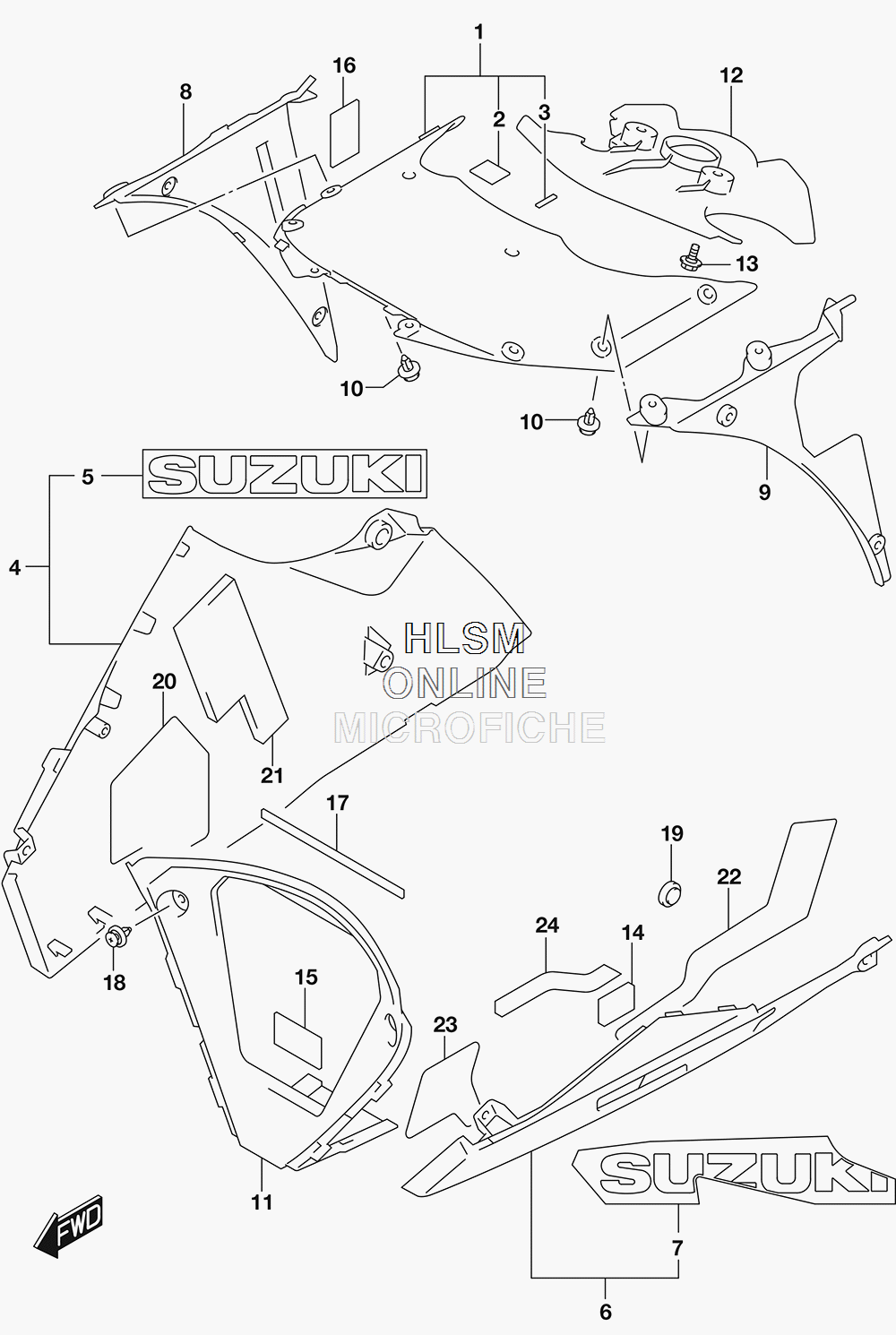

COWLING - UNDER BODY (BLUE) (CANADA) для Suzuki GSX-R1000R - 2017 года выпуска
-
№АртикулНазвание
-
194620-17K00 COVER, BODY COWLCOVER, BODY COWL
-
236930-60A10 ...CUSHION, BODY COWL COVER...CUSHION, BODY COWL COVER
-
394443-06G00 ...TAPE (6X25X0.13)...TAPE (6X25X0.13)
-
494400-17K00-4TX COWLING, UNDER (RH) (4TX - BLACK)COWLING, UNDER (RH) (4TX - BLACK)
-
568181-47HA1-YWW ...EMBLEM, "SUZUKI" (YWW - WHITE)...EMBLEM, "SUZUKI" (YWW - WHITE)
-
694500-17K00-4TX COWLING, UNDER (LH) (4TX - BLACK)COWLING, UNDER (LH) (4TX - BLACK)
-
768191-17K00-AHB ...EMBLEM, "SUZUKI" (AHB - WHITE/BLACK)...EMBLEM, "SUZUKI" (AHB - WHITE/BLACK)
-
894461-17K00 COWLING, UNDER INNER (RH)COWLING, UNDER INNER (RH)
-
994462-17K00 COWLING, UNDER INNER (LH)COWLING, UNDER INNER (LH)
-
1009409-06314 CLIPCLIP
-
1194491-17K00 COWLING, UNDER CTRCOWLING, UNDER CTR
-
1294458-17K00 COVER, LOWER BRACKETCOVER, LOWER BRACKET
-
1309111-06107 BOLT (6X12)BOLT (6X12)
-
1433652-13G00 CUSHION, UNDER (RH)CUSHION, UNDER (RH)
-
1533652-35400 CUSHION, UNDER COWL NO.2CUSHION, UNDER COWL NO.2
-
1636930-60A10 CUSHION, COVER BODY COWLCUSHION, COVER BODY COWL
-
1747121-31J00 CUSHION, UNDER COWL NO.1CUSHION, UNDER COWL NO.1
-
1894479-35F00 CLIPCLIP
-
1909321-10018 CUSHIONCUSHION
-
2094476-17K00 SHIELD, UNDER COWL HEAT (RH)SHIELD, UNDER COWL HEAT (RH)
-
2194477-17K10 CUSHION, SIDE REAR (RH) NO.2CUSHION, SIDE REAR (RH) NO.2
-
2294486-17K00 SHIELD, UNDER COWL HEAT (LH)SHIELD, UNDER COWL HEAT (LH)
-
2394486-17K10 SHIELD, UNDER COWL HEAT (LH)SHIELD, UNDER COWL HEAT (LH)
-
2494487-17K10 CUSHION, SIDE REAR (LH) NO.2CUSHION, SIDE REAR (LH) NO.2
