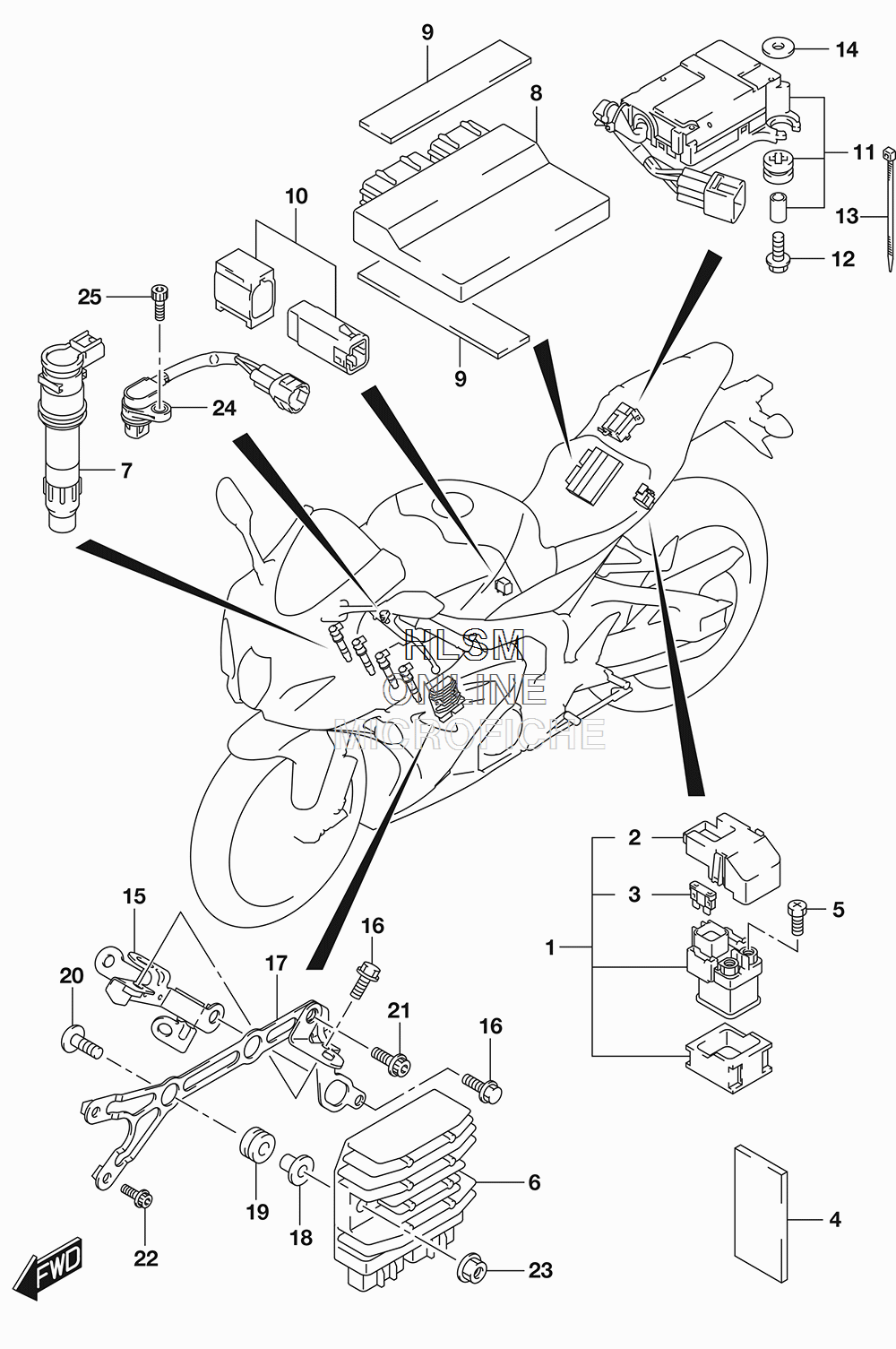

ELECTRICAL (CANADA) для Suzuki GSX-R1000R - 2017 года выпуска
-
№АртикулНазвание
-
131800-21E20 RELAY ASSY, STARTING MOTORRELAY ASSY, STARTING MOTOR
-
231861-47E00 ...COVER...COVER
-
309481-30101 ...FUSE (30A)...FUSE (30A)
-
436920-08D00 PROTECTOR (30X60X3)PROTECTOR (30X60X3)
-
509128-06013 SCREW (6X8)SCREW (6X8)
-
632800-26J01 RECTIFIER ASSYRECTIFIER ASSY
-
733410-17K00 COIL ASSY, IGNITIONCOIL ASSY, IGNITION
-
832920-17KF0 CONTROL UNIT, FICONTROL UNIT, FI
-
933652-38A10 PROTECTOR (20X90X2)PROTECTOR (20X90X2)
-
1033960-06G10 SENSOR ASSY, FUEL CUTSENSOR ASSY, FUEL CUT
-
1133970-47H01 ACTUATOR ASSY, EXHAUSTACTUATOR ASSY, EXHAUST
-
1209103-06066 BOLT (6X23)BOLT (6X23)
-
1309407-10404 CLAMP (L:100)CLAMP (L:100)
-
1408322-0106A WASHERWASHER
-
1536670-17K00 BRACKET, HARNESSBRACKET, HARNESS
-
1601547-0612A BOLTBOLT
-
1732830-17K00 BRACKET, RECT FTGBRACKET, RECT FTG
-
1809180-06331 SPACER (6.2X8.4X10.9)SPACER (6.2X8.4X10.9)
-
1909320-08501 CUSHIONCUSHION
-
2002142-0635A SCREWSCREW
-
2107120-0620A BOLTBOLT
-
2207120-0630B BOLTBOLT
-
2308316-1006A NUTNUT
-
2433220-01H00 SENSOR ASSY, CAM POSITIONSENSOR ASSY, CAM POSITION
-
2507130-0616A BOLTBOLT
