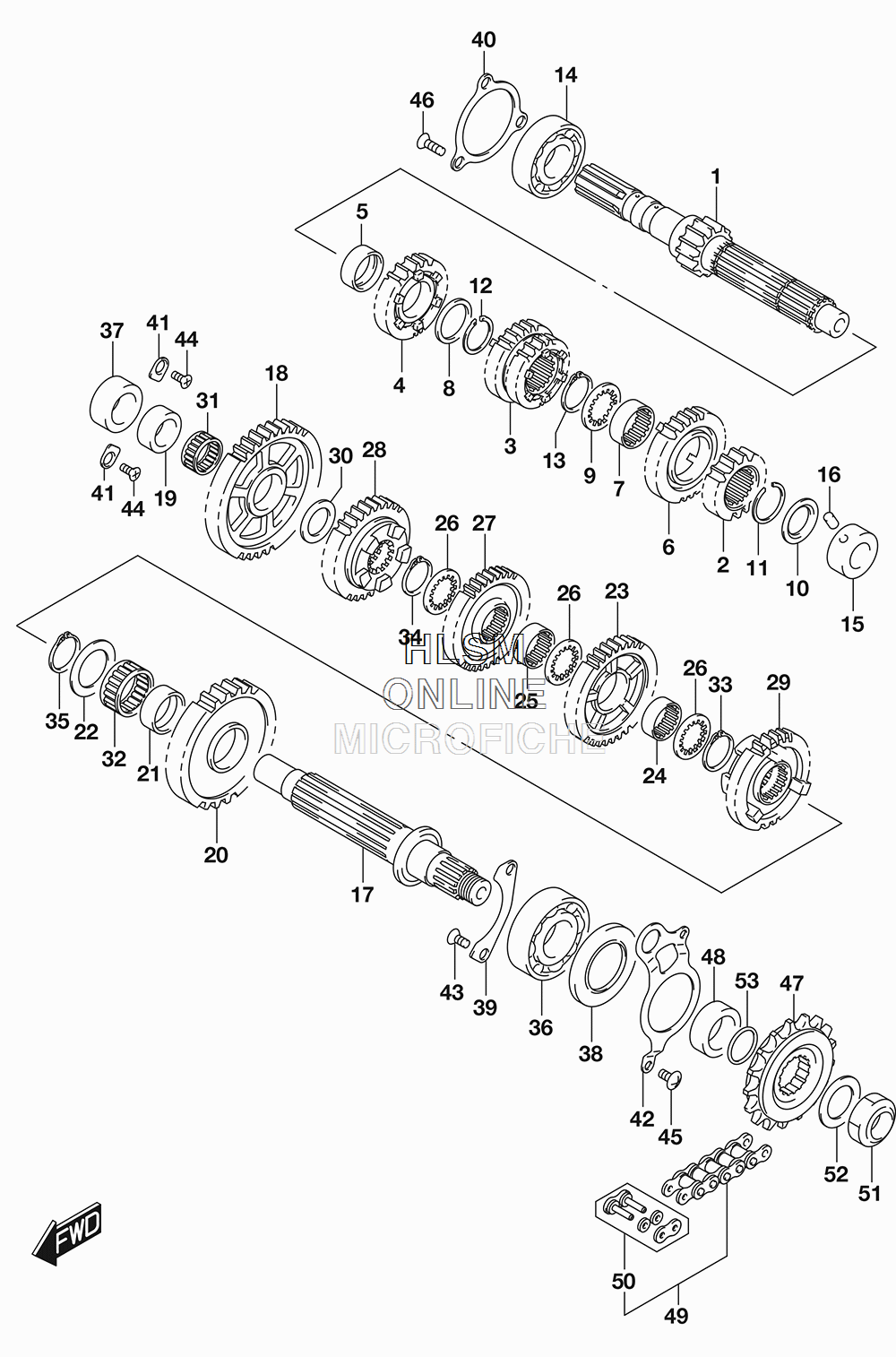

TRANSMISSION для Suzuki GSX-R1000R - 2017 года выпуска
-
№АртикулНазвание
-
124120-17K00 SHAFT, CENTER (NT:16)SHAFT, CENTER (NT:16)
-
224221-40F30 GEAR, 2ND DRIVE (NT:19)GEAR, 2ND DRIVE (NT:19)
-
324231-47H10 GEAR, 3RD & 4TH DRIVE (NT:21/24)GEAR, 3RD & 4TH DRIVE (NT:21/24)
-
424251-47H20 GEAR, 5TH DRIVE (NT:25)GEAR, 5TH DRIVE (NT:25)
-
524252-24F20 BUSH, 5TH DRIVE GEARBUSH, 5TH DRIVE GEAR
-
624261-47H20 GEAR, 6TH DRIVE (NT:26)GEAR, 6TH DRIVE (NT:26)
-
724262-24F20 BUSH, 6TH DRIVE GEARBUSH, 6TH DRIVE GEAR
-
809160-27008 WASHER (27X36X1)WASHER (27X36X1)
-
909167-27001 LOCK WASHERLOCK WASHER
-
1009285-20006 OIL SEAL (20X31.2X2.7)OIL SEAL (20X31.2X2.7)
-
1109380-27004 CIRCLIPCIRCLIP
-
1209380-27006 CIRCLIPCIRCLIP
-
1309380-27006 CIRCLIPCIRCLIP
-
1409262-25001 BEARING (RH)BEARING (RH)
-
1509263-20114 BEARING (LH)BEARING (LH)
-
1604221-07129 PINPIN
-
1724131-17K00 SHAFT, DRIVESHAFT, DRIVE
-
1824311-47H00 GEAR, 1ST DRIVEN (NT:41)GEAR, 1ST DRIVEN (NT:41)
-
1924315-17K00 SPACER, IST DRIVEN GEARSPACER, IST DRIVEN GEAR
-
2024321-17K00 GEAR, 2ND DRIVEN (NT:39)GEAR, 2ND DRIVEN (NT:39)
-
2124322-17K00 BUSH, 2ND DRIVEN GEARBUSH, 2ND DRIVEN GEAR
-
2224323-17K00 WASHER, 2ND DRIVEN GEARWASHER, 2ND DRIVEN GEAR
-
2324331-47H20 GEAR, 3RD DRIVEN (NT:36)GEAR, 3RD DRIVEN (NT:36)
-
2424332-24F20 BUSH, 3RD DRIVEN GEARBUSH, 3RD DRIVEN GEAR
-
2524332-24F20 BUSH, 4TH DRIVEN GEARBUSH, 4TH DRIVEN GEAR
-
2624333-47H00 WASHER, 3RD & 4TH DRIVENWASHER, 3RD & 4TH DRIVEN
-
2724341-47H10 GEAR, 4TH DRIVEN (NT:36)GEAR, 4TH DRIVEN (NT:36)
-
2824351-47H00 GEAR, 5TH DRIVEN (NT:34)GEAR, 5TH DRIVEN (NT:34)
-
2924361-17K00 GEAR, 6TH DRIVEN (NT:33)GEAR, 6TH DRIVEN (NT:33)
-
3009181-24005 SHIM (24X34X1)SHIM (24X34X1)
-
3109263-24030 BEARING (24X28X13)BEARING (24X28X13)
-
3209263-35045 BEARING (35X40X12)BEARING (35X40X12)
-
3309380-30009 CIRCLIPCIRCLIP
-
3409380-30009 CIRCLIPCIRCLIP
-
3509380-30009 CIRCLIPCIRCLIP
-
3609262-30001 BEARING (LH)BEARING (LH)
-
3709263-22074 BEARING (RH)BEARING (RH)
-
3809283-40043 OIL SEALOIL SEAL
-
3924741-06G00 RETAINER, DRIVE SHAFT BEARINGRETAINER, DRIVE SHAFT BEARING
-
4024741-17K00 RETAINER, COUNTER SHAFT BEARINGRETAINER, COUNTER SHAFT BEARING
-
4124741-20A00 RETAINER, COUNTER BEARING (RH)RETAINER, COUNTER BEARING (RH)
-
4224751-17K00 RETAINER, CL PUSH ROD OIL SEALRETAINER, CL PUSH ROD OIL SEAL
-
4309126-06011 SCREW (6X12)SCREW (6X12)
-
4409126-06011 SCREW (6X12)SCREW (6X12)
-
4509139-06153 SCREW (6X13)SCREW (6X13)
-
4609139-06159 SCREW (6X20)SCREW (6X20)
-
4727510-17K00 SPROCKET, ENGINE (NT:17)SPROCKET, ENGINE (NT:17)
-
4827531-17K00 SPACER, ENGINE SPROCKETSPACER, ENGINE SPROCKET
-
4927600-17K00-120 CHAIN ASSY, DRIVE (DID525HV3)CHAIN ASSY, DRIVE (DID525HV3)
-
5027620-17K00 ...JOINT SET, DRIVE CHAIN...JOINT SET, DRIVE CHAIN
-
5109159-22008 NUTNUT
-
5209181-27016 SHIM (27X42X1.5)SHIM (27X42X1.5)
-
5309280-26005 O RING (D:2.4,ID:26.2)O RING (D:2.4,ID:26.2)
