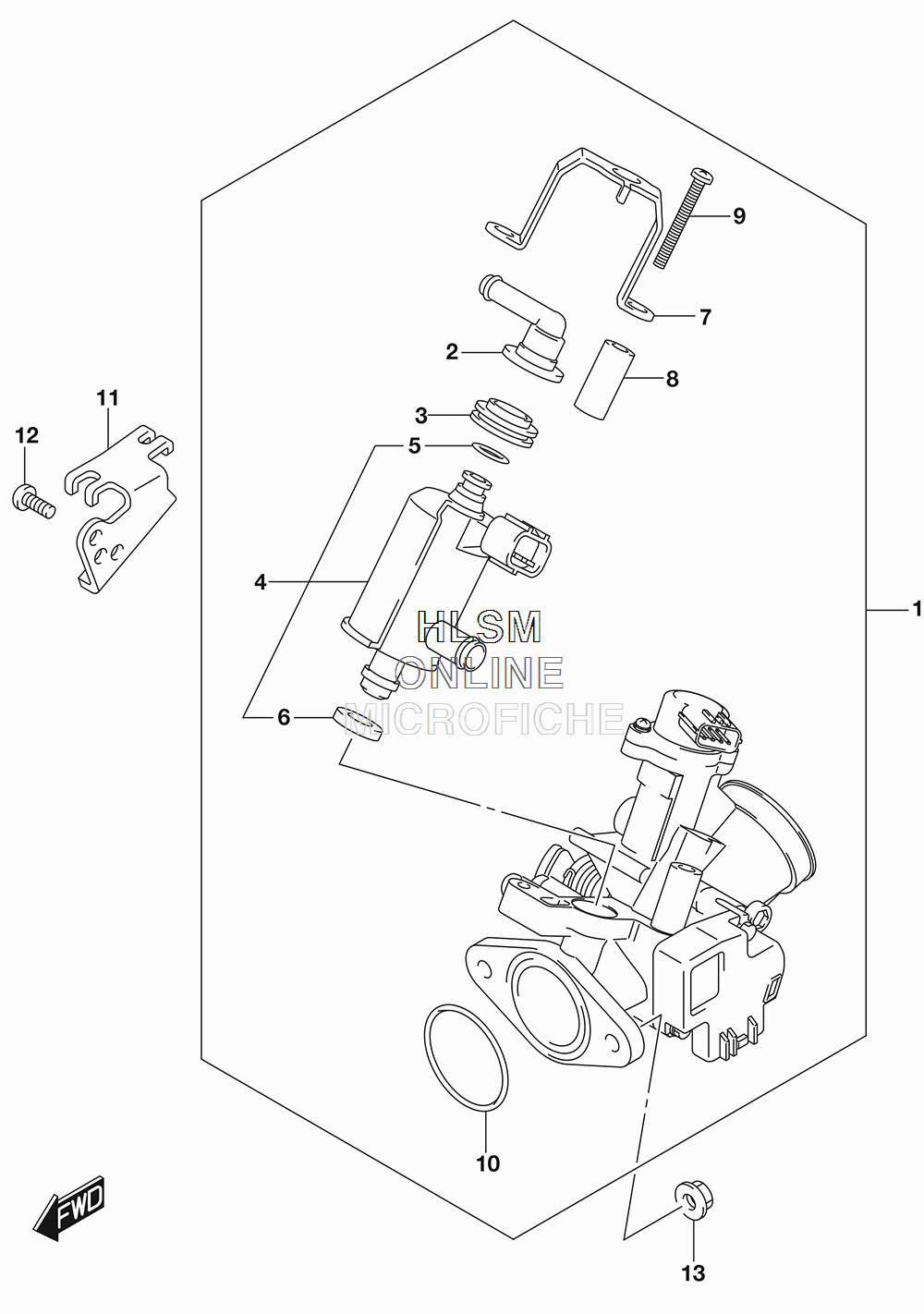

CARBURETOR - THROTTLE BODY (CANADA) для Suzuki VANVAN200 [RV200VV] - 2017 года выпуска
-
№АртикулНазвание
-
113400-13GA1 BODY ASSY, THROTTLEBODY ASSY, THROTTLE
-
215721-13G00 ...NIPPLE...NIPPLE
-
315713-32G00 ...CUSHION, FUEL INJECTOR UPPER...CUSHION, FUEL INJECTOR UPPER
-
415710-13GA1 ...INJECTOR ASSY, FUEL...INJECTOR ASSY, FUEL
-
513374-32G00 ......O RING......O RING
-
615712-32G00 ......CUSHION, FUEL INJECTOR LOWER......CUSHION, FUEL INJECTOR LOWER
-
715714-13G00 ...BRACKET...BRACKET
-
813511-13G00 ...PIPE...PIPE
-
913602-42E00 ...SCREW...SCREW
-
1013251-13G00 ...O RING...O RING
-
1113565-13GA0 BRACKET, THROTTLE CABLEBRACKET, THROTTLE CABLE
-
1209106-05030 BOLT (5X10)BOLT (5X10)
-
1308316-1006A NUTNUT
