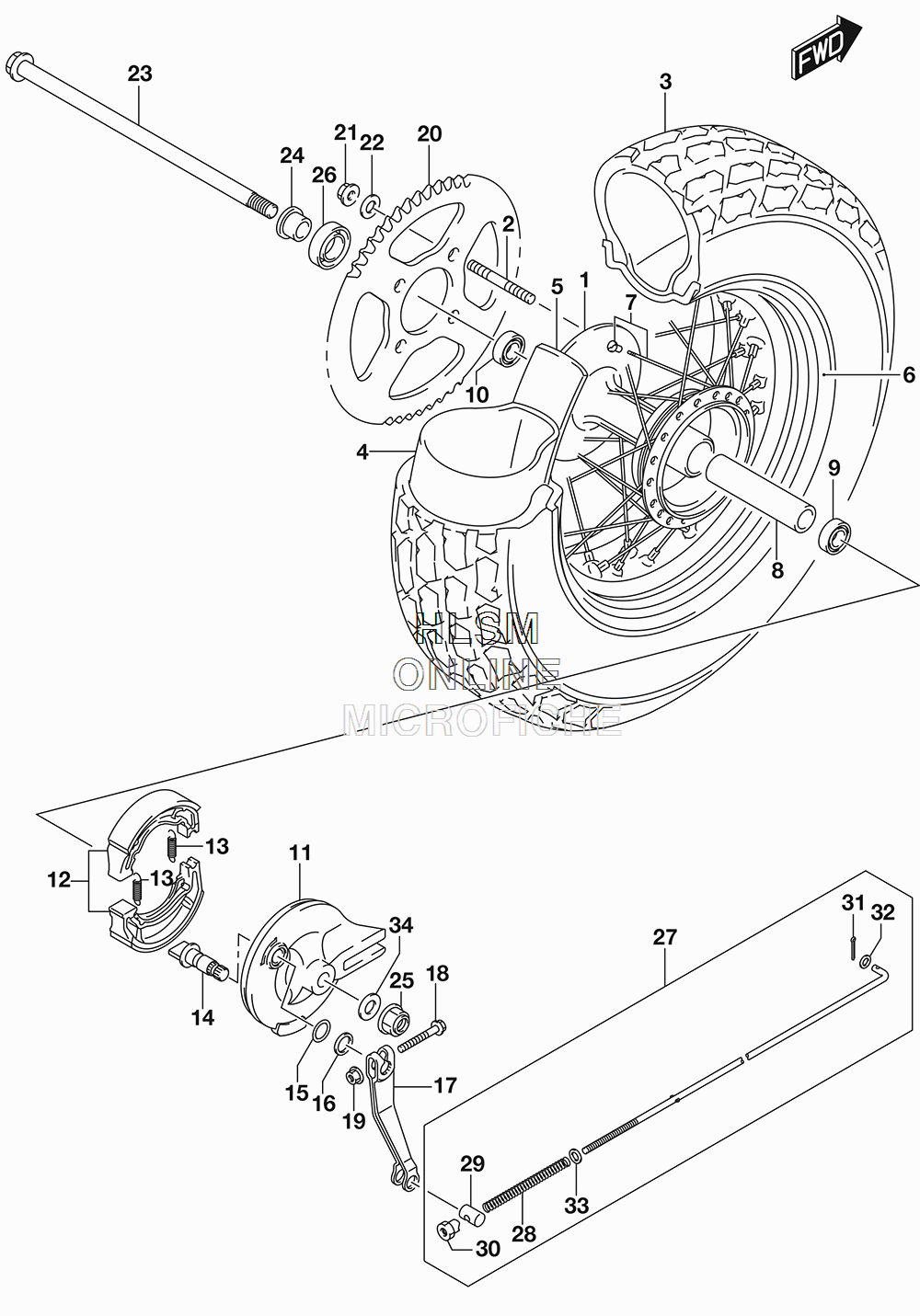

WHEEL - REAR для Suzuki VANVAN200 [RV200VV] - 2017 года выпуска
-
№АртикулНазвание
-
164110-13G00 HUB, REAR WHEELHUB, REAR WHEEL
-
209108-10061 ...STUD BOLT...STUD BOLT
-
365110-13G10 TIRE, REAR (180/80-14M/C 78P) (K180J DUNLOP)TIRE, REAR (180/80-14M/C 78P) (K180J DUNLOP)
-
465200-13G00 TUBE ASSY, WHEEL INNERTUBE ASSY, WHEEL INNER
-
565261-13G00 PROTECTOR, WHEEL INNER TUBEPROTECTOR, WHEEL INNER TUBE
-
665311-13G00 RIM, REAR WHEEL (14M/CXMT4.50)RIM, REAR WHEEL (14M/CXMT4.50)
-
765320-13G00 SPOKE SET, REAR WHEELSPOKE SET, REAR WHEEL
-
864731-13G00 SPACER, REAR HUB BEARINGSPACER, REAR HUB BEARING
-
908143-62027 BEARING (RIGHT)BEARING (RIGHT)
-
1008123-63027 BEARING (LEFT)BEARING (LEFT)
-
1164210-13G10 PANEL, REAR BRAKE ANCHORPANEL, REAR BRAKE ANCHOR
-
1254402-35820 SHOE SET, BRAKESHOE SET, BRAKE
-
1309443-07044 SPRINGSPRING
-
1454441-29305 CAM, BRAKECAM, BRAKE
-
1509280-14003 O RING (D:2.4, ID:13.8)O RING (D:2.4, ID:13.8)
-
1609160-14055 WASHER (14.5X22X1.6)WASHER (14.5X22X1.6)
-
1764451-13G10 LEVER, REAR BRAKE CAMLEVER, REAR BRAKE CAM
-
1801550-0635B BOLTBOLT
-
1908316-1006B NUTNUT
-
2064511-13G00 SPROCKET, REAR (NT:46)SPROCKET, REAR (NT:46)
-
2108319-3110A NUTNUT
-
2208322-01107 WASHERWASHER
-
2364711-13G00 AXLE, REARAXLE, REAR
-
2464751-13G10 SPACER, REAR AXLESPACER, REAR AXLE
-
2508319-3114A NUTNUT
-
2609284-24001 OIL SEAL (24X43X6) (LH)OIL SEAL (24X43X6) (LH)
-
2743300-13G30 ROD ASSY, RR BRAKEROD ASSY, RR BRAKE
-
2809440-09004 ...SPRING...SPRING
-
2909209-11002 ...PIN (11X18)...PIN (11X18)
-
3009150-06010 ...NUT...NUT
-
3104111-2020A ...PIN...PIN
-
3208322-0105B ...WASHER (FRONT)...WASHER (FRONT)
-
3308322-0106B ...WASHER (REAR)...WASHER (REAR)
-
3409160-15039 WASHER (15.5X30X3.2)WASHER (15.5X30X3.2)
