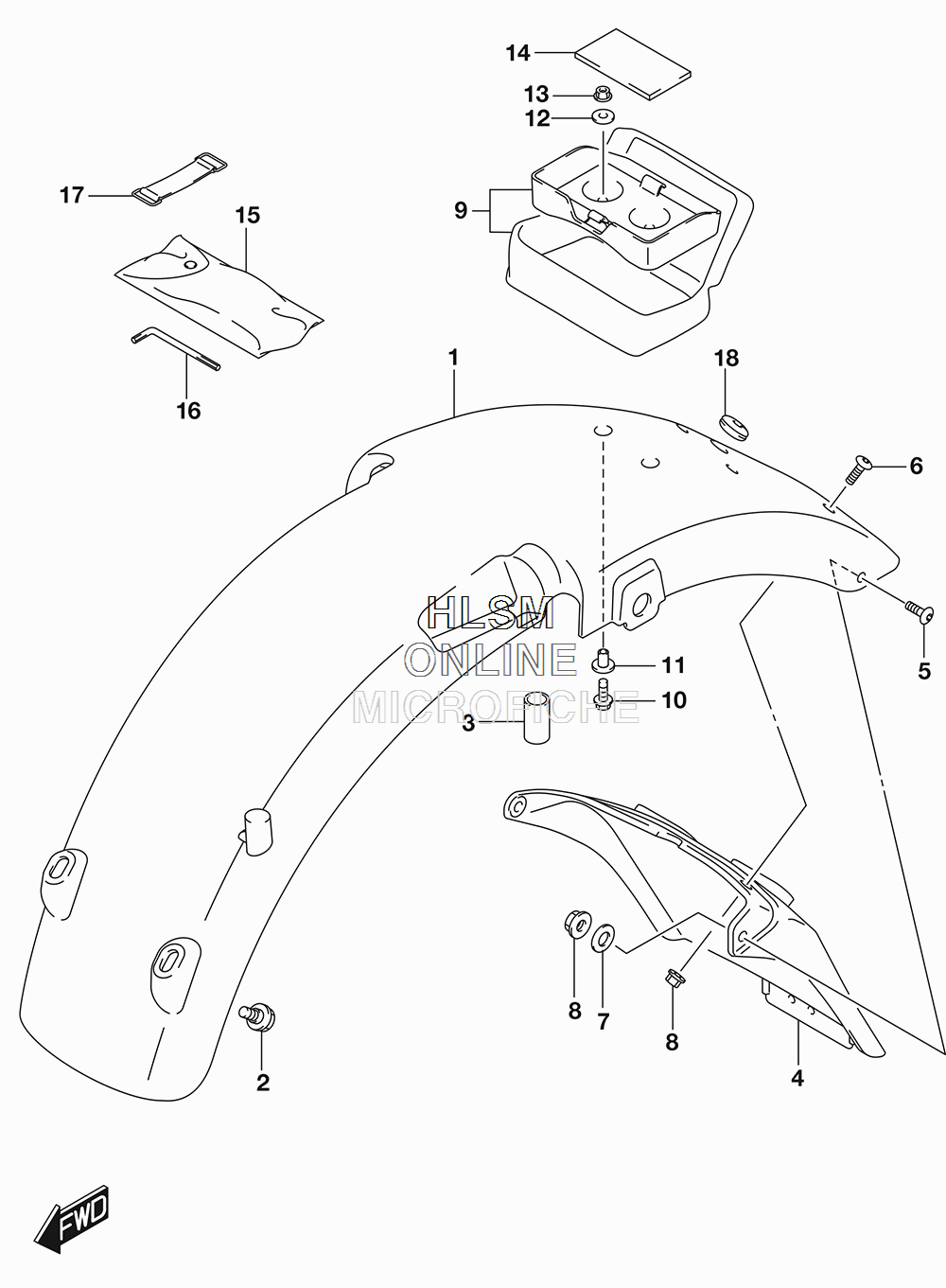

FENDER - REAR для Suzuki VANVAN200 [RV200VV] - 2017 года выпуска
-
№АртикулНазвание
-
1-163111-13G40-019 FENDER, RR (019 - BLACK FOR 019 - BLACK)FENDER, RR (019 - BLACK FOR 019 - BLACK)
-
1-263111-13G40-019 FENDER, RR (019 - BLACK FOR PGZ - GRAY)FENDER, RR (019 - BLACK FOR PGZ - GRAY)
-
1-363111-13G40-30H FENDER, RR (30H - WHITE FOR YSF - BLUE)FENDER, RR (30H - WHITE FOR YSF - BLUE)
-
209111-06107 BOLT (6X12)BOLT (6X12)
-
309251-09005 PLUGPLUG
-
463311-13G10-291 EXTENSION, RR FENDER (291 - BLACK)EXTENSION, RR FENDER (291 - BLACK)
-
509139-06030 SCREW (6X16)SCREW (6X16)
-
609139-06028 SCREW (6X20)SCREW (6X20)
-
709160-06153 WASHER (6.5X16X1.2)WASHER (6.5X16X1.2)
-
808319-3106B NUTNUT
-
994900-13G10 BAG ASSY, SEAT TAILBAG ASSY, SEAT TAIL
-
1001550-0620A BOLTBOLT
-
1109169-06063 WASHERWASHER
-
1209160-06066 WASHER (6.5X20X1.6)WASHER (6.5X20X1.6)
-
1308319-3106A NUTNUT
-
1494915-44E00 CUSHION, REAR BAGCUSHION, REAR BAG
-
1509800-21056 TOOL ASSYTOOL ASSY
-
1609816-00102 SPANNER, HEXAGONSPANNER, HEXAGON
-
1709462-00008 BANDBAND
