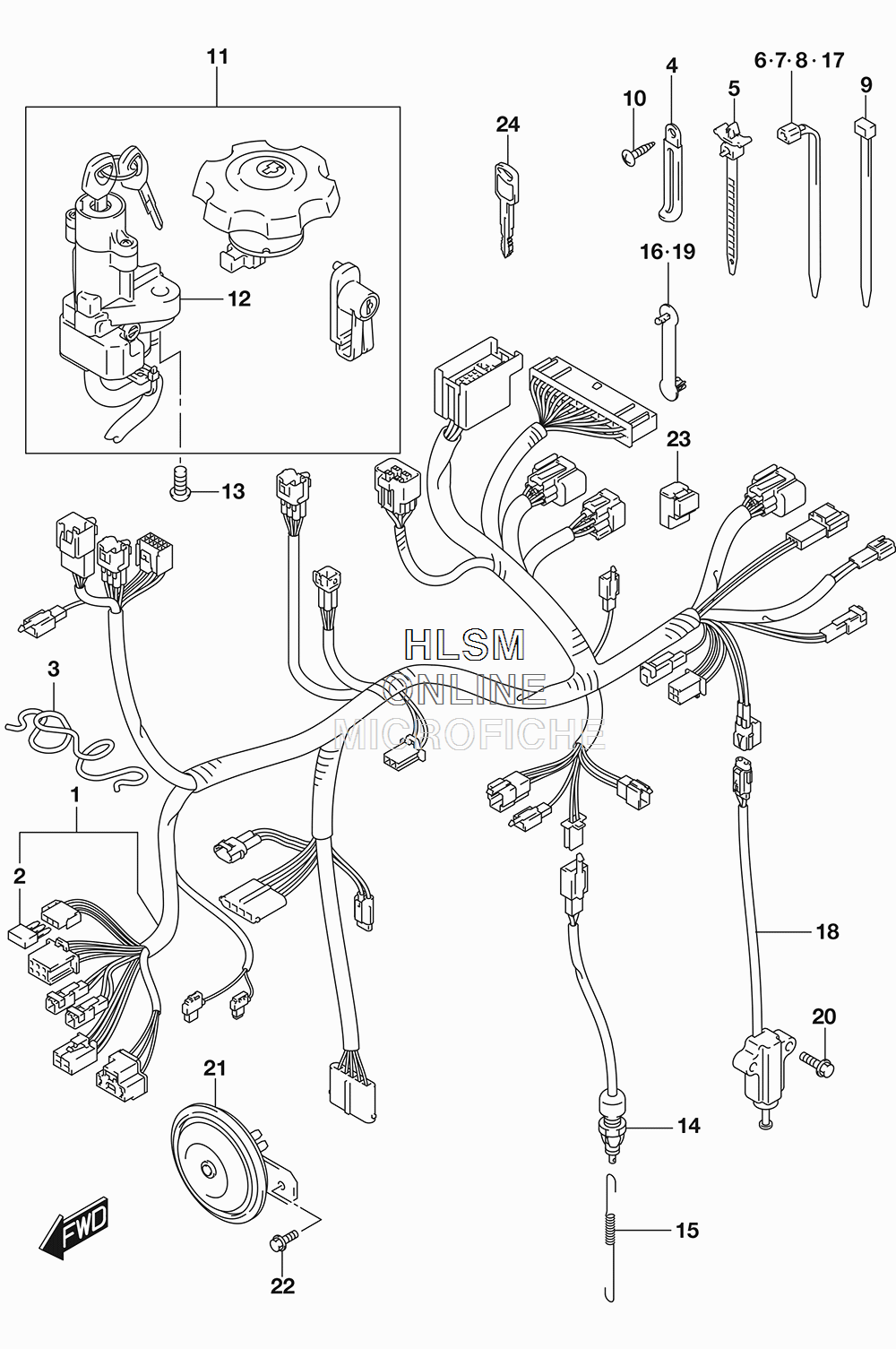

ELECTRICAL - WIRING HARNESS (CANADA) для Suzuki VANVAN200 [RV200VV] - 2017 года выпуска
-
№АртикулНазвание
-
136610-13G70 HARNESS, WIRINGHARNESS, WIRING
-
236611-38A10 ...DIODE...DIODE
-
336619-13G10 GUIDE, WIRING HARNESSGUIDE, WIRING HARNESS
-
409404-06433 CLAMP (L:80)CLAMP (L:80)
-
509407-11402 CLAMP (L:90)CLAMP (L:90)
-
609407-11401 CLAMP (L:95)CLAMP (L:95)
-
709407-14403 CLAMP (L:125)CLAMP (L:125)
-
809407-19401 CLAMP (L:190)CLAMP (L:190)
-
909407-14407 CLAMP (L:145)CLAMP (L:145)
-
1003541-0410B SCREWSCREW
-
1137106-33880 LOCK SETLOCK SET
-
1237100-33EB0 ...LOCK ASSY, STEERING...LOCK ASSY, STEERING
-
1309139-08016 BOLT (8X20)BOLT (8X20)
-
1437740-45D00 SWITCH ASSY, STOP LAMPSWITCH ASSY, STOP LAMP
-
1509443-06011 SPRINGSPRING
-
1609407-03401 CLAMP (L:33)CLAMP (L:33)
-
1709407-14407 CLAMP (L:145)CLAMP (L:145)
-
1837840-35F00 SWITCH ASSY, SIDE STANDSWITCH ASSY, SIDE STAND
-
1909407-03401 CLAMP (L:33)CLAMP (L:33)
-
2001550-0616B BOLTBOLT
-
2138500-13G00 HORN ASSYHORN ASSY
-
2201550-0610A BOLTBOLT
-
2338740-26E00 RELAY ASSYRELAY ASSY
-
2437146-33E00 KEY, BLANK (OPT)KEY, BLANK (OPT)
