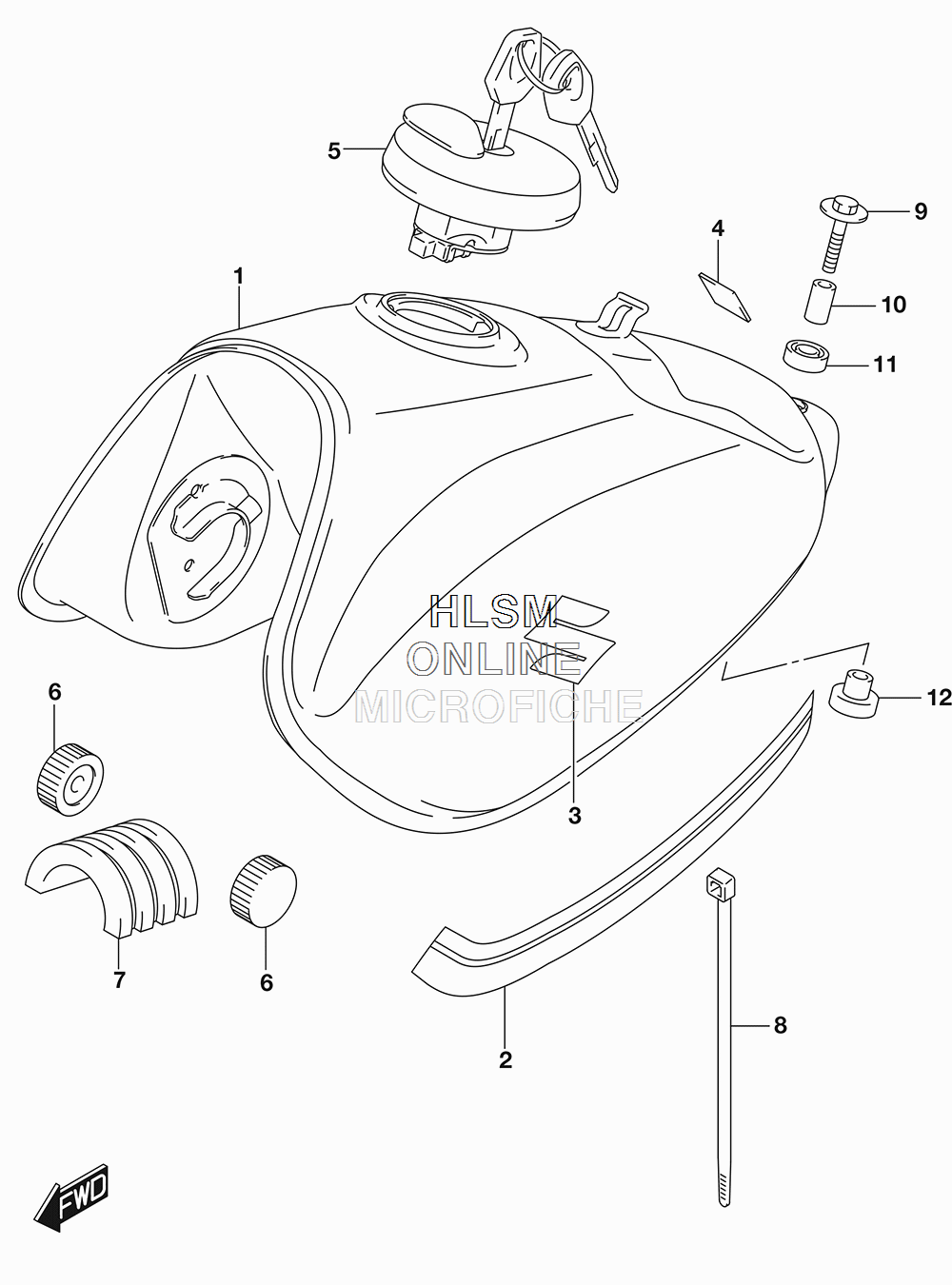

FUEL TANK (CALIF.) (YSF - BLUE / 019 - BLACK) для Suzuki VANVAN200 [RV200VV] - 2017 года выпуска
-
№АртикулНазвание
-
1-144100-13GH0-YSF TANK ASSY, FUEL (FOR YSF - BLUE)TANK ASSY, FUEL (FOR YSF - BLUE)
-
1-244100-13GH0-1BX TANK ASSY, FUEL (1BX - BLACK FOR 019)TANK ASSY, FUEL (1BX - BLACK FOR 019)
-
2-168110-13GD0-BBQ ...TAPE SET (BBQ - WHITE/BLUE FOR REF 1-1 YSF - BLUE)...TAPE SET (BBQ - WHITE/BLUE FOR REF 1-1 YSF - BLUE)
-
2-268110-13GD0-HGU ...TAPE SET (HGU - BLACK/GRAY FOR REF 1-1 1BX - BLACK)...TAPE SET (HGU - BLACK/GRAY FOR REF 1-1 1BX - BLACK)
-
368111-47HA0 EMBLEM, "S"EMBLEM, "S"
-
444572-13G00 FASTENER, TANKFASTENER, TANK
-
544200-41840 CAP SET, FUEL TANKCAP SET, FUEL TANK
-
609329-10016 CUSHIONCUSHION
-
744541-04F00 CUSHION, TANK LOWERCUSHION, TANK LOWER
-
809407-30402 CLAMP (L:300)CLAMP (L:300)
-
909116-06214 BOLT (6X30)BOLT (6X30)
-
1009180-06271 SPACER (6.5X9X18)SPACER (6.5X9X18)
-
1109320-14022 CUSHIONCUSHION
