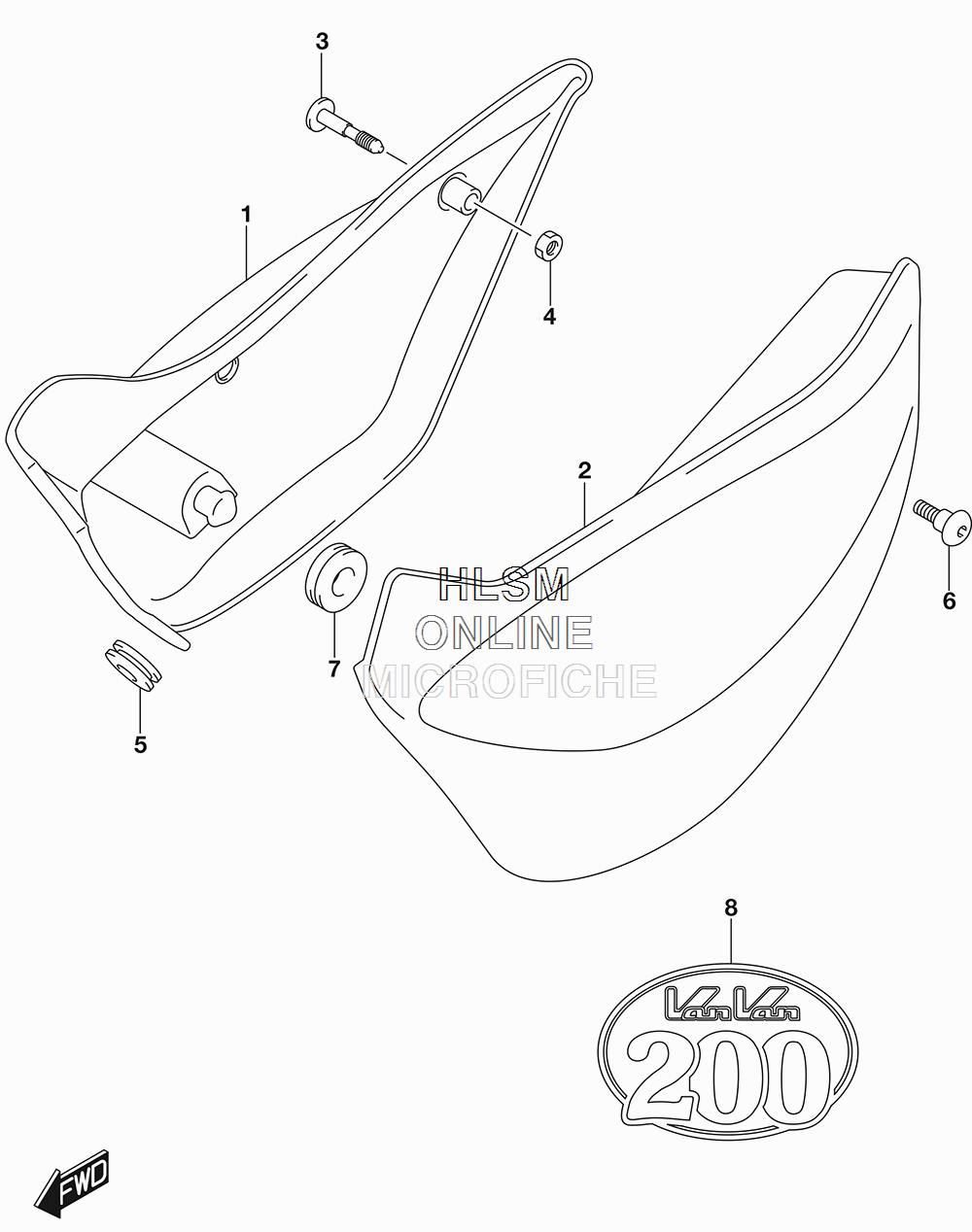

SIDE COVER для Suzuki VANVAN200 [RV200VV] - 2017 года выпуска
-
№АртикулНазвание
-
147111-13G02-019 COVER, FRAME (RH) (019 - BLACK)COVER, FRAME (RH) (019 - BLACK)
-
247211-13G02-019 COVER, FRAME (LH) (019 - BLACK)COVER, FRAME (LH) (019 - BLACK)
-
309139-06123 SCREW (6X33)SCREW (6X33)
-
408310-0006B NUTNUT
-
509320-08013 CUSHIONCUSHION
-
609139-06107 SCREW (6X16)SCREW (6X16)
-
709320-08028 CUSHIONCUSHION
