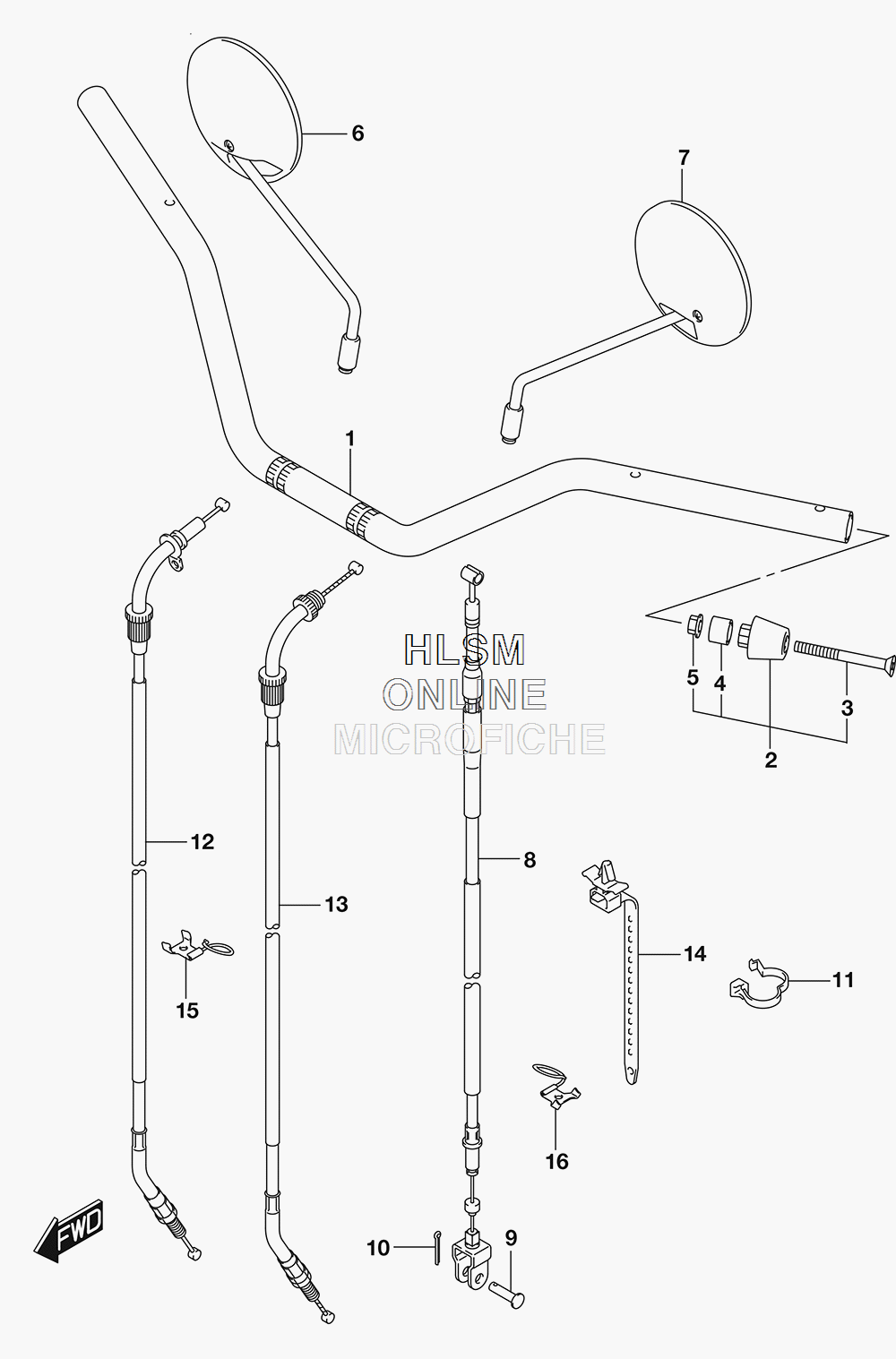

HANDLEBAR для Suzuki VANVAN200 [RV200VV] - 2017 года выпуска
-
№АртикулНазвание
-
156111-13G51 HANDLEBARHANDLEBAR
-
256200-25840 CAP SET, HANDLEBARCAP SET, HANDLEBAR
-
302122-0660B ...SCREW...SCREW
-
456272-04700 ...EXPANDER, BALANCER...EXPANDER, BALANCER
-
509159-06024 ...NUT...NUT
-
656500-25D10 MIRROR ASSY, REAR VIEW (RIGHT)MIRROR ASSY, REAR VIEW (RIGHT)
-
756600-25D10 MIRROR ASSY, REAR VIEW (LEFT)MIRROR ASSY, REAR VIEW (LEFT)
-
858200-13G01 CABLE ASSY, CLUTCHCABLE ASSY, CLUTCH
-
909200-06004 PIN (L:13)PIN (L:13)
-
1004111-2015A PINPIN
-
1109403-15405 CLAMPCLAMP
-
1258300-13G10 CABLE ASSY, THROTTLE NO.1CABLE ASSY, THROTTLE NO.1
-
1358300-13G20 CABLE ASSY, THROTTLE NO.2CABLE ASSY, THROTTLE NO.2
-
1409407-11402 CLAMP (L:90)CLAMP (L:90)
-
1558620-13G02 GUIDE, THROTTLE CABLEGUIDE, THROTTLE CABLE
-
1658620-13G12 GUIDE, CLUTCH CABLEGUIDE, CLUTCH CABLE
