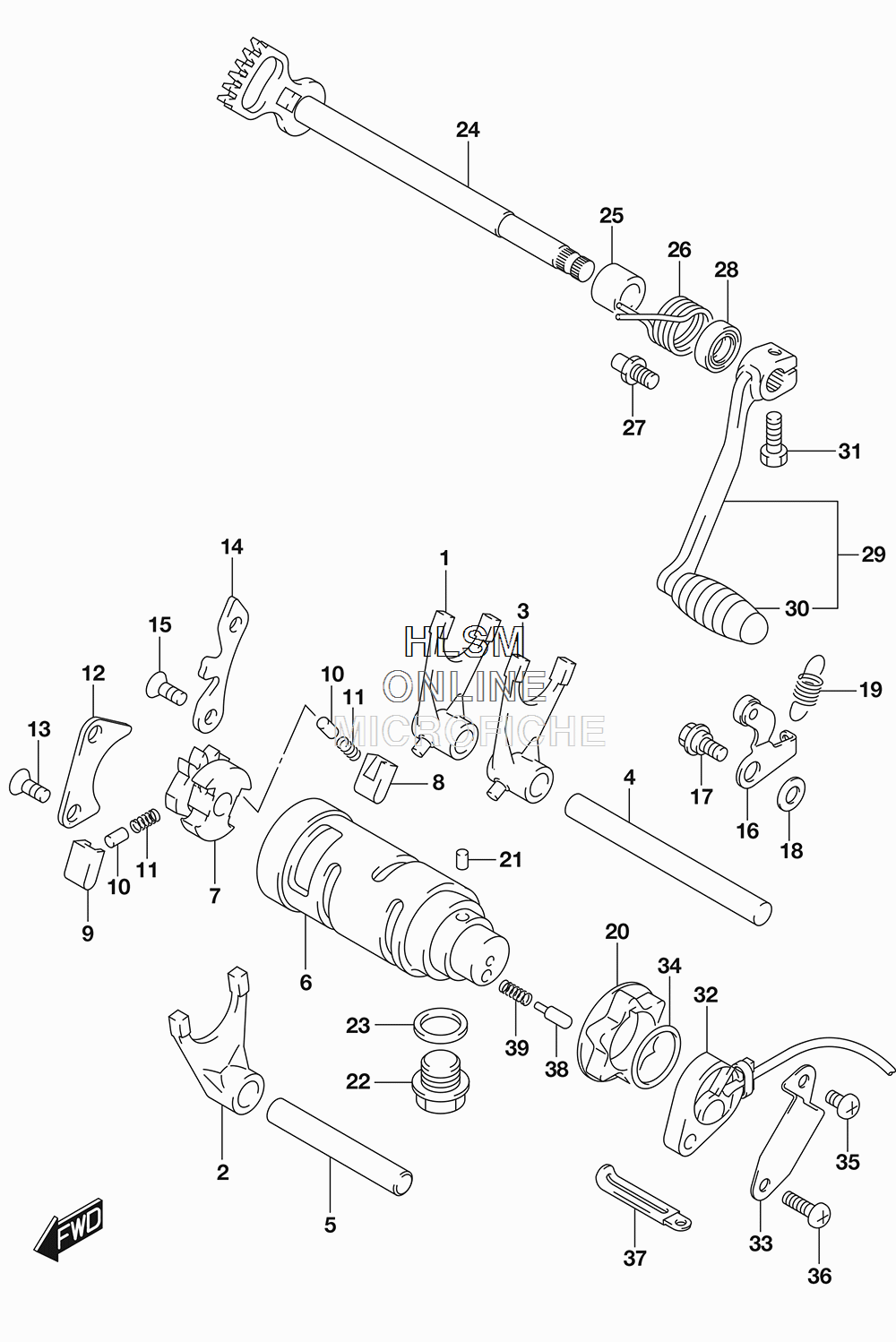

GEAR SHIFTING для Suzuki VANVAN200 [RV200VV] - 2017 года выпуска
-
№АртикулНазвание
-
125211-42A02 FORK, GEAR SHIFT NO.1FORK, GEAR SHIFT NO.1
-
225221-42A02 FORK, GEAR SHIFT NO.2FORK, GEAR SHIFT NO.2
-
325231-42A02 FORK, GEAR SHIFT NO.3FORK, GEAR SHIFT NO.3
-
425411-16701 SHAFT, GEAR SHIFT FORK (L:109)SHAFT, GEAR SHIFT FORK (L:109)
-
525421-35420 SHAFT, GEAR SHIFT FORK NO.2SHAFT, GEAR SHIFT FORK NO.2
-
625310-42A00 CAM, GEAR SHIFTCAM, GEAR SHIFT
-
725322-31310 GEAR, GEAR SHIFT CAM DRIVENGEAR, GEAR SHIFT CAM DRIVEN
-
825323-34201 PAWL, GEAR SHIFT NO.1PAWL, GEAR SHIFT NO.1
-
925324-34201 PAWL, GEAR SHIFT NO.2PAWL, GEAR SHIFT NO.2
-
1009261-05003 PIN (5X8)PIN (5X8)
-
1109440-04003 SPRINGSPRING
-
1225331-30001 LIFTER, GEAR SHIFT POLELIFTER, GEAR SHIFT POLE
-
1309126-06011 SCREW (6X12)SCREW (6X12)
-
1425341-05200 GUIDE, GEAR SHIFT CAMGUIDE, GEAR SHIFT CAM
-
1509126-06011 SCREW (6X12)SCREW (6X12)
-
1625350-42A01 STOPPER, GEAR SHIFT CAMSTOPPER, GEAR SHIFT CAM
-
1709111-06054 BOLT (6X14.6)BOLT (6X14.6)
-
1808211-06141 WASHERWASHER
-
1909443-10036 SPRINGSPRING
-
2025381-04700 PLATE, GEAR SHIFT CAM STOPPERPLATE, GEAR SHIFT CAM STOPPER
-
2104221-04069 PINPIN
-
2209247-14026 PLUG (14X12)PLUG (14X12)
-
2309168-14002 GASKET (13.8X18.8X4.8)GASKET (13.8X18.8X4.8)
-
2425510-05400 SHAFT, GEAR SHIFTSHAFT, GEAR SHIFT
-
2509180-12068 SPACER (12X20X15.3)SPACER (12X20X15.3)
-
2609444-26023 SPRINGSPRING
-
2725671-01011 STOPPER, GEAR SHIFT ARMSTOPPER, GEAR SHIFT ARM
-
2809285-12006 OIL SEAL (12X22X9)OIL SEAL (12X22X9)
-
2925600-13G00 LEVER ASSY, GEAR SHIFTLEVER ASSY, GEAR SHIFT
-
3025652-16500 ...RUBBER, GEAR SHIFT PEDAL...RUBBER, GEAR SHIFT PEDAL
-
3101500-0620A BOLTBOLT
-
3237720-42A30 BASE ASSY, NEUTRAL SW TERMINABASE ASSY, NEUTRAL SW TERMINA
-
3337721-42A00 PROTECTOR, GEAR SHIFT SWPROTECTOR, GEAR SHIFT SW
-
3409280-22001 O RING (D:2.4,ID:21.8)O RING (D:2.4,ID:21.8)
-
3502112-0508A SCREWSCREW
-
3602112-0516A SCREWSCREW
-
3709404-06429 CLAMP (L:45)CLAMP (L:45)
-
3809209-05011 PIN (5X15.5)PIN (5X15.5)
-
3909440-04010 SPRINGSPRING
