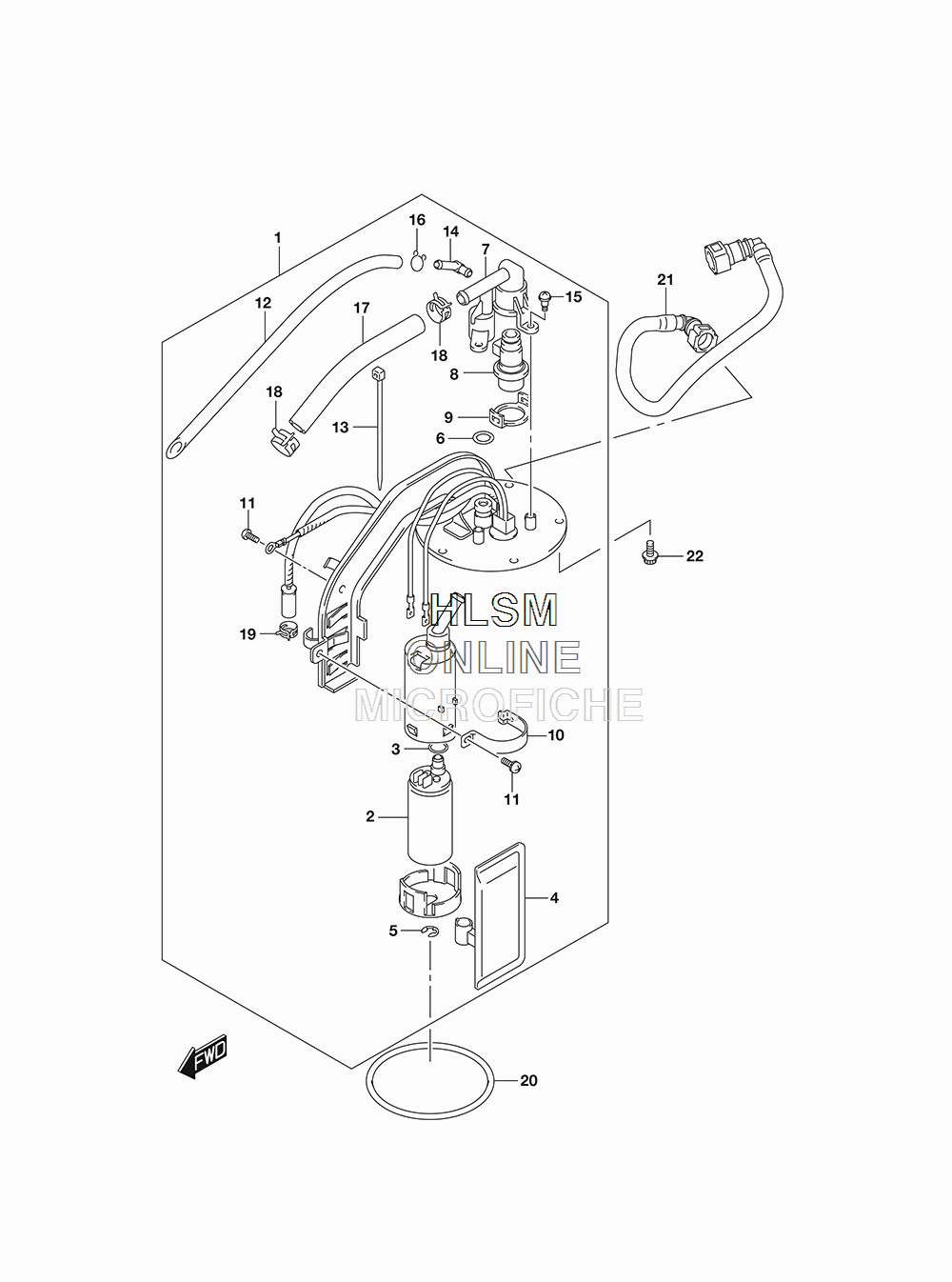

FUEL PUMP для Suzuki TU250X - 2018 года выпуска
-
№АртикулНазвание
-
115100-26GA0 PUMP ASSY, FUELPUMP ASSY, FUEL
-
215110-26GA0 ...PUMP, FUEL...PUMP, FUEL
-
313295-26GA0 ...O RING...O RING
-
415420-26GA0 ...FILTER...FILTER
-
515119-14G00 ...PLATE...PLATE
-
615125-48G00 ...O RING...O RING
-
715131-26GA0 ...ADAPTER...ADAPTER
-
815610-48G00 ...REGULATOR, PRESSURE...REGULATOR, PRESSURE
-
915613-48G00 ...CLIP...CLIP
-
1015426-26GA0 ...BAND...BAND
-
1115116-48G00 ...SCREW...SCREW
-
1213683-26GA0 ...HOSE...HOSE
-
1313432-14G00 ...CLAMP...CLAMP
-
1415614-26GA0 ...JOINT...JOINT
-
1515135-48G00 ...SCREW...SCREW
-
1613693-24F00 ...CLIP...CLIP
-
1713683-26GB0 ...HOSE...HOSE
-
1815135-14G00 ...CLIP...CLIP
-
1915175-48G00 ...CLAMP...CLAMP
-
2015201-35F00 O RING, FUEL PUMPO RING, FUEL PUMP
-
2115810-26GB0 HOSE, FUELHOSE, FUEL
-
2207120-0612A BOLTBOLT
