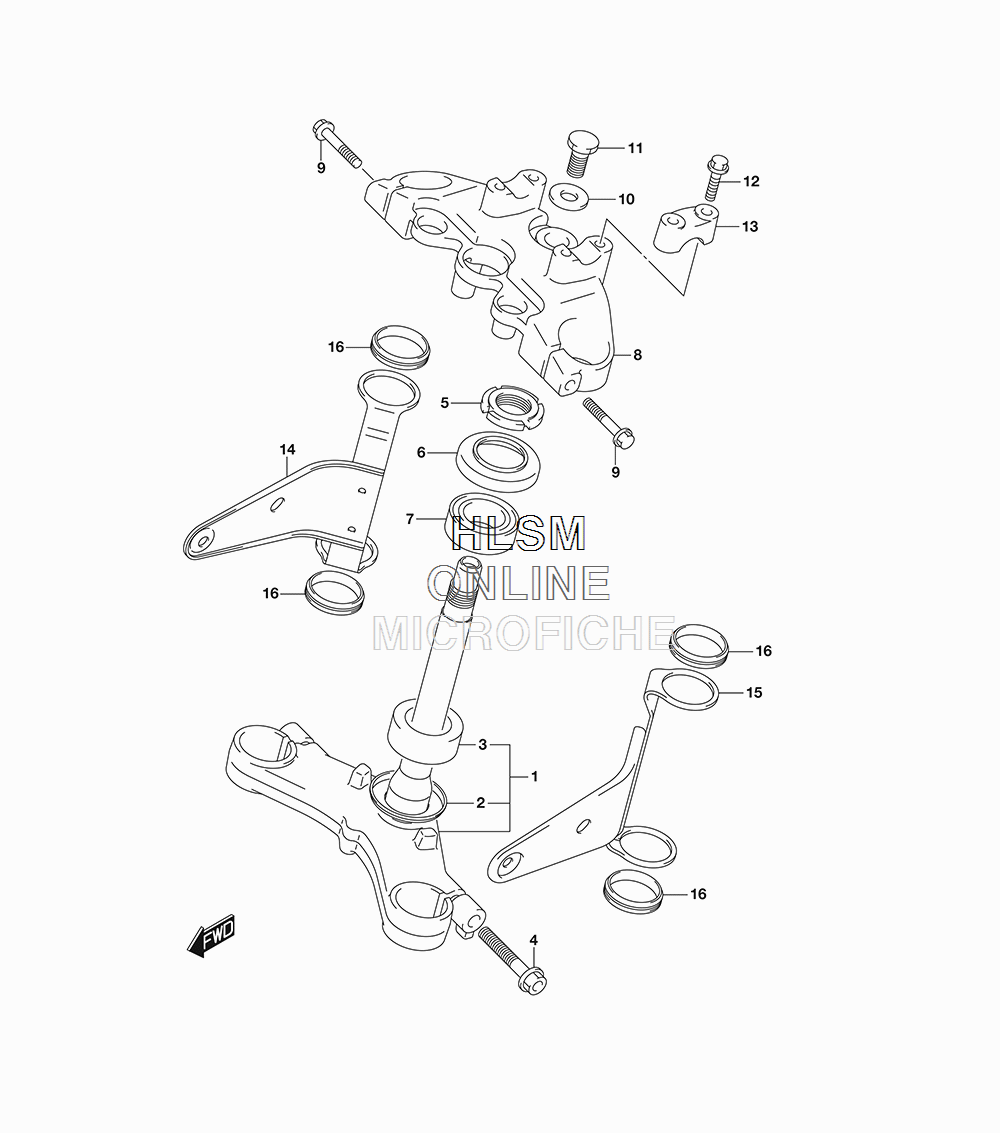

STEERING STEM для Suzuki TU250X - 2018 года выпуска
-
№АртикулНазвание
-
151410-25DC0 STEM, STEERINGSTEM, STEERING
-
251644-12C00 ...SEAL, STEERING LOWER...SEAL, STEERING LOWER
-
309267-30010 ...BEARING (30X55X17)...BEARING (30X55X17)
-
401550-1040B BOLTBOLT
-
551631-28000 NUT, STEERING STEMNUT, STEERING STEM
-
651643-49002 SEAL, STEERING UPPER DUSTSEAL, STEERING UPPER DUST
-
709267-25009 BEARING (25X47X15)BEARING (25X47X15)
-
851311-25D00 HEAD, STEERING STEMHEAD, STEERING STEM
-
901550-0840B BOLTBOLT
-
1051356-43530 WASHERWASHER
-
1151352-43530 BOLTBOLT
-
1201550-0835B BOLTBOLT
-
1356211-27200-291 HOLDER, HANDLE (291 - BLACK)HOLDER, HANDLE (291 - BLACK)
-
1451530-26G50 BRACKET, HEADLAMP (RH)BRACKET, HEADLAMP (RH)
-
1551540-26G50 BRACKET, HEADLAMP (LH)BRACKET, HEADLAMP (LH)
-
1651553-34300 CUSHION, HEADLAMP BRACKETCUSHION, HEADLAMP BRACKET
