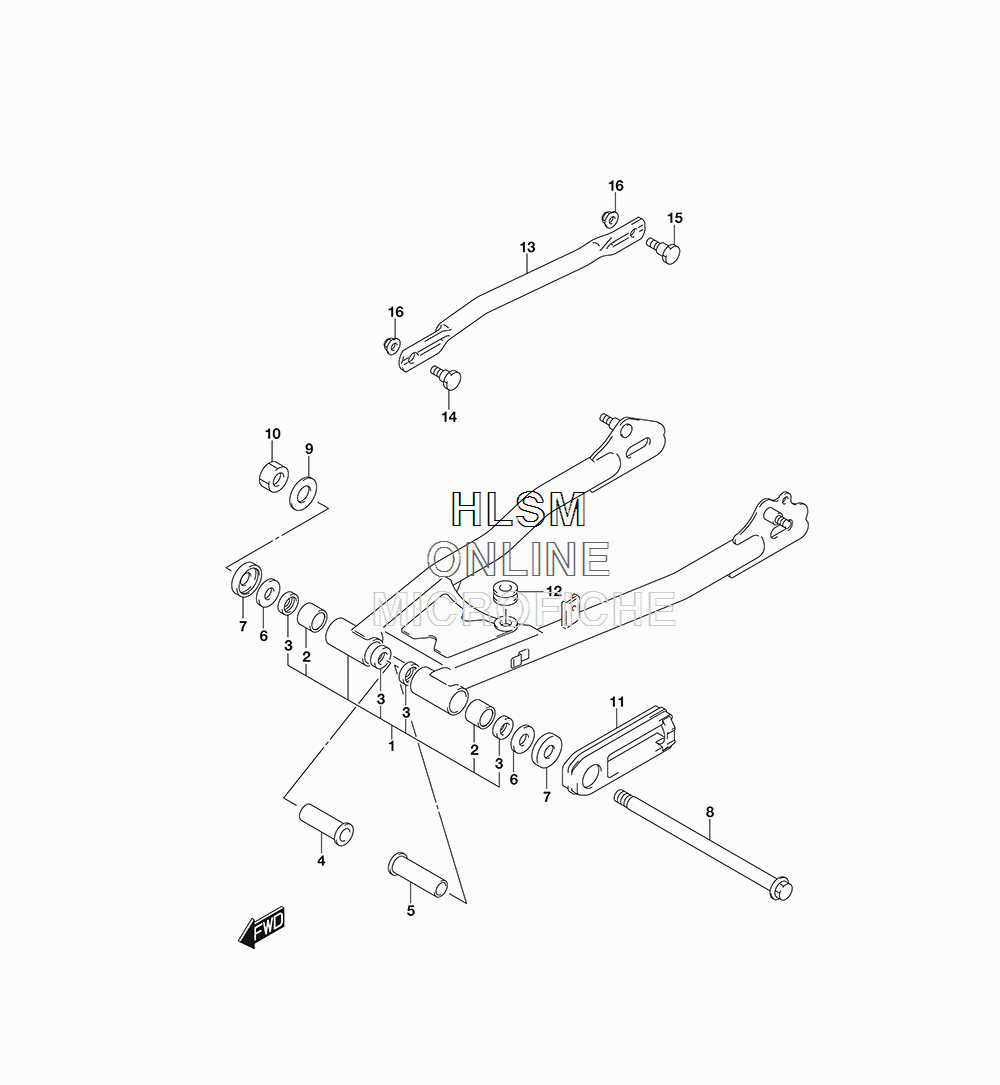

REAR SWINGARM для Suzuki TU250X - 2018 года выпуска
-
№АртикулНазвание
-
161000-25D80-019 SWINGARM ASSY, REAR (019 - BLACK)SWINGARM ASSY, REAR (019 - BLACK)
-
261261-13700 ...BUSH, REAR SWINGARM PIVOT...BUSH, REAR SWINGARM PIVOT
-
309283-20031 ...OIL SEAL (20X27X5)...OIL SEAL (20X27X5)
-
461251-38300 SPACER, SWINGARM PIVOT (RH)SPACER, SWINGARM PIVOT (RH)
-
561252-38300 SPACER, SWINGARM PIVOT (LH)SPACER, SWINGARM PIVOT (LH)
-
608211-15321 WASHERWASHER
-
761262-38300 COVER, SWINGARM PIVOT DUSTCOVER, SWINGARM PIVOT DUST
-
861211-38310 SHAFT, REAR SWINGARM PIVOTSHAFT, REAR SWINGARM PIVOT
-
908322-0114B WASHERWASHER
-
1008319-2114A NUTNUT
-
1161273-25D50 BUFFER, CHAIN TOUCH DEFENSEBUFFER, CHAIN TOUCH DEFENSE
-
1209320-08020 CUSHIONCUSHION
-
1364310-26G00 TORQUELINK, REARTORQUELINK, REAR
-
1409111-08098 BOLT (8X21)BOLT (8X21)
-
1509111-08067 BOLT (8X24)BOLT (8X24)
-
1608319-3108A NUTNUT
