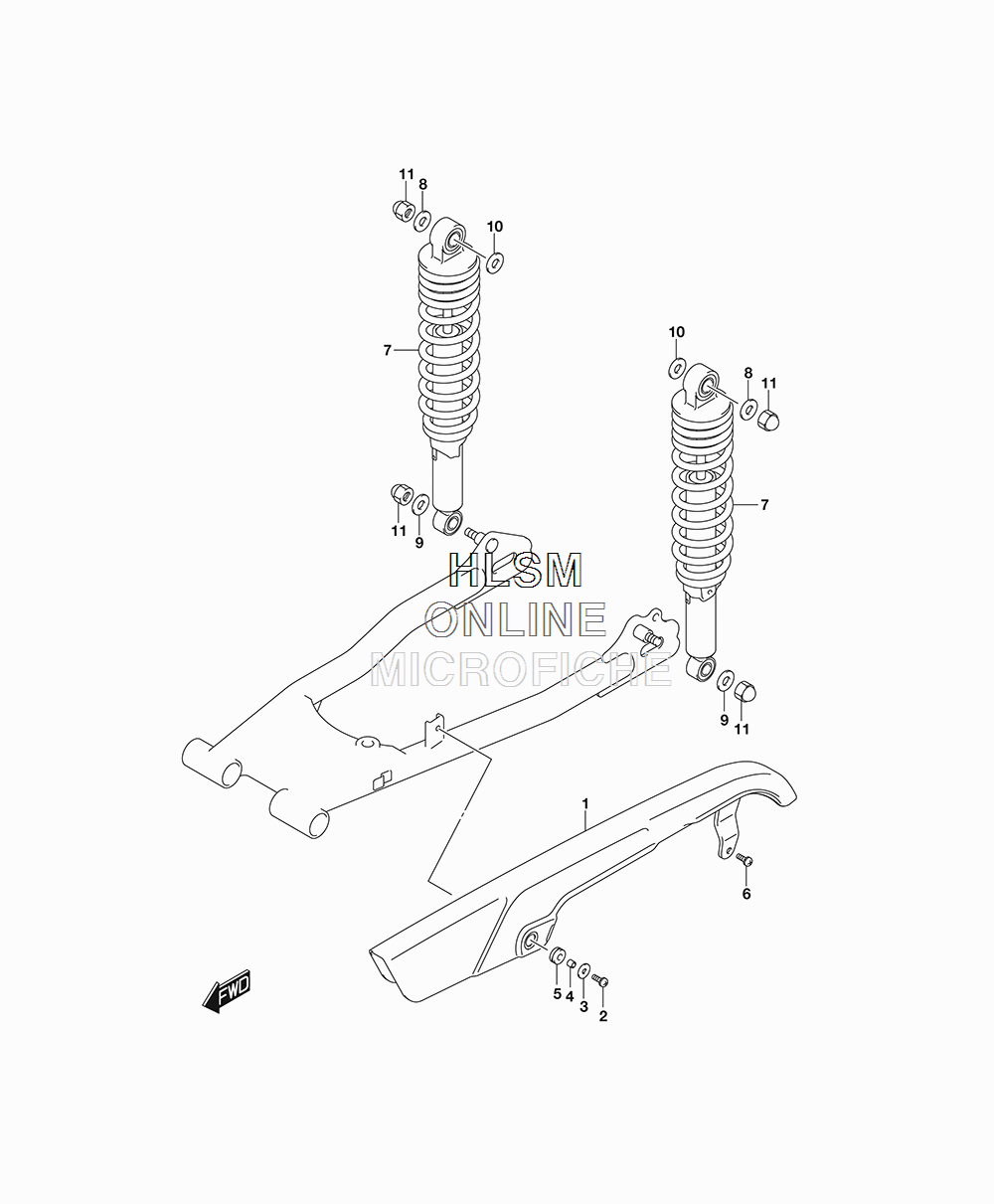

SUSPENSION - SHOCKS REAR W/ CHAIN GUARD для Suzuki TU250X - 2018 года выпуска
-
№АртикулНазвание
-
161310-38300 CASE, CHAINCASE, CHAIN
-
202112-3616B SCREWSCREW
-
309160-06077 WASHER (6.5X20X1.2)WASHER (6.5X20X1.2)
-
409169-06065 WASHERWASHER
-
509320-08021 CUSHIONCUSHION
-
602112-3616B SCREWSCREW
-
762100-26G00 ABSORBER ASSY, REAR SHOCKABSORBER ASSY, REAR SHOCK
-
809160-10093 WASHER (10.5X24X2.3)WASHER (10.5X24X2.3)
-
909160-10093 WASHER (10.5X24X2.3)WASHER (10.5X24X2.3)
-
1009160-12082 WASHER (12.5X24X3.2)WASHER (12.5X24X3.2)
-
1108313-10107 NUTNUT
