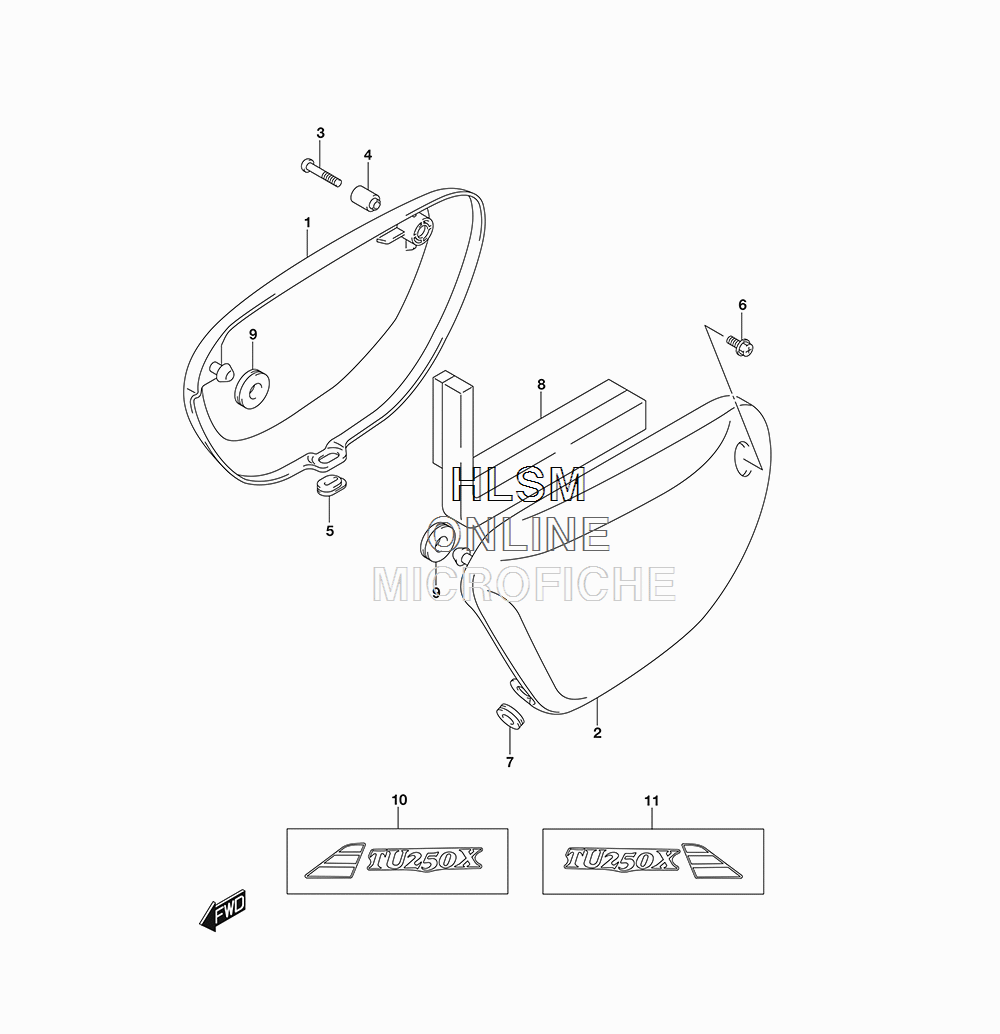

SIDE COVER для Suzuki TU250X - 2018 года выпуска
-
№АртикулНазвание
-
147111-26G10-YVB COVER, FRAME (RH) (YVB - BLACK)COVER, FRAME (RH) (YVB - BLACK)
-
247211-26G11-YVB COVER, FRAME (LH) (YVB - BLACK)COVER, FRAME (LH) (YVB - BLACK)
-
309123-06028 SCREW (6X35.5) (RH)SCREW (6X35.5) (RH)
-
409180-06340 SPACER (6.2X9X23.5) (RH)SPACER (6.2X9X23.5) (RH)
-
509320-03004 CUSHION (RH)CUSHION (RH)
-
609111-06095 BOLT (6X16.5) (LH)BOLT (6X16.5) (LH)
-
709320-08013 CUSHION (LH)CUSHION (LH)
-
847160-26G00 CUSHION, FRAME COVERCUSHION, FRAME COVER
-
909320-08018 CUSHIONCUSHION
-
1068131-26G60-BMT EMBLEM, FRAME COVER (RH) (BMT - WHITE/YELLOW/ORANGE/RED/BLACK)EMBLEM, FRAME COVER (RH) (BMT - WHITE/YELLOW/ORANGE/RED/BLACK)
-
1168141-26G60-BMT EMBLEM, FRAME COVER (LH) (BMT - WHITE/YELLOW/ORANGE/RED/BLACK)EMBLEM, FRAME COVER (LH) (BMT - WHITE/YELLOW/ORANGE/RED/BLACK)
