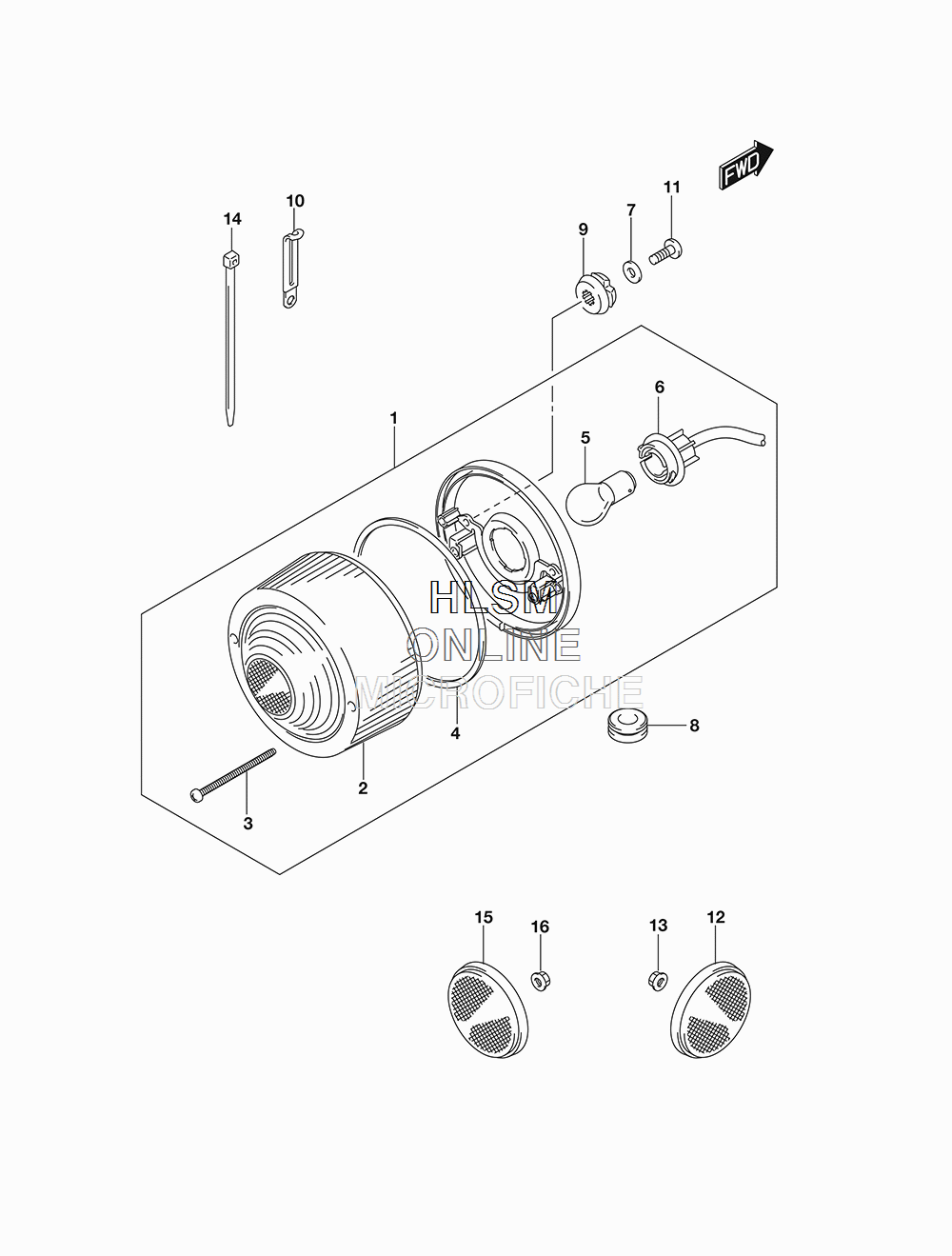

TAILLIGHT/TURN SIGNAL ASSY. для Suzuki TU250X - 2018 года выпуска
-
№АртикулНазвание
-
135710-26G30 LAMP ASSY, REAR COMBINATIONLAMP ASSY, REAR COMBINATION
-
235712-26G30 ...LENS...LENS
-
303211-04556 ...SCREW...SCREW
-
435713-26G00 ...GASKET...GASKET
-
509471-12128 ...BULB (12V,21/5W)...BULB (12V,21/5W)
-
635718-26G00 ...CORD ASSY...CORD ASSY
-
709160-05501 WASHER (5.5X20X1.2)WASHER (5.5X20X1.2)
-
809308-07011 GROMMETGROMMET
-
909320-09010 CUSHIONCUSHION
-
1009404-08205 CLAMP (L:45)CLAMP (L:45)
-
1102142-0525B SCREWSCREW
-
1235970-14A20 REFLECTOR ASSY, REARREFLECTOR ASSY, REAR
-
1308316-1005B NUTNUT
-
1409407-14407 CLAMP (L:145)CLAMP (L:145)
-
1535970-14A20 REFLECTOR ASSY, REARREFLECTOR ASSY, REAR
-
1608316-1005B NUTNUT
