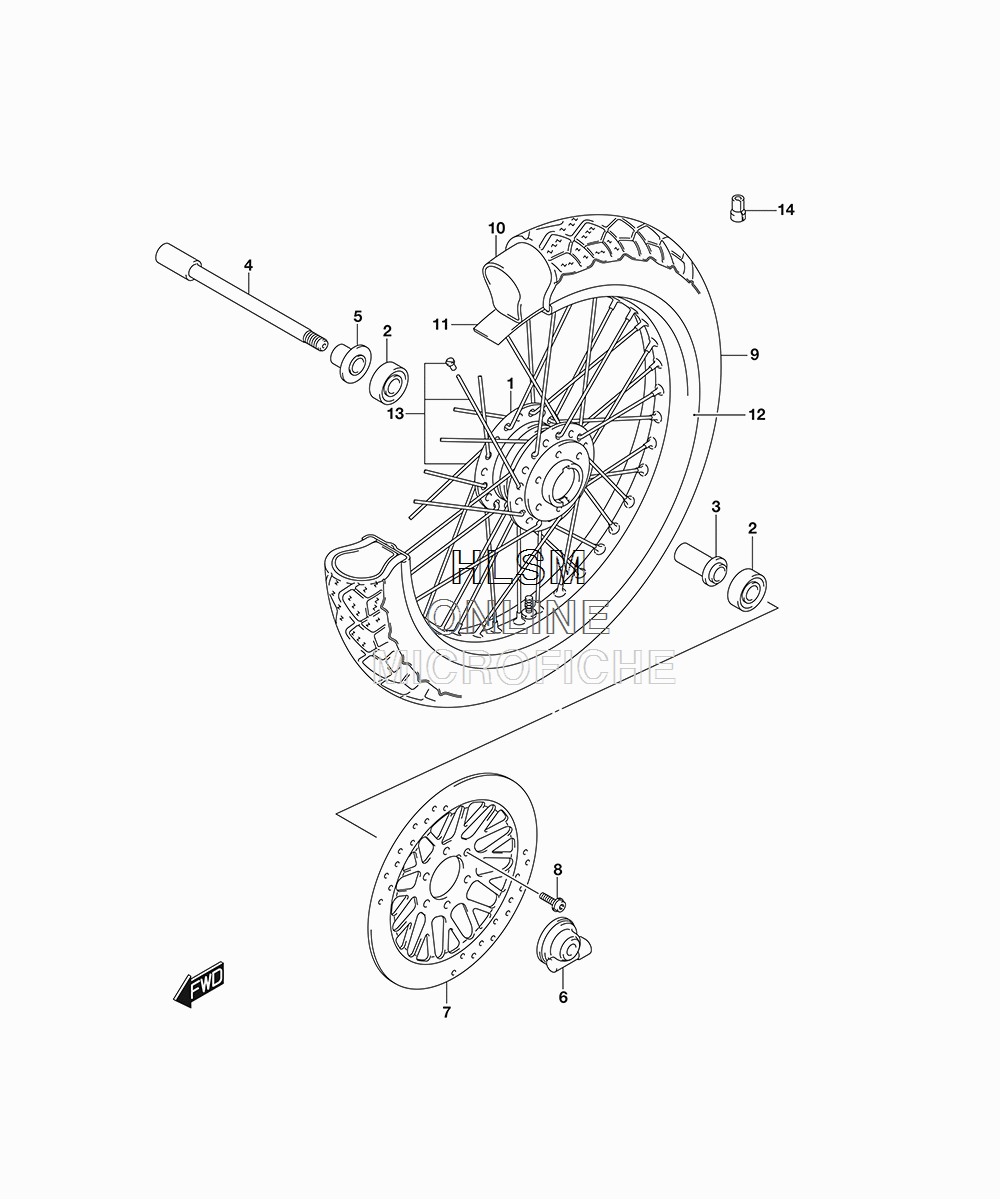

WHEEL - FRONT для Suzuki TU250X - 2018 года выпуска
-
№АртикулНазвание
-
154111-25D30 HUB, FRONT WHEELHUB, FRONT WHEEL
-
208123-63027 BEARINGBEARING
-
354730-18400 SPACER, FR HUB BEARINGSPACER, FR HUB BEARING
-
454711-45C01 AXLE, FRONTAXLE, FRONT
-
554740-18410 SPACER, FRONT AXLE (RH)SPACER, FRONT AXLE (RH)
-
654600-37301 BOX ASSY, SPEEDOMETER GEARBOX ASSY, SPEEDOMETER GEAR
-
759221-26G00 DISC, FRONT BRAKEDISC, FRONT BRAKE
-
809106-08131 BOLT (8X30)BOLT (8X30)
-
955110-26G10 TIRE, FRONT (90/90-18M/C 51S) (C-6009 CHENG SHIN RUBBER)TIRE, FRONT (90/90-18M/C 51S) (C-6009 CHENG SHIN RUBBER)
-
1055200-26G10 TUBE, WHEEL INNERTUBE, WHEEL INNER
-
1155261-26G00 PROTECTOR, WHEEL INNER TUBEPROTECTOR, WHEEL INNER TUBE
-
1255311-25D00 RIM, FR WHEEL (18X1.85)RIM, FR WHEEL (18X1.85)
-
1355320-18420 SPOKE ASSY, FRONTSPOKE ASSY, FRONT
-
14-155411-26G00 BALANCER, 15GBALANCER, 15G
-
14-255413-41F00 BALANCER, 30GBALANCER, 30G
