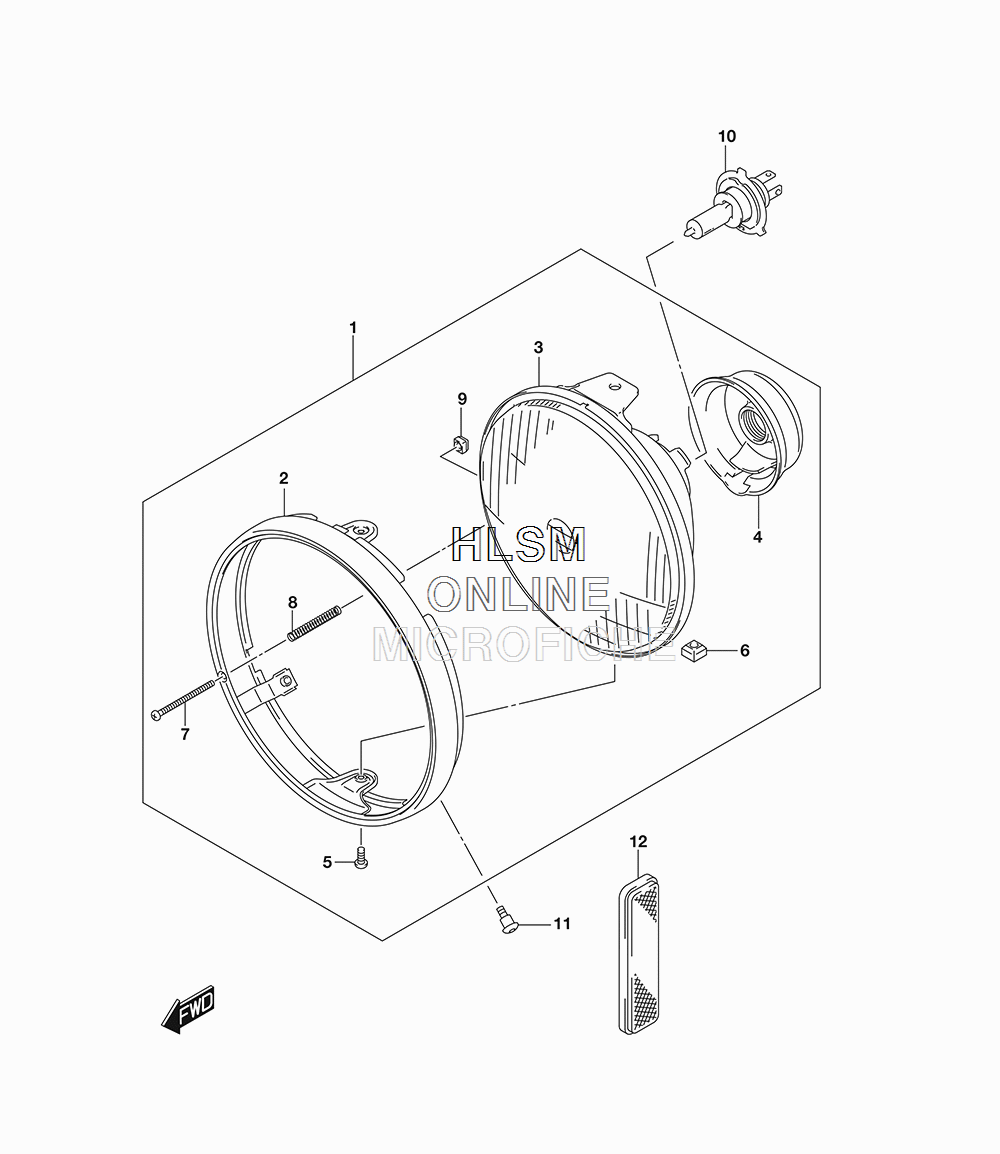

HEADLAMP для Suzuki TU250X - 2018 года выпуска
-
№АртикулНазвание
-
135100-26G00-999 HEADLAMP ASSYHEADLAMP ASSY
-
235111-26G00 ...RIM...RIM
-
335121-26G00 ...UNIT, LAMP...UNIT, LAMP
-
435173-38A00 ...COVER, SOCKET...COVER, SOCKET
-
502112-0510A ...SCREW...SCREW
-
635135-45900 ...NUT...NUT
-
735151-26G00 ...SCREW (4X45)...SCREW (4X45)
-
835154-35300 ...SPRING...SPRING
-
935152-45600 ...NUT...NUT
-
1009471-12060 BULB (12V,60/55W)BULB (12V,60/55W)
-
1109139-05081 SCREW (5X12)SCREW (5X12)
-
1235950-22H10 REFLEX REFLECTOR ASSY, FR SIDEREFLEX REFLECTOR ASSY, FR SIDE
