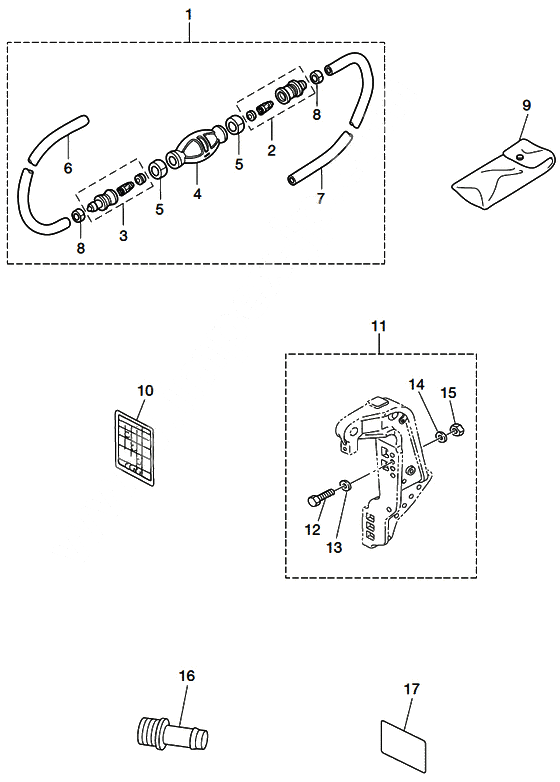

Accessories для Tohatsu MD75C2 - 2012 года выпуска
-
№АртикулНазвание
-
13T1-70200-1 Primer bulb assy
STDPrimer bulb assy
STD -
3FF-70200-4 Primer bulb assyPrimer bulb assy
-
23C7-70220-1 Joint A Ass'y InJoint A Ass'y In
-
33C7-70224-1 Joint A Ass'y OutJoint A Ass'y Out
-
43C7-70211-1 Primer Bulb
STDPrimer Bulb
STD -
43GF-70211-1 Primer bulb low permeation
LOW PERMEATION PARTS / FOR USA MODELPrimer bulb low permeation
LOW PERMEATION PARTS / FOR USA MODEL -
53C7-70217-0 ClampClamp
-
698AB-7-0700 Fuel pipe 7mm/5/16in (1 ea.=1 meter)
STD / 98AB-701000Fuel pipe 7mm/5/16in (1 ea.=1 meter)
STD / 98AB-701000 -
98AB-701000 Fuel pipe 7mm/5/16in (1 ea.=1 meter)Fuel pipe 7mm/5/16in (1 ea.=1 meter)
-
63GF-70241-1 Hose (low permeation)
LOW PERMEATION PARTS / EPA-KRI-15G USAHose (low permeation)
LOW PERMEATION PARTS / EPA-KRI-15G USA -
3GF-70241-0 Hose (low permeation)Hose (low permeation)
-
798AB70160-0 Fuel pipe 7mm/5/16in (1 ea.=1 meter)
STD / 98AB-701000 X2Fuel pipe 7mm/5/16in (1 ea.=1 meter)
STD / 98AB-701000 X2 -
98AB-701000 Fuel pipe 7mm/5/16in (1 ea.=1 meter)Fuel pipe 7mm/5/16in (1 ea.=1 meter)
-
73GF-70240-1 Hose (low permeation)
LOW PERMEATION PARTS / EPA-KRI-15G USAHose (low permeation)
LOW PERMEATION PARTS / EPA-KRI-15G USA -
3GF-70240-0 Hose (low permeation)Hose (low permeation)
-
8332-70201-0 ClampClamp
-
93H6-72100-0 TOOL ASS'YTOOL ASS'Y
-
103T5-72050-0 New partNew part
-
113C8-72120-0 Rigging bolt setRigging bolt set
-
123C7-62133-2 BoltBolt
-
13353-61334-0 WasherWasher
-
14940103-1200 WasherWasher
-
153C7-62139-1 Nut,P1.25Nut,P1.25
-
163T1-72405-0 Hose joint
STDHose joint
STD -
173B7-72042-0 Label, Cil Caution(D)
FOR DOMESTIC MARKETLabel, Cil Caution(D)
FOR DOMESTIC MARKET -
173B7-72043-0 Label, oil caution(x)
FOR EXPORT MARKETLabel, oil caution(x)
FOR EXPORT MARKET
