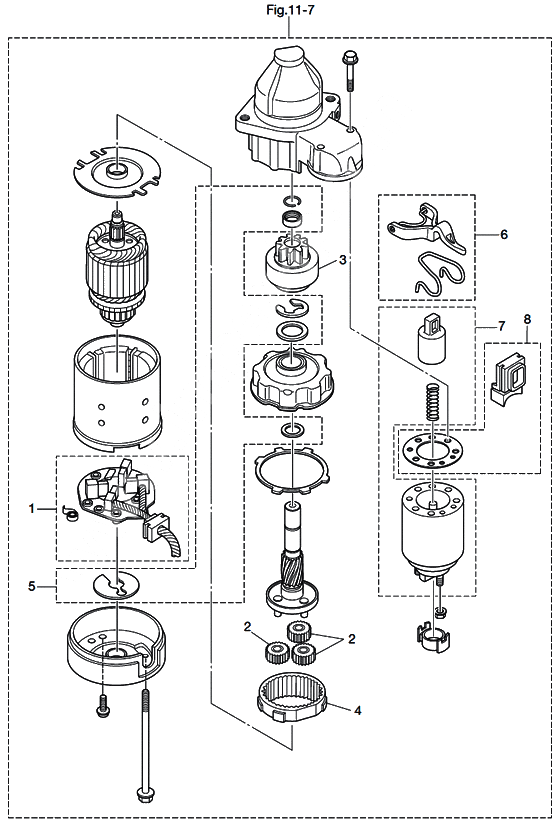

Electric parts (starter motor) (2) для Tohatsu MD75C2 - 2012 года выпуска
-
№АртикулНазвание
-
13FW-76014-0 Brush HolderBrush Holder
-
23FW-76314-0 Internal gearInternal gear
-
33FW-76015-0 Pinion assyPinion assy
-
43FW-76317-0 Planet gearPlanet gear
-
53FW-76318-0 Washer set starterWasher set starter
-
63FW-76320-0 Shift lever setShift lever set
-
73FW-76321-0 Magnetic switchMagnetic switch
-
83FW-76322-0 Dust cover setDust cover set
