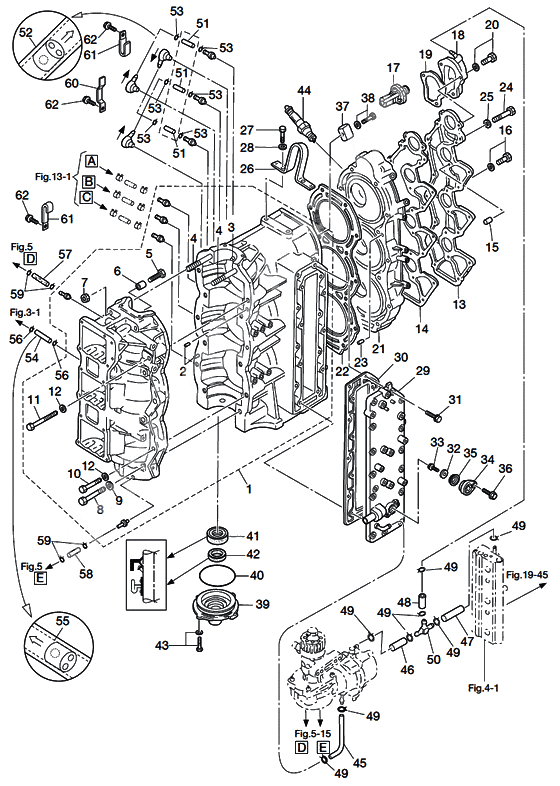

Cylinder & crank case для Tohatsu MD75C2 - 2012 года выпуска

№

Артикул

Название
1

3FWB01100-1 Cylinder crankcase d75/90c2

Cylinder crankcase d75/90c2

320 080 ₽
3FWB01100-0 Cylinder crankcase d75/90c2

Cylinder crankcase d75/90c2

320 080 ₽
2

345-01111-0 Dowel Pin 6-12

Dowel Pin 6-12

170 ₽
3

3T9-00117-0 Knock, Main Bearing

Knock, Main Bearing

800 ₽
4

915324-1065 Stud Bolt

Stud Bolt

490 ₽
5

910103-0618 Bolt
ADVANCER ARM STOPPER

Bolt
ADVANCER ARM STOPPER

230 ₽
6

353-76079-0 Collar 6.2-9-9.3
ADVANCER ARM STOPPER

Collar 6.2-9-9.3
ADVANCER ARM STOPPER

230 ₽
7

931121-1000 Nut

Nut

190 ₽
8

916129-1065 Bolt

Bolt

250 ₽
9

3B7-01116-0 Washer

Washer

140 ₽
10

916124-0850 Bolt

Bolt

450 ₽
11

916124-0865 Bolt

Bolt

200 ₽
12

345-01015-0 Washer

Washer

260 ₽
13

3T9B01021-0 Cover,Cylinder Head

Cover,Cylinder Head

12 930 ₽
14

3T9-01024-0 Gasket,Cylinder Head Cover

Gasket,Cylinder Head Cover

2 330 ₽
15

334-65012-0 Стопор

Стопор

720 ₽
16

910103-5625 Bolt

Bolt

170 ₽
17

3C7-01030-0 New part
PRV 60C

New part
PRV 60C

8 250 ₽
18

3T9B01060-0 Cup, Thermostat
NIPPLE

Cup, Thermostat
NIPPLE

2 330 ₽
19

3T9-01032-1 Gasket thermostat cap

Gasket thermostat cap

520 ₽
20

9101E3-5640 Bolt & washer

Bolt & washer

270 ₽
21

3FWB01091-0 Cylinder head d75c2/d90c2

Cylinder head d75c2/d90c2

38 350 ₽
22

3T9-01005-0 Gasket,Cylinder Head

Gasket,Cylinder Head

3 880 ₽
23

334-65012-0 Стопор

Стопор

720 ₽
24

916129-0875 Bolt

Bolt

210 ₽
25

345-01015-0 Washer

Washer

260 ₽
26

3C7-01513-2 Hanger - when out use 3c7b015131

Hanger - when out use 3c7b015131

2 050 ₽
3C7B01513-0 Hanger - when out use 3c7b015131

Hanger - when out use 3c7b015131

2 010 ₽
27

910114-0820 Bolt

Bolt

140 ₽
28

940103-0800 Washer -> 940113-0800

Washer -> 940113-0800

120 ₽
29

3FWB02300-0 Exhaust cover outer

Exhaust cover outer

10 670 ₽
30

3FW-02305-0 Gasket exhaust cover

Gasket exhaust cover

1 220 ₽
31

9101E3-5625 Bolt & washer

Bolt & washer

200 ₽
32

369-60218-1 New part

New part

500 ₽
33

910103-0616 Bolt

Bolt

140 ₽
34

3FW-01143-0 Anode plug

Anode plug

6 780 ₽
35

3FW-01146-0 Seal ring

Seal ring

1 960 ₽
36

910103-5620 Bolt

Bolt

170 ₽
37

3B7-60218-1 Anode

Anode

1 380 ₽
38

910103-5630 Bolt

Bolt

170 ₽
39

3B7-01291-2 Head l/crank case

Head l/crank case

7 980 ₽
40

171-00053-0 O-Ring

O-Ring

370 ₽
41

3T9-00121-0 Oil Seal,35-58-9

Oil Seal,35-58-9

1 320 ₽
42

3C7-01215-0 Oil Seal, 19.6-35-10

Oil Seal, 19.6-35-10

2 500 ₽
43

910103-5620 Bolt

Bolt

170 ₽
44

9701-1-1111 Spark plug ngk izfr6q (iridium)
NGK

Spark plug ngk izfr6q (iridium)
NGK

4 970 ₽
45

98AB-5-0780 Fuel pipe 5mm (1 ea.=1 meter)
EXHAUST-AIR COMP / 98AB-501000

Fuel pipe 5mm (1 ea.=1 meter)
EXHAUST-AIR COMP / 98AB-501000

0 ₽
98AB-501000 Fuel pipe 5mm (1 ea.=1 meter)

Fuel pipe 5mm (1 ea.=1 meter)

2 330 ₽
46

98AB-5-0065 Fuel pipe 5mm (1 ea.=1 meter)
AIR COMP-T-NIPPLE / 98AB-501000

Fuel pipe 5mm (1 ea.=1 meter)
AIR COMP-T-NIPPLE / 98AB-501000

90 ₽
98AB-501000 Fuel pipe 5mm (1 ea.=1 meter)

Fuel pipe 5mm (1 ea.=1 meter)

2 330 ₽
47

98AB-5-0065 Fuel pipe 5mm (1 ea.=1 meter)
T-NIPPLE-AIR RAIL / 98AB-501000

Fuel pipe 5mm (1 ea.=1 meter)
T-NIPPLE-AIR RAIL / 98AB-501000

90 ₽
98AB-501000 Fuel pipe 5mm (1 ea.=1 meter)

Fuel pipe 5mm (1 ea.=1 meter)

2 330 ₽
48

98AB-5-0115 Fuel pipe 5mm (1 ea.=1 meter)
THERMO CAP-T-NIPPLE / 98AB-501000

Fuel pipe 5mm (1 ea.=1 meter)
THERMO CAP-T-NIPPLE / 98AB-501000

610 ₽
98AB-501000 Fuel pipe 5mm (1 ea.=1 meter)

Fuel pipe 5mm (1 ea.=1 meter)

2 330 ₽
49

338-02215-0 Clip

Clip

140 ₽
50

3T7-01175-0 T-Nipple

T-Nipple

1 010 ₽
51

98AL-4-0185 Lube pipe (1 ea.=1m) must use 393011600m check valve
PASSAGE-CYLINDER / 98AL-401000

Lube pipe (1 ea.=1m) must use 393011600m check valve
PASSAGE-CYLINDER / 98AL-401000

630 ₽
98AL-4-1000 Lube pipe (1 ea.=1m) must use 393011600m check valve

Lube pipe (1 ea.=1m) must use 393011600m check valve

570 ₽
52

393-01160-0 Check Valve
TRANSFER PASSAGE

Check Valve
TRANSFER PASSAGE

1 250 ₽
53

338-01133-0 Clip
TRANSFER PASSAGE

Clip
TRANSFER PASSAGE

140 ₽
54

98AL-4-0240 Lube pipe (1 ea.=1m) must use 393011600m check valve
AIR CHAMBER-C/CASE / 98AL-401000

Lube pipe (1 ea.=1m) must use 393011600m check valve
AIR CHAMBER-C/CASE / 98AL-401000

0 ₽
98AL-4-1000 Lube pipe (1 ea.=1m) must use 393011600m check valve

Lube pipe (1 ea.=1m) must use 393011600m check valve

570 ₽
55

393-01160-0 Check Valve
AIR CHAMBER-C/CASE

Check Valve
AIR CHAMBER-C/CASE

1 250 ₽
56

338-01133-0 Clip
AIR CHAMBER-C/CASE

Clip
AIR CHAMBER-C/CASE

140 ₽
57

99AA-2-0320 Vinyl pipe (1 ea.=1 meter)
AIR COMP-UPPER BEARING / 99AA-201000

Vinyl pipe (1 ea.=1 meter)
AIR COMP-UPPER BEARING / 99AA-201000

170 ₽
99AA-2-1000 Vinyl pipe (1 ea.=1 meter)

Vinyl pipe (1 ea.=1 meter)

1 190 ₽
58

99AA-2-0590 Vinyl pipe (1 ea.=1 meter)
AIR COMP-LOWER BEARING / 99AA-201000

Vinyl pipe (1 ea.=1 meter)
AIR COMP-LOWER BEARING / 99AA-201000

170 ₽
99AA-2-1000 Vinyl pipe (1 ea.=1 meter)

Vinyl pipe (1 ea.=1 meter)

1 190 ₽
59

3B7-09052-0 Clip 6.8
AIR COMP-BEARING

Clip 6.8
AIR COMP-BEARING

200 ₽
369-70098-2 Clip 6.8

Clip 6.8

200 ₽
60

3FW-06972-0 Clamp

Clamp

370 ₽
61

3FY-06972-0 Clamp

Clamp

370 ₽
62

910103-5612 Bolt

Bolt

140 ₽
