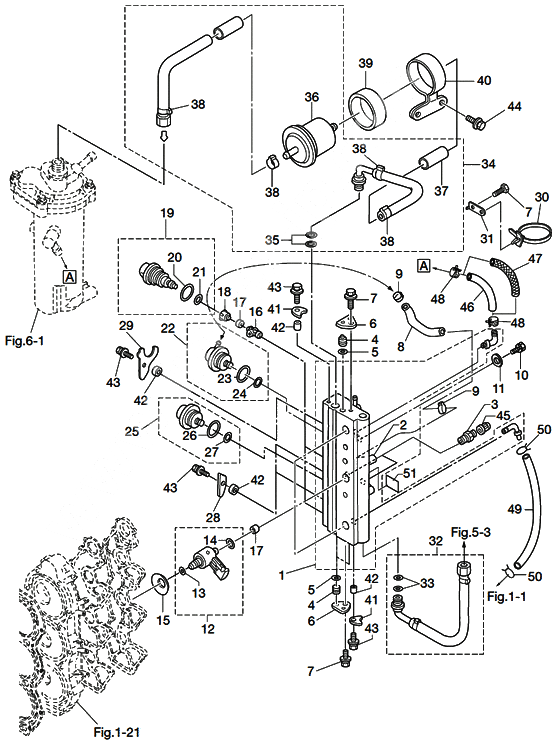

Air rail для Tohatsu MD75C2 - 2012 года выпуска

№

Артикул

Название
1

3FW-10080-0 Air rail assy

Air rail assy

44 990 ₽
2

3T5-10166-0 L-Nipple

L-Nipple

1 040 ₽
3

3T5-10098-0 Valve Ass'y
FUEL & AIR PASSAGE

Valve Ass'y
FUEL & AIR PASSAGE

1 220 ₽
4

3T5-10167-0 Plug , 10.5
WATER & FUEL PASSAGE

Plug , 10.5
WATER & FUEL PASSAGE

340 ₽
5

3T5-10164-1 O-ring,6.8-1.9
WATER & FUEL PASSAGE

O-ring,6.8-1.9
WATER & FUEL PASSAGE

230 ₽
6

3T5-10165-0 Stopper, Plug

Stopper, Plug

170 ₽
7

910103-5612 Bolt
PLUG STOPPER & BAND STAY

Bolt
PLUG STOPPER & BAND STAY

140 ₽
8

98AY-45-105 Air hose
FUEL REGULATOR-AIR RAIL

Air hose
FUEL REGULATOR-AIR RAIL

550 ₽
9

3T5-10091-0 Clamp, 21/32

Clamp, 21/32

820 ₽
10

910103-0865 Bolt

Bolt

270 ₽
11

940103-0800 Washer -> 940113-0800

Washer -> 940113-0800

120 ₽
12

3GF-10310-0 AIR INJECTOR COMPLETE
ORANGE

AIR INJECTOR COMPLETE
ORANGE

26 810 ₽
13

3T5-10317-0 O-Ring

O-Ring

990 ₽
14

3Y9-10311-1 O-ring 2.4-9.5 d40/50/70/90b/115a2
BROWN

O-ring 2.4-9.5 d40/50/70/90b/115a2
BROWN

330 ₽
15

3Y9-10312-0 Set Piece, Air Injector

Set Piece, Air Injector

450 ₽
16

3T5-10314-0 Inserting FuelB Injector

Inserting FuelB Injector

1 990 ₽
17

3T5-10316-0 Seal, Compression
FUEL & AIR INJECTOR

Seal, Compression
FUEL & AIR INJECTOR

220 ₽
18

3T5-10315-0 Adapter, Fuel Injector

Adapter, Fuel Injector

1 990 ₽
19

3T5-10300-0 Fuel Injector
BLUE / MARK 37003

Fuel Injector
BLUE / MARK 37003

18 930 ₽
20

3T5-10304-0 O-Ring

O-Ring

1 180 ₽
21

3T5-10303-0 O-Ring

O-Ring

960 ₽
22

3T5-10148-0 Regulator, Fuel

Regulator, Fuel

8 190 ₽
23

3T5-10095-0 O-Ring

O-Ring

520 ₽
24

3T5-10094-0 O-Ring

O-Ring

430 ₽
25

3GF-10090-0 Regulator air d40/50b2d75/90c2/115a2 (orange)
650KPA

Regulator air d40/50b2d75/90c2/115a2 (orange)
650KPA

13 550 ₽
26

3T5-10095-0 O-Ring

O-Ring

520 ₽
27

3T5-10094-0 O-Ring

O-Ring

430 ₽
28

3T5-10302-0 Plate, Fuel Injector
#2 #3 FUEL INJECTOR

Plate, Fuel Injector
#2 #3 FUEL INJECTOR

200 ₽
29

3Y9-10302-0 Holding Plate
#1 FUEL INJECTOR

Holding Plate
#1 FUEL INJECTOR

1 320 ₽
30

3T1-84398-0 Lead wire band 170 (local purchase)

Lead wire band 170 (local purchase)

210 ₽
31

3T1-76174-0 Stay lead wire band

Stay lead wire band

410 ₽
32

3FW-10088-0 Air hose assy
AIR COMP-AIR RAIL

Air hose assy
AIR COMP-AIR RAIL

8 630 ₽
33

3T5-10162-0 O-Ring

O-Ring

190 ₽
34

3FY-10089-0 Fuel hose assy (w/filter) l=543
FFP-AIR RAIL

Fuel hose assy (w/filter) l=543
FFP-AIR RAIL

18 730 ₽
35

3T5-10162-0 O-Ring

O-Ring

190 ₽
36

3T5B10143-0 Fuel Filter

Fuel Filter

9 920 ₽
37

3Y7-06157-0 Protector l=210

Protector l=210

280 ₽
38

3T5-10086-0 Clamp 21/32

Clamp 21/32

660 ₽
39

3T5-10145-0 Rubber, Fuel Filter

Rubber, Fuel Filter

400 ₽
40

3FW-10144-0 Fuel filter band

Fuel filter band

1 750 ₽
41

3T5-10169-0 Plate, Nipple

Plate, Nipple

170 ₽
42

3T5-10153-0 Collar, 6.7-12.7-3
AIR RAIL / FUEL INJECTOR

Collar, 6.7-12.7-3
AIR RAIL / FUEL INJECTOR

360 ₽
43

910103-5616 Bolt
AIR RAIL / FUEL INJECTOR

Bolt
AIR RAIL / FUEL INJECTOR

140 ₽
44

910103-5616 Bolt

Bolt

140 ₽
45

3T5-10099-0 Cap, Valve

Cap, Valve

200 ₽
46

98AB-5-0770 Fuel pipe 5mm (1 ea.=1 meter)
AIR RAIL-FFP / STD 98AB-501000

Fuel pipe 5mm (1 ea.=1 meter)
AIR RAIL-FFP / STD 98AB-501000

0 ₽
98AB-501000 Fuel pipe 5mm (1 ea.=1 meter)

Fuel pipe 5mm (1 ea.=1 meter)

2 330 ₽
47

3FZ-02165-1 Hose low permeation
LOW PERMEATION PARTS / EPA-KRI-15G USA

Hose low permeation
LOW PERMEATION PARTS / EPA-KRI-15G USA

4 140 ₽
48

3AB-35143-0 Clip @ 9.5
AIR RAIL-FFP

Clip @ 9.5
AIR RAIL-FFP

250 ₽
49

98AB-5-0230 Fuel pipe 5mm (1 ea.=1 meter)
AIR RAIL-CYLINDER / 98AB-501000

Fuel pipe 5mm (1 ea.=1 meter)
AIR RAIL-CYLINDER / 98AB-501000

190 ₽
98AB-501000 Fuel pipe 5mm (1 ea.=1 meter)

Fuel pipe 5mm (1 ea.=1 meter)

2 330 ₽
50

338-02215-0 Clip
AIR RAIL-CYLINDER

Clip
AIR RAIL-CYLINDER

140 ₽
51

3T5-72196-0 Lavel, Air Reil

Lavel, Air Reil

200 ₽
