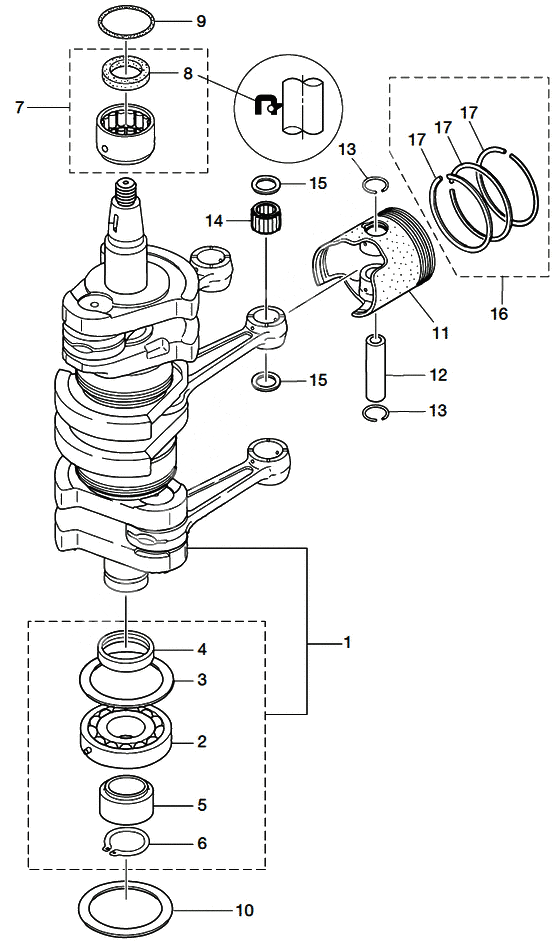

Piston & crank shaft для Tohatsu MD75C2 - 2012 года выпуска
-
№АртикулНазвание
-
13FW-00030-1 Crankshaft assy d75/90c2Crankshaft assy d75/90c2
-
23FW-00118-0 Bearing
LOWERBearing
LOWER -
33B7-00115-0 WasherWasher
-
43B7-00116-0 Spacer, 40-52-7Spacer, 40-52-7
-
53T7-00119-0 Spacer, 35-48.6-16Spacer, 35-48.6-16
-
6945107-3500 C-RingC-Ring
-
73T5-00113-0 Main Bearing Upper
UPPERMain Bearing Upper
UPPER -
83T5-00121-0 Oil Seal 36-46-6Oil Seal 36-46-6
-
9353-00108-0 O-RingO-Ring
-
103B7-00115-0 WasherWasher
-
113FW-00001-1 Piston (std) d75/90c2
STDPiston (std) d75/90c2
STD -
113FW-00004-1 Piston (0.5 o/z) d75/902
OPTPiston (0.5 o/z) d75/902
OPT -
123T1-00021-1 Piston PinPiston Pin
-
3T1-00021-0 Piston PinPiston Pin
-
133T1-00024-0 Clip piston pinClip piston pin
-
143T1-00042-0 Needle bearing 23-28-28Needle bearing 23-28-28
-
153T1-00046-0 Washer small end bearingWasher small end bearing
-
163FW-87123-0 Piston ring set std
STDPiston ring set std
STD -
163FW-87124-0 Piston ring set (0.5 o/z)
OPTPiston ring set (0.5 o/z)
OPT -
173B7-00011-0 1-е поршневое кольцо
STD1-е поршневое кольцо
STD -
173B7-00014-0 1-е поршневое кольцо
OPT1-е поршневое кольцо
OPT
