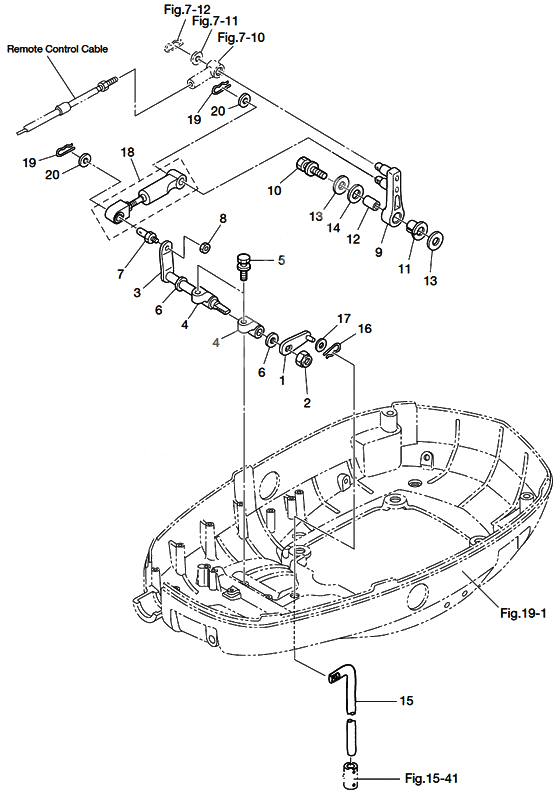

Shift для Tohatsu MD75C2 - 2012 года выпуска
-
№АртикулНазвание
-
13Y9-66225-0 Shift Rod LeverShift Rod Lever
-
2930403-1000 Nylon NutNylon Nut
-
33T9-66225-0 Shift Lever ShaftShift Lever Shaft
-
4353-66145-1 Holder shift lever shaftHolder shift lever shaft
-
53T1-60108-0 Bolt 8-25 pre-coatedBolt 8-25 pre-coated
-
6332-61315-0 WasherWasher
-
7353-83728-1 Cable PinCable Pin
-
8930103-0600 NutNut
-
93B7-66122-2 Shift ArmShift Arm
-
3B7-66122-0 Shift ArmShift Arm
-
10910103-5835 Bolt & washerBolt & washer
-
9101E3-5835 Bolt & washerBolt & washer
-
113B7-63713-0 BushingBushing
-
123B7-63732-1 CollarCollar
-
3B7-63732-0 CollarCollar
-
133B7-63730-0 WasherWasher
-
143B7-63731-0 WasherWasher
-
153T9-66215-0 Shift RodShift Rod
-
16951603-0600 R-PinR-Pin
-
173AL-83719-0 WasherWasher
-
183T9-66150-2 Shift assist assyShift assist assy
-
3FW-66148-0 Shift assist assyShift assist assy
-
19951603-0800 R-PinR-Pin
-
203AA-83719-0 WasherWasher
