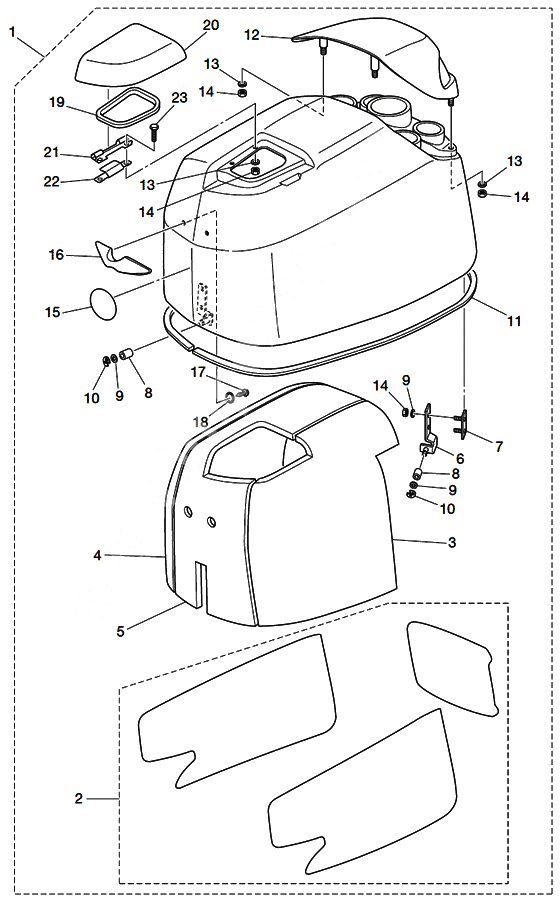

Top cowl для Tohatsu MD75C2 - 2012 года выпуска
-
№АртикулНазвание
-
13FWQ67645-2 Motor cover upper md75c2/90c2 (aqua marine blue)
MOTOR COVER / TOHATSUMotor cover upper md75c2/90c2 (aqua marine blue)
MOTOR COVER / TOHATSU -
3FWQ67645-3 Motor cover upper md75c2/90c2 (aqua marine blue)Motor cover upper md75c2/90c2 (aqua marine blue)
-
13FZQ67645-1 Top cowl assy nsd75c2/90c2 (aqua marine blue)
MOTOR COVER / NISSANTop cowl assy nsd75c2/90c2 (aqua marine blue)
MOTOR COVER / NISSAN -
23FY-87802-1 Decal set md75c2 (tohatsu)
TOHATSU / 75PSDecal set md75c2 (tohatsu)
TOHATSU / 75PS -
3FY-87802-0 Decal set md75c2 (tohatsu)Decal set md75c2 (tohatsu)
-
23GA-87802-0 Decal set nsd75c2 (nissan)
NISSAN / 75PSDecal set nsd75c2 (nissan)
NISSAN / 75PS -
33FW-67602-0 Sound isolation (left)Sound isolation (left)
-
43FW-67603-0 Sound isolation (right)Sound isolation (right)
-
53FW-67604-0 Sound isolation (top)Sound isolation (top)
-
63FW-67513-0 Cover stay (rear)Cover stay (rear)
-
73FW-67516-0 PlatePlate
-
83R0-67517-0 Roller,6.1-14.7-14Roller,6.1-14.7-14
-
9940103-0600 Washer
FILLER LID COVER STAYWasher
FILLER LID COVER STAY -
10945303-0500 E-RingE-Ring
-
113FW-67501-0 Top cowl sealTop cowl seal
-
123T1Q67521-0 Tilt handle (amb)Tilt handle (amb)
-
133C8-66308-0 New part
TILT HANDLE FILLER LIDNew part
TILT HANDLE FILLER LID -
14930403-0600 Nylon Nut
TILT HANDLE FILLER LID COVER STAYNylon Nut
TILT HANDLE FILLER LID COVER STAY -
153GF-67531-0 Front decalFront decal
-
163T1-67660-0 Handle upper motor coverHandle upper motor cover
-
173T5-06437-0 Tapping Screw, 6-16Tapping Screw, 6-16
-
18345-05122-1 Washer rachetWasher rachet
-
193T1-67213-0 Seal motor coverSeal motor cover
-
203T1Q67209-1 Filler lidFiller lid
-
3T1Q67209-0 Filler lidFiller lid
-
213FW-67211-0 Filler lid hingeFiller lid hinge
-
223T1-67212-0 Spring filler lidSpring filler lid
-
23910103-0616 BoltBolt
